Honda Hurricane CBR600F2 1991–1994 Factory Service Manual (P/N 61EN100)

Honda’s June 1993 factory service manual covers model-specific service and repair for the 1991–1994 CBR600F2. Coverage limits: Honda specifies using it with the Common Service Manual, which is not included. Section 1, “General Information,” including its model-identification and general specification material, is absent from this PDF.

Chapter Bookmarks and PDF Readability

Search and diagram detail: The service pages do not support text search. Embedded bookmarks link to the contents and Sections 2–21. Small wire codes and connector labels in the main wiring diagram require zooming.

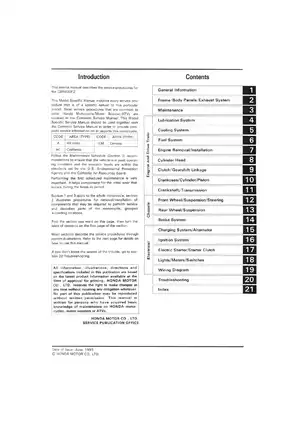

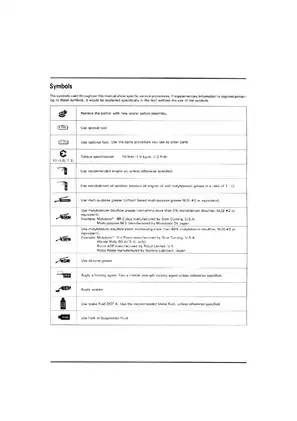

The single printable English PDF contains 197 pages, including five original front-matter pages and one additional preliminary page. Sections 2–21 account for the remaining 191 pages.

Engine, Carburetor and Chassis Service

These selected service topics outline the repair coverage. Other included subjects range from body-panel and exhaust removal to combination-meter servicing.

• Engine repair: Engine removal and installation, cylinder-head and camshaft service, valve-shim selection, crankcase separation, and piston/connecting-rod work.

• Clutch and transmission: Clutch removal and installation, gearshift-linkage and shift-fork service, mainshaft/countershaft disassembly, and bearing-selection charts.

• Carburetors and emissions: Carburetor separation and reassembly, synchronization setup, idle-drop pilot-screw adjustment, and California PAIR valve and EVAP canister removal.

• Lubrication and cooling: Oil-pump and oil-cooler disassembly, coolant draining, thermostat replacement, radiator service, and water-pump work.

• Suspension and steering: Front and rear wheel service, fork disassembly and assembly, steering-stem work, suspension-linkage service, and swingarm bearing replacement.

• Brakes: Front and rear caliper and master-cylinder disassembly, brake-pad replacement, and symptom-based troubleshooting.

• Electrical diagnosis: Charging, ignition and starter troubleshooting charts, component tests, starter-motor disassembly, and a vehicle wiring diagram.

Written for readers who already have basic Honda maintenance knowledge, this manual also calls for special tools and measuring equipment for specific repairs.

Engine Access, Valve Timing and Bearing Selection

The engine-removal guide distinguishes work that can be done in the frame from jobs requiring engine removal, helping plan access and support equipment before a teardown. Cylinder-head, camshaft and clutch service can be performed in-frame; crankshaft and transmission removal require crankcase separation.

Illustrated removal and installation tables are supplemented by step-by-step instructions for work such as camshaft installation and shim-under-bucket valve-clearance adjustment. Main-journal and connecting-rod bearing-selection charts match component codes to replacement bearing colors, with Plastigauge verification specified after new bearings are installed.

Tool information includes the tappet-hole protector, 07HMG-MR70002, and a dimensioned sketch for making an alternative protector from a plastic film container.

An incorrectly oriented cam-chain tensioner gasket can cause excessive oil pressure and premature tensioner wear. The piston section also warns that withdrawing a piston/connecting-rod assembly through the cylinder bottom can trap the expanded oil ring.

Regional Fuel Settings and Suspension Versions

Pilot-screw idle-drop tuning distinguishes 49-state, California and Canada settings, while high-altitude adjustment is limited to U.S. models. Carburetor synchronization includes the model-specific connections and adjusters; the general procedure is referenced to the Common Service Manual.

Fork procedures distinguish the 1991–1993 design from the version used after 1993. Rear-shock removal also differs between these versions, while the shock disassembly section applies to 1991–1993 units. Suspension-linkage and swingarm sections include dedicated bearing-replacement procedures.

Electrical Fault Tracing and System Drawings

Charging and ignition flowcharts distinguish wiring, switch, coil and control-module faults. Starter diagnosis covers the neutral, clutch and side-stand interlocks, allowing a no-crank complaint to be traced through the relevant circuit before component repair is selected.

The Lubrication System Diagram and cooling System Flow Pattern show oil and coolant routing. The ignition Circuit Diagram and main Wiring Diagram support electrical fault tracing. Ignition timing inspection is covered, but the electronically controlled timing is not adjustable.

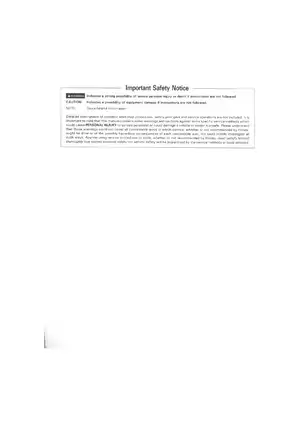

Brake and spring-loaded suspension work carries inherent physical risks. Always review the outlined factory safety guidelines prior to starting any teardown or diagnostic work.

Examples of Charging and Ignition Test Specifications

The ignition-off current-leakage test specifies a maximum of 1.2 mA. Its accompanying illustration identifies the ammeter connection used for this diagnostic check.

For ignition-coil testing, primary resistance is 2.5–3.1 Ω at 20°C/68°F. Secondary resistance measured between the spark-plug caps is 21–25 kΩ at the same temperature, with separate test specifications provided for measurements without the caps.
