1990–2009 Suzuki GS500E Service & Repair Manual (P/N 99500-34069-01E)

The 1990–2009 Suzuki GS500E service manual is Suzuki OEM publication P/N 99500-34069-01E, with a 1990 copyright notice. It combines the base GS500EK workshop chapters with supplements for GS500EL, GS500EM, GS500EN, GS500EP, GS500ER, GS500ES, GS500ET, GS500EV, GS500EW, and GS500EX.

• Engine repair: Covers engine removal, disassembly, and reassembly, including valve-seat machining, cam chain tensioner inspection, crankshaft bearing selection, and counter-balancer servicing.

• Transmission and clutch: Explains gear and shaft inspection, clutch servicing, and starter clutch checks, with exploded and cross-sectional views showing transmission assembly relationships.

• Fuel and lubrication: Details Mikuni carburetor disassembly, float inspection, synchronization, and market-specific jetting, supported by an engine lubrication system chart.

• Electrical diagnosis: Provides charging-system tests, fully transistorized ignition checks, starter motor servicing, and side-stand interlock diagnosis, with market-specific wiring diagrams.

• Chassis service: Covers hydraulic brake bleeding, caliper and master cylinder overhaul, telescopic front fork servicing, steering stem bearings, and rear suspension linkage.

• Maintenance and routing: Includes periodic maintenance schedules, tappet shim selection charts, and wire, cable, and hose routing diagrams for installation and adjustment work.

Written primarily for experienced mechanics, the manual also provides reference material for apprentice and do-it-yourself mechanics.

Engine Inspection and Reassembly

The engine chapters document the Twin Dome Combustion Chamber design and internal inspection procedures. Cylinder bore measurements, valve stem runout checks, and valve-seat machining data support decisions about worn components.

Bearing selection: Crankshaft and crankpin bearing tables connect identification marks with bearing grades, helping you select replacement shells before reassembly. Cam chain tensioners, counter-balancer shafts, and starter clutches receive separate inspection guidance.

Crankcase bolts have a designated numerical tightening sequence. The manual also warns that uneven camshaft journal holder tightening can damage the cylinder head and the holders' thrust surfaces.

Lubrication scope: Oil-pressure testing and the lubrication chart explain the wet-sump system. The oil pump is treated as a complete replacement assembly and must not be dismantled.

Carburetor Service and Market Variations

Mikuni BST33SS service coverage includes needle valves, float height, jet inspection, and carburetor balancing. Regional specification tables distinguish the standard E-01 and California E-33 configurations, alongside other market variants.

The GS500EW supplement adds France E-04 BSR34SS carburetor coverage, including piston valve lift control, solenoid inspection, and throttle position sensor adjustment. These procedures belong to the specified configuration.

Charging, Ignition, and Starting Faults

The electrical section sets out generator output tests, regulator/rectifier checks, and ignition component testing. Starter motor inspection covers brushes, the commutator, and armature checks.

Troubleshooting tables connect symptoms with likely causes and remedies. The France E-04 GS500EW material adds a no-spark diagnostic flowchart and peak-voltage testing, while interlock checks address the side-stand switch, relay, diode, and neutral switch.

Brakes, Suspension, and Routine Upkeep

Brake coverage includes calipers, master cylinders, and hydraulic bleeding. The GS500ET supplement explains the required matching of early and revised front calipers with their corresponding brake discs, helping you avoid ordering incompatible replacement parts.

Front fork overhaul and steering stem bearing procedures sit alongside link-type rear suspension servicing. Rear shock absorber coverage addresses inspection and replacement; it does not describe an internal damper rebuild.

Routine maintenance covers throttle cable play, drive chain inspection, brake fluid replacement, and tappet adjustment through shim replacement. Professional training is highly recommended before carrying out brake repairs or live ignition-system testing.

Selected Engine Fastener, Oil, and Wear Data

These examples are a small selection of the engine service data in the manual. The cold-engine maintenance procedure specifies 35–40 N·m for the eight main cylinder head nuts; the smaller auxiliary nut has a separate specification.

An engine oil change with filter replacement requires 2.9 L. For internal inspection, the intake and exhaust valve stem runout service limit is 0.05 mm, distinguishing a wear limit from a routine adjustment setting.

Bookmarked PDF with Wiring Diagrams

Search, navigation, and diagram detail: PDF text search is not available. Embedded bookmarks provide access to the main chapters and model supplements; small wiring labels and wire-color codes require zooming for comfortable reading.

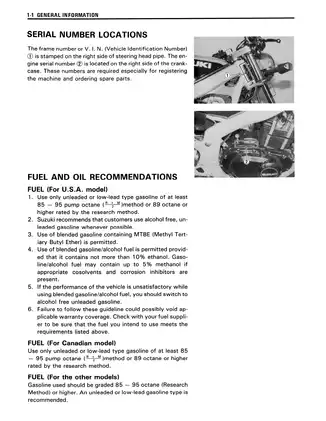

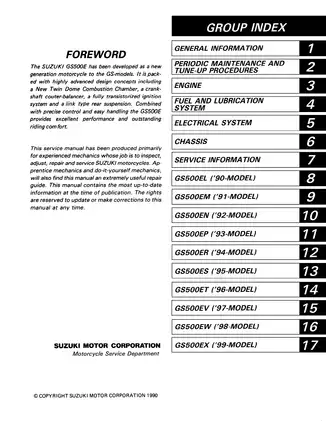

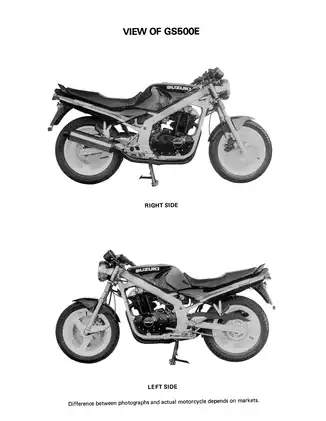

The download contains one printable English PDF with 362 pages: 221 pages of base service chapters, 136 pages of model supplements, and five front/back-matter pages. Those five pages—front cover, foreword/group index, vehicle views, publication imprint, and back cover—are already included in the total.
