Suzuki GS500 Service Manual Set, 1989–2009

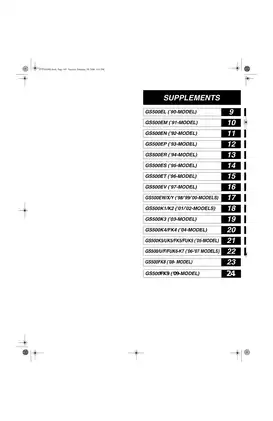

Use the base manual with the applicable model supplements. Later chapters document changes and refer back to earlier sections for procedures they do not repeat.

Coverage limits: The K3 chapter expressly applies to 01E, 01F and 01G, not 03E. The K8 chapter is headed GS500FK8 but also contains naked GS500 specification and carburetor entries. The K9 chapter specifies GS500F configurations and carries forward K8 service data.

PDF Search, Bookmarks, and Page Details

Text search and diagram detail: Most sections support text search, but the GS500EW/X/Y specifications and service-data pages do not. Some illustrated labels and values are also outside the searchable text. Embedded bookmarks cover the core chapters and model supplements. Small wiring labels require zooming.

The ZIP contains one printable English PDF with 468 pages, including 13 blank pages and three front-matter pages. The publication totals above already include these pages.

Engine Overhaul, Carburetor Service, and Electrical Diagnosis

The following is a selection of covered work, rather than a complete contents list. Additional topics include drive-chain inspection and valve-shim selection charts.

• Engine repair: Compression and oil-pressure diagnosis, engine removal and installation, and step-by-step engine disassembly and reassembly.

• Clutch and transmission: Clutch-plate inspection, starter-clutch service, transmission teardown, and checks of gears, shafts, and shift-fork clearances.

• Fuel and emissions: Fuel-tank and fuel-cock service, carburetor disassembly, float-height adjustment, step-by-step carburetor balancing, and EPA and California evaporative-emission information.

• Electrical diagnosis: Charging and ignition tests, starter-motor service, battery checks, and inspection of interlocks, switches, relays, meters, lamps, and the regulator/rectifier.

• Brake service: Front and rear caliper and master-cylinder disassembly, inspection and reassembly, brake-pad replacement, disc checks, and hydraulic-system bleeding.

• Wheels and suspension: Wheel-bearing and tire service, fork disassembly, steering adjustment, swingarm and Full-Floater linkage service, and final suspension checks.

• Factory reference data: Maintenance charts, lubrication diagrams, tightening torques, wear limits, clearances, electrical test values, fluid specifications, special-tool references, regional wiring diagrams, and routing layouts.

Suzuki wrote the manual primarily for experienced mechanics and also identifies apprentice and do-it-yourself mechanics as users; internal engine, brake, suspension, and electrical work requires the relevant workshop skills and equipment.

Engine Inspection and Repair Limits

Top end: Inspection and service procedures cover the cylinder head, valves, guides and seats, camshafts, cam chain, cylinders, pistons, and rings. The engine design includes Suzuki’s New Twin Dome Combustion Chamber and a crankshaft counter-balancer.

Bottom end: Connecting-rod, crankshaft, and counter-balancer bearing-selection information accompanies the teardown material. Oil-pump service is limited to replacement of the pump assembly.

The camshaft-holder cautions explain how uneven loading can damage the cylinder head or holder thrust surfaces. The K5 update also identifies the vulnerable left camshaft journal and documents revised camshaft interchangeability.

Model and Market Updates

Regional differences: The early area-code table distinguishes E-03 U.S., E-28 Canada, E-33 California, and international markets. Later P-code tables and wiring sheets separate market and naked/faired configurations, allowing the electrical layout and service data to be matched to the applicable version.

K3 and K4/FK4: K3 adds front-brake master-cylinder procedures and revised ignition, regulator/rectifier, combination-meter, and turn-signal checks. K4/FK4 adds a throttle-position-sensor resistance check, lower-crankcase information, GS500F cowling views, and revised fork procedures. F-specific layouts cover the wiring harness, oil-cooler hoses, and front-brake hose.

Later updates: K5 documents camshaft installation and interchangeability. The combined K6–K7 chapter adds starter-button information and regional wiring diagrams. K8 supplies updated specifications, service data, and tightening torques; K9 adds front and rear wheel information.

Brake Compatibility and Workshop References

The GS500ET supplement identifies early and late front-caliper assemblies and their corresponding brake discs. This provides a concrete parts-compatibility reference when planning brake work.

The brake-fluid warnings identify the risk of component damage from mixing silicone- or petroleum-based fluid with the glycol-based system. Gasoline handling, battery and ignition testing, and brake repairs also require the manual’s precautions and appropriate shop isolation practices.

Tools: References include compression gauge 09915-64510 with adapter 09915-63210, carburetor balancer 09913-13121, and valve lifter 09916-14510. Electrical and chassis references include digital ignitor checker 09931-64430 and fork oil-level gauge 09943-74111. The factory tool list marks certain tools as unavailable in the U.S.

Diagrams and fault finding: Examples include the engine lubrication system chart, charging-system diagram, ignition-system circuit, side-stand/ignition-interlock circuit, regional K4/FK4 wiring diagrams, and harness/cable/hose-routing views. Troubleshooting tables address starting problems, engine noise, clutch and shifting faults, carburetion, charging and starter failures, battery faults, steering, suspension, and hydraulic brakes.

A Preview of Charging-System Test Data

The GS500E base chapter specifies charging output of 13.5–15.5 V DC at 5,000 r/min with a fully charged battery and the headlight on high beam.

Its generator no-load specification is more than 75 V AC at 5,000 r/min with the engine cold. Separate generator-output and regulator/rectifier checks support diagnosis of charging faults.
