1994–1997 Kawasaki Ninja ZX-9R ZX900-B1, ZX900-B2, ZX900-B3, ZX900-B4 Service Manual (P/N 99924-1171-04)
322 Pages • 133.27 MB • Instant, Printable PDF
Kawasaki Models Covered & Key Technical Specifications
Models: Ninja ZX-9R ZX900-B1, Ninja ZX-9R ZX900-B2, Ninja ZX-9R ZX900-B3, Ninja ZX-9R ZX900-B4
Model Years: 1994–1997 (1994, 1995, 1996, 1997)
Technical Data:
-
Engine type: 4-stroke, DOHC, 4-cylinder, liquid-cooled
-
Displacement: 899 mL
-
Maximum horsepower: 102 kW (139 PS) @ 10,500 r/min
-
Maximum torque: 96 N-m (70.9 ft-lb) @ 9,000 r/min
-
Transmission: 6-speed, constant mesh, return shift
-
Fuel system: Keihin CVKD40 x 4 carburetors
-
Front tire: 120/70 ZR17
-
Rear tire: 180/55 ZR17
-
Cooling system capacity: 2.4 L (including radiator and engine)
-
Spark plug: NGK CR9EK or ND U27ETR
Kawasaki Manual Features & Content Preview

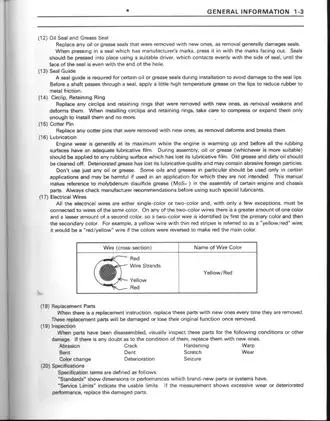

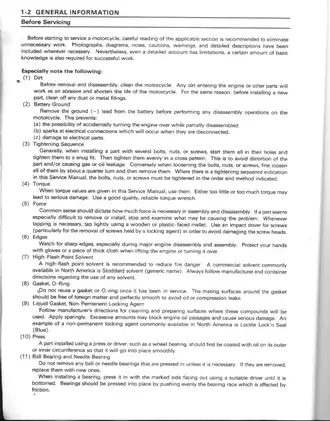

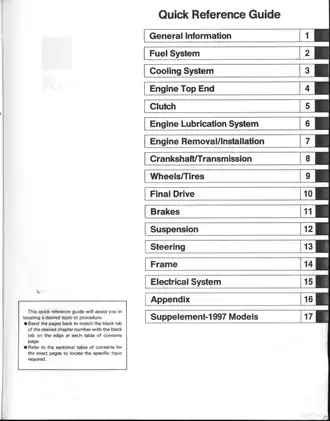

This 322-page PDF reproduces Kawasaki’s factory motorcycle service manual, Part No. 99924-1171-04, for the 1994–1997 B-series Ninja ZX-9R. Its 17 chapters are built around workshop-level maintenance, diagnosis, removal, overhaul, adjustment, and repair rather than basic owner-service guidance.
- Model coverage is tied to factory frame-number breaks: 1994 ZX900-B1 from ZX900B-000001, 1995 ZX900-B2 from ZX900B-018001, 1996 ZX900-B3 from ZX900B-028001, and 1997 ZX900-B4 from ZX900B-038001.
- Fuel and top-end sections cover the Keihin CVKD40 × 4 carburetors, throttle and choke cables, carburetor synchronization, service fuel-level checks, fuel-pump and filter service, camshaft timing, valve-clearance adjustment, cylinder-head repair, valve-seat work, and piston/cylinder inspection.
- Engine, clutch, and transmission procedures include engine removal and installation, hydraulic clutch bleeding and master/slave-cylinder overhaul, clutch-pack inspection, lubrication-system pressure testing, crankcase splitting, crankshaft and connecting-rod inspection, bearing-insert selection, shift-mechanism repair, and transmission disassembly.
- Chassis repair coverage extends through wheel and hub-bearing service, tire inspection and repair, drive-chain and sprocket work, front and rear brake overhaul, fork and shock adjustment, telescopic-fork disassembly, Uni-Trak linkage service, swingarm and steering-stem bearings, and the tubular double-cradle frame with its removable rear section.
- Electrical diagnosis is supported by regional wiring diagrams, alternator and charging-system tests, ignition-coil and starter-relay checks, lighting circuits, fuel-pump and radiator-fan tests, meter and gauge inspection, sensor checks, junction-box diagnosis, and fuse-circuit inspection.
- Factory reference material includes component-specific torque tables, fluid and lubricant data, pressure-test specifications, wear limits, clearance tables, valve-shim charts, bearing-selection tables, electrical test values, exploded assembly views, routing illustrations, and a symptom-based troubleshooting guide for engine, driveline, cooling, brake, handling, and battery faults.
B-Series Coverage and the 1997 Supplement
The model-application table identifies the B1 through B4 by year and starting frame number, which helps separate this manual from later ZX900-C, E, and F-series publications. Country-specific information is also built into the base manual, including US/Canada, Australia, United Kingdom, other European-market wiring, and California evaporative-emission equipment.
Chapter 17 is a true supplement for the 1997 ZX900-B4, not a stand-alone rewrite of the whole book. It adds only the B4-specific model-identification, general-specification, wheel/tire, suspension, frame, and wiring changes. All repair procedures that remained unchanged refer back to chapters 1 through 16, so both the main section and supplement must be used for complete B4 service.
Workshop Procedure Depth
The fuel-system chapter goes well beyond carburetor removal. It documents idle adjustment, vacuum synchronization, service fuel-level measurement, carburetor separation and assembly, internal cleaning and inspection, air-cleaner service, fuel-tank and tap work, California separator/vacuum-valve/canister inspection, and the US-model high-altitude carburetor adjustment. Cooling-system coverage includes draining and filling, pressure testing, water-pump service, radiator and cap inspection, thermostat testing, and fan-switch and temperature-sensor checks.
Engine chapters follow the repair from clean-air-system and compression testing through valve-clearance measurement, camshaft-chain service, cylinder-head removal, valve and guide inspection, valve-seat repair, and cylinder/piston work. The lower-end section covers matched crankcase assembly, crankshaft and connecting rods, alternator drive, starter clutch, shift drum and forks, and the six-speed constant-mesh transmission. Separate clutch and lubrication chapters add hydraulic bleeding, master- and slave-cylinder repair, clutch free-play and wear inspection, oil-cooler and pump work, relief-valve testing, and operating oil-pressure checks.
Chassis chapters cover wheel balancing, hub bearings, tire repair, final-drive alignment and wear checks, caliper and master-cylinder overhaul, brake bleeding, fork disassembly, suspension setup, swingarm and linkage bearings, steering-stem adjustment, and frame-bodywork removal. The rear-shock section is limited to external adjustment, removal, installation, and replacement criteria; it does not provide an internal shock rebuild procedure.
Diagrams, Tools, and Technical References
Especially useful visual references include the cable, wire, and hose-routing drawings, the California evaporative-emission routing schematic, the coolant-flow chart, the engine-oil-flow chart, the valve-seat repair flowchart, and the regional electrical wiring diagrams, including the B4 supplement diagram. Exploded views at the start of the major repair chapters show assembly order, sealant and locking-agent callouts, replacement-part marks, and tightening-sequence references.
The special-tool section identifies Kawasaki tools by number, including the vacuum gauge 57001-1369, fork oil-level gauge 57001-1290, crankcase splitting tool assembly 57001-1362, and hand tester 57001-1394. Those references help determine whether a repair can be completed with available workshop equipment before disassembly begins.
The manual also calls out several easy-to-miss repair traps. The automatic camshaft-chain tensioner extends as it is released, and the camshaft caps are line-machined with the cylinder head; incorrect handling can damage the tensioner, chain, caps, or cam journals. The upper and lower crankcase halves are likewise a factory-matched set and should not be mixed with another case assembly.
Fuel-system work, hot cooling-system service, hydraulic brakes and clutch components, rotating engine parts, and high-current electrical circuits all carry real hazards. Follow the Kawasaki cautions in the relevant chapter and use a qualified technician when a procedure exceeds your tools or experience.
