Xerox WorkCentre 5225/5230 Service Manual – 2008 (P/N 705P01212)

The February 2008 Launch Version of the Xerox service manual (P/N 705P01212) covers the WorkCentre 5225 and 5230 in USSG (XC) and ESG (XE) configurations. Xerox identifies the printed edition as hardcopy no. 701P48348.

Text Search, Bookmarks, and Wiring Detail

Finding procedures and diagrams: The service text and figure captions are searchable, and PDF bookmarks link to service sections and individual procedures. Read pin numbers, connector IDs, and wire-color codes directly in the drawings. Zoom in for the smallest labels.

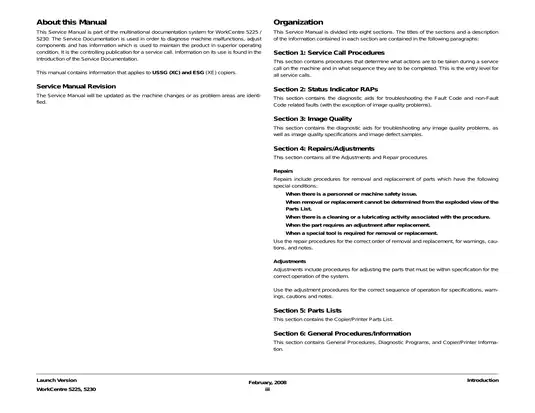

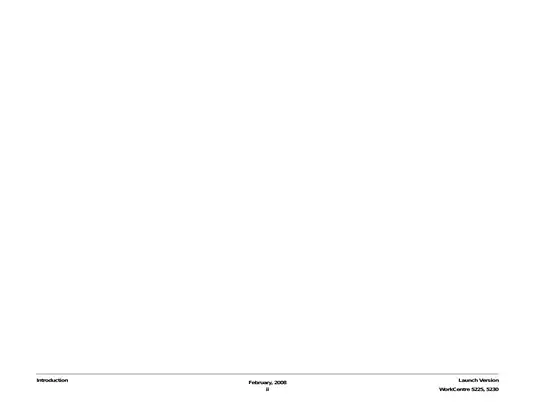

The download is a 1,458-page printable PDF, including the cover and its otherwise blank reverse, which carries a footer.

From Service Calls to Print Engine and Finisher Repairs

This selection of service topics gives a cross-section of the manual. Other procedures cover printing diagnostic service reports and calibrating the Tray 5 bypass guide.

• Service calls and fault isolation: Initial inspection, fault history, High Frequency Service Item (HFSI) checks, cleaning, and Repair Analysis Procedures (RAPs) for fault codes and symptoms.

• Paper path and print engine: Removal and replacement procedures for the main drive, feeders, registration assemblies, duplex path, bias transfer roll, laser scanner (ROS), developer and toner systems, and fuser.

• Scanner and document feeder: Scanner carriage, cables, drive motor, and optics repairs, plus service for the duplex document feeder (DADF) feed mechanisms and counterbalances.

• Trays and finishers: Separate procedures and parts references for the 2-Tray Module, Tandem Tray Module, High Capacity Feeder (HCF, Tray 6), A-Finisher, and S/B Finisher with booklet maker.

• Image quality and alignment: Separate print-engine (IOT) and scanner (IIT) diagnostics, plus edge registration, edge erase, reduction and enlargement, carriage positioning, and DADF adjustments.

• Electrical diagnosis and parts: Plug and jack locations, power-distribution wirenets, block schematics, and exploded parts views linked to repair and adjustment procedures.

Xerox wrote this service documentation for certified technicians trained on these machines.

Fault Isolation and Image Quality

The service-call workflow covers diagnostic entry and final functional checks. The RAPs address tray and registration jams, fuser warm-up and thermistor faults, drum and toner conditions, ESS/IIT/MCU communication errors, hard drive and memory failures, and network and fax faults. Network coverage includes LDAP, SMB, SMTP, FTP, and 802.1X.

The IOT and IIT entry procedures help distinguish print-engine defects from scanner faults. Symptom-based checks cover low density, ghosting, background, deletions, skew, bands, streaks, smears, unfused toner, and all-black or blank output. Test patterns and specifications cover density, uniformity, exposure, registration, skew, deletions, resolution, magnification, and background. Defect samples show auger marks, strobing, toner contamination, transparency offset, and streaks from the constant-velocity transport (CVT) scan path.

Paper Handling, Finishing, and Adjustments

The repair procedures cover HCF docking and feeder service, as well as finisher stapling and stacking faults. They identify the booklet staplers, folder knife, stacker elevator, tamper drives, eject mechanisms, sensors, and control boards. DADF adjustments cover lead edge, side edge, height, skew, and registration for nonstandard originals.

The introduction assigns option and accessory installation to Section 8. This PDF ends at Section 7, Wiring Data. The included option coverage supports diagnosis, repair, parts identification, and wiring checks.

Wiring, Parts, and Controller Service

The exploded parts views and common hardware references identify components and fasteners. Individual listings cross-reference the applicable repair (REP) or adjustment (ADJ), so a technician can go from an assembly drawing to the relevant procedure. Part numbers can be searched directly in the lists.

The block schematics cover ESS board communications, laser control and scanning, registration, fuser heat control, and S/B Finisher folding. A fuser warm-up fault, for example, can be followed from its RAP to the thermistor and heater circuits in BSD 10.1. Tool references include the 600T 01653 HVPS test probe, 600T 01996 probe adapter, 600T 02177 L Probe, 600T02231 firmware-upload cable, and 082E 08220 geometric test pattern.

Diagnostic references include IOT, IIT, controller, and fax nonvolatile memory (NVM) lists, component control, hard disk testing, and test-pattern printing. The manual also covers firmware version checks and downloads, special boot modes, and serial-number and billing-data checks for board replacement.

Xerox warns that powering a replacement MCU or ESS board before transfer of the original EPROM can cause a fatal software error. Replacing both board-and-EPROM assemblies together can disable the machine and erase its serial-number and billing data. The cleaning procedure also warns that rubbing the intermediate transfer belt (IBT) cleaning blade damages its coating.

The manual specifies laser precautions for the ROS, heat precautions for the fuser, electrical isolation for service work, and electrostatic discharge precautions for printed wiring boards.

Selected Scanner Alignment Checks

The IIT platen registration check specifies a lead-edge target of 10 mm, with a tolerance of ±1.6 mm in simplex mode, ±2.0 mm in duplex mode, and ±2.2 mm when using the multipurpose tray.

After scanner lens kit replacement, the service procedure specifies 15 ±1.6 mm at both L0 and R0 on a full-size A3 copy of platen test chart 82P521.
