Kubota L3710DT, L3710GST & L3710HST Tractor Parts Manual (1999–2003) (P/N 100K0489)
574 Pages • 1 Printable PDF (English) • Download
Kubota Models Covered & Key Technical Specifications
Models: L3710DT, L3710GST, L3710HST
Sub-models / Variants: ROPS Type
Model Years: 1999–2003 (1999, 2000, 2001, 2002, 2003)
Serial Numbers: The following breaks apply to the named assemblies or parts.
ROPS wiring, DT and GST: old type ≤51803, new type ≥51804. ROPS wiring, HST: old type ≤51803 and 51804 to 61504, new type ≥70001. ROPS switch group 1: old type ≤51803, new type ≥51804.
HST mid case and range gear shift rod: old type ≤61504, new type ≥70001. HST oil cooler: old type ≤51309, new type ≥51310. HST cruise control lever: ≤50411 and ≥50412. HST range gear shift lever arm and hydraulic delivery pipe (ref. 070): ≤50910 and ≥50911.
GST valve assembly: ≤75376 and ≥75377. PTO shaft parts, DT and GST without mid PTO and HST with mid PTO: ≤72288 and ≥72289. Manual-transmission fender: ≤74596 and ≥74597.
ROPS air cleaner: old type ≤61237, new type ≥61238. ROPS light group 1: old type ≤75110, new type ≥75111. Standard and optional ROPS assemblies: old type ≤72536, new type ≥72537.
Hydraulic control valve components: old type ≤72128, new type ≥72129. Three-point lower linkage: old type ≤74337, new type ≥74338. Rear wheel (21.5L-16.1): old type ≤52112, new type ≥52113.
- Transmission options: DT (manual transmission), GST, HST
Kubota Manual Features & Selected Content Preview
Kubota’s illustrated parts catalog (Book 100K0489) covers the L3710DT, L3710GST, and L3710HST compact tractors listed for 1999–2003. Use the exploded views and matching parts lists to identify replacement components and check serial-specific fitment before ordering.

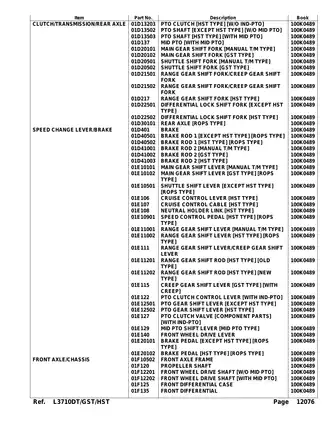

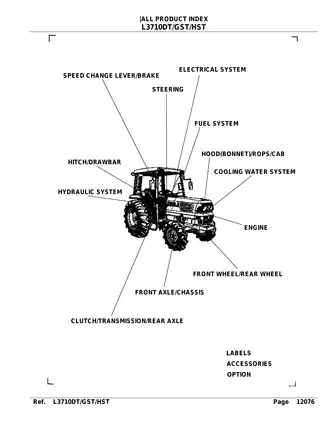

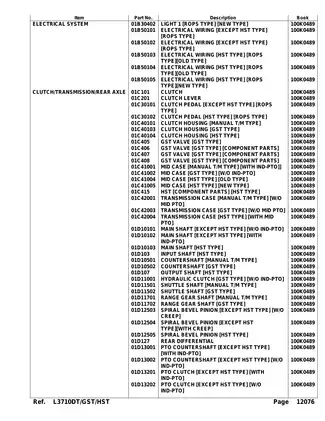

Searchable Parts Lists and Assembly Bookmarks
Text search and drawing detail: Search the index and parts tables by part number or description, or use the PDF bookmarks to jump to an assembly. Some labels are embedded in the drawings, and small wiring illustration callouts are easier to read when zoomed in.
The download is one printable English PDF with 574 pages, including the opening parts-book instructions, six index pages, and one inserted blank page at the end.
Engine, Drivetrain, and Chassis Parts
The following selected assemblies show the catalog’s scope. Other entries cover the front guard stay kit and draft-control linkage.
-
Engine and fuel injection: Exploded views identify crankcase, cylinder head, piston, crankshaft, and camshaft-drive parts. Separate lists break down the injection pump and nozzle holders.
-
Fuel and cooling: Match parts for the ROPS fuel tank, fuel filter, water pump, thermostat, radiator, and coolant pipes to their assembly drawings.
-
Transmission and PTO: Compare manual, GST, and HST clutch housings and transmission cases. Separate breakdowns show the GST valve, HST internals, and PTO clutch components.
-
Electrical: Locate wiring harnesses in tractor layout drawings and look up individual alternator, starter motor, switch, and instrument panel parts.
-
Hydraulics and steering: Separate HST and non-HST pump listings sit alongside hydraulic oil line views, control valve parts, and steering cylinder breakdowns.
-
Axles and hitch: Look up front axle housing and rear differential parts, three-point linkage hardware, and the optional swinging or clevis drawbar.
The catalog suits mechanics and owners who recognize the assembly they’re working on and need to match a drawing callout to a replacement part.
Serial Breaks and Part Interchangeability
The quantity, serial number, interchangeability, and remarks columns help you choose the right version of a part. For example, the GST valve listing distinguishes the later valve assembly from the earlier entry marked unavailable for sale. Check the interchangeability code to see whether a replacement works in one direction or both. The opening instructions also explain country codes used in fitment remarks.
Drivetrain and Hydraulic Configurations
Mid-PTO cases and shafts have separate illustrations. The catalog also distinguishes independent-PTO configurations and shows the shuttle shift lever, differential lock shift fork, and creeper gear linkage in their respective assemblies.
The hydraulic line drawings identify inlet, delivery, and power steering plumbing. Separate views break down the steering controller and show the ROPS frame and its mounting hardware. Confirm serial-specific fitment before ordering parts for the pressurized hydraulic system.
Parts Lookup and Workshop Procedures
The electrical illustrations show harness locations and part callouts. Use a workshop manual for circuit diagnosis, tractor splitting, or overhaul procedures for the HST, GST valve, or rear differential.
Sample Piston and Bearing Sizes
The piston and crankshaft table lists standard and +0.5 mm pistons with corresponding ring assemblies. It also lists standard crankpin bearing sets and −0.2 mm and −0.4 mm alternatives for identifying the cataloged bearing sizes.
