Massey-Ferguson MF 4215/4220/4225/ 4235/4240/4243/4245/ 4253/4255/4260/4263/ 4270 Workshop Service Manual

Massey Ferguson's MF 4200 Series Tractor Workshop Service Manual, reference 1449494M1, Issue 1, released May 1997, covers MF 4215, 4220, 4225, 4235, 4240, 4243, 4245, 4253, 4255, 4260, 4263, and 4270 tractors.

Bookmarks, Diagram Detail and PDF Format

Finding sections and reading diagrams: Embedded bookmarks open the main sections and major subassemblies. Text search is not available for the manual pages. Small wiring and connector labels require zooming; some large layouts continue across multiple pages.

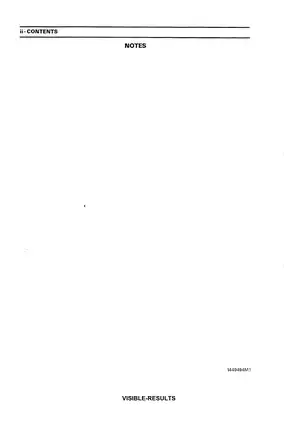

One printable, English-language 752-page PDF, including the opening cover page and 751 manual pages. Blank pages and diagram continuation pages are already included in that total.

Tractor Splitting, Drivetrain Repair and System Diagnosis

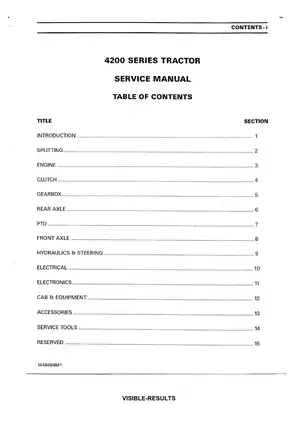

This selected content preview highlights major workshop sections. Additional topics include headlight alignment and trailer-socket wiring connections.

• Cab-tractor splitting: Separation at the front axle/engine, engine/gearbox, and gearbox/rear center housing, including rearward withdrawal, support equipment, alignment checks, and reassembly requirements.

• Split-torque clutch repair: Pedal and linkage adjustment, release-bearing and release-mechanism service, clutch removal and overhaul, flywheel reclamation, and pilot-bearing replacement.

• Transmission and PTO: Internal repair of the 8x8 Shuttle, 12x4 Manual, 12x12 Shuttle/Creeper, and 18x6 Speedshift gearboxes, range and four-wheel-drive gearboxes, and single- and two-speed PTO assemblies.

• Axles and brakes: Master/slave cylinder overhaul, bleeding, brake balancing, differential lock, crownwheel and pinion setup, rear epicyclic units, and two- and four-wheel-drive front axle repair.

• Hydraulics and steering: Lift-cover, cylinder, quadrant, selector-valve, steering-unit, and pump overhaul, with static/external adjustments and pressure/flow tests for steering, PTO, Speedshift, differential lock, four-wheel drive, auxiliaries, and trailer brakes.

• Electrical diagnosis: Starting and charging tests, fuse and relay checks, instrument and sensor service, solenoid testing, wiring diagrams, and connector and pin-identification views.

• Cab and linkage: Heater/blower, heater-valve, wiper, door-hardware, headlining, and sheet-metal service, plus lift linkage, drawbar, pickup hitch, wheels, and tires.

Written for Massey Ferguson dealers and distributors carrying out repair and maintenance, this manual calls for special tools and workshop equipment on major overhaul jobs.

Build Identification and Engine-Service Limits

Tractor, engine, transmission, front-axle, cab, safety-frame, wheelbase, and emissions codes distinguish different builds, including the 1997–2001 serial-year letters. Height charts identify flat or tunnel floors, standard or sloping hoods, and Standard or Lo-Profile configurations. These distinctions help match the tractor's equipment to the appropriate procedure before disassembly.

The engine specifications distinguish Perkins 903.27, 903.27T, 4.41, 1004, and 1006 families, including turbocharged and low-emission versions. Cab identification also distinguishes high, low, and forestry cabs from safety-frame structures.

Engine scope: Tractor-specific specifications, torque data, lubrication and cooling information accompany radiator, header-tank, fan-belt, fuel-filter, fuel-bleeding, air-cleaner, fuel-tank, sender, and throttle-control procedures. A complete internal engine rebuild is not contained in this volume; that work requires the separate Perkins 900, 4.41, and Phaser/1000 Series workshop manuals.

Clutch, Gearbox and Axle Overhaul

Step-by-step procedures cover gearbox removal, selector-rail and fork service, shaft and gear overhaul, clutch-pack work, bearing preload, and oil-seal replacement. Coil-spring and Belleville-spring clutches have separate overhaul procedures.

The 8x2 Manual gearbox appears in the identification table; the dedicated gearbox repair chapters cover the four transmission types listed above.

The manual warns that pulling misaligned engine and gearbox flanges together with the housing bolts can damage the transmission and clutch. Its flywheel-reclamation instructions also prohibit skimming the pressure plate or false flywheel because this impairs heat dissipation.

Axle setup: Crownwheel and pinion components are matched sets. Front-axle procedures distinguish depth-of-mesh shims from bearing-preload shims; retaining their locations matters when rebuilding the gearset.

Hydraulic Tests and Electrical References

Hydraulic diagnosis separates pump performance, pressure-maintaining-valve faults, solenoid operation, and internal leakage. For differential-lock and four-wheel-drive faults, in-line and tee-test comparisons help distinguish a supply/control problem from leaking piston seals.

Visual references include front and rear tractor mounting-point charts, gearbox cutaways and exploded geartrain views, four-wheel-drive planetary-hub and differential illustrations, and hydraulic test-point and circuit drawings.

The Engine and Main Wiring Harness Layout accompanies plug and connector identification views. Individual circuits cover Speedshift fast/slow, four-wheel drive and differential lock, electronic lift control, air conditioning, and the speedometer/performance monitor; some wiring sheets are marked Issue 2.

Alternator service includes regulator/brush replacement. The electronics section covers speedometer and performance-monitor adjustment, tire-size programming, speed-sensor adjustment, and the trip area/distance hold connection.

Service Data, Tools and Workshop Precautions

Pre-delivery checks, running-in and service schedules, storage and waterproofing instructions, approved lubricant data, capacities, torque tables, wear limits, clearances, shim calculations, and electrical/hydraulic test specifications support maintenance and overhaul work.

Tool references include the MF.3012 splitting track, MF.3013 cab stands, MF.367B transmission torque wrench, MF.414 synchromesh setting pin, MF.3001A hydraulic pressure test kit, MF.418A lift-cover remover/replacer, and MF.502/MF.503 pinion tools.

Before splitting the tractor, lifting heavy housings, opening brake circuits, or testing pressurized hydraulics, use the specified stands and support equipment, lower attached implements, isolate electrical power, and relieve stored pressure. Read the manual's safety and service precautions with the relevant procedure.

Selected Clutch Setting Data

Release-lever height specifications are 82.31–82.55 mm for the 305 mm coil-spring clutch and 118.92–120.22 mm for the 330 mm Belleville-spring clutch. The corresponding procedures use separate release-lever setting gauges.

For clutch-pedal height adjustment, the manual specifies 155 mm measured above the flat part of the cab floor mat. The cable-operated clutch has a constant-running release bearing and does not require routine clutch-clearance adjustment.
