2000 Yamaha EW50 Slider Service Manual

Complete factory service documentation for the Yamaha EW50 Slider scooter. Covers engine overhaul, chassis repair, electrical systems, and routine maintenance procedures. PN: 5JH1-AE1

5.0starstarstarstarstar(1)
visibility Preview Available
Yamaha 2000 Yamaha EW50 Slider Service Manual manual page preview - page 1 of

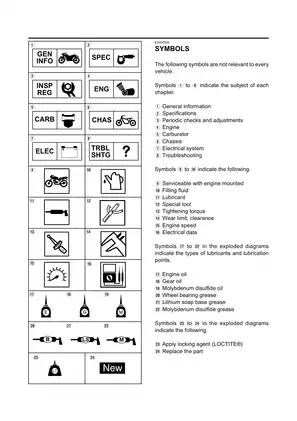

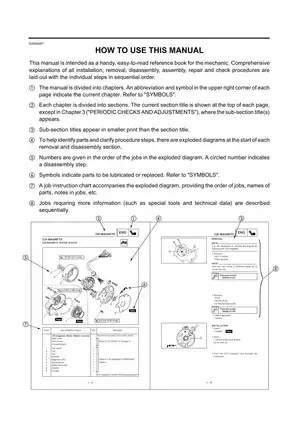

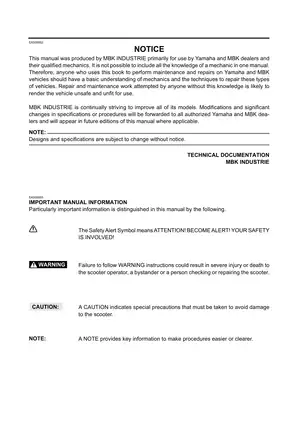

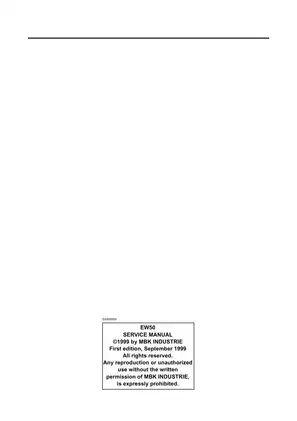

Sample pages from the 2000 Yamaha EW50 Slider Service Manual manual

Yamaha 2000 Yamaha EW50 Slider Service Manual manual preview page 1 - thumbnail
info_outline Click thumbnails to preview different pages

Purchase & Download

$9.66 (incl. VAT) Instant Download / No Shipping Fees
1 sold in the last 30 days
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal

Document Details

keyboard_arrow_down
Document Number / Seller:
24869 / Matthew Bell
File Size:
10.06 MB
File Type:
PDF
Language:
English
Printable:
Yes
Category:
Scooter
Last updated / verified
Apr 11, 2025

Models Covered & Key Technical Specifications

Yamaha EW50 — 2000 Expert Guide Library | EW50 Series Record.

  • Calibrated Engine Data: 49.2 cm³ (3.0 cu in) is established at the air-cooled 2-stroke single-cylinder displacement Architecture.
  • Rated Compression Ratio: For optimal combustion, 7.2:1 is standardized to the gasoline torque induction requirement Norms.
  • Defined Fuel Capacity: 6.5 L (1.72 US gal) reaches the operational tank volume Parameters.
  • Universal Tire Pressure: The cold single riding condition dictates 150 kPa (1.50 kg/cm²) front specification Bounds.
  • Maximum Brake Disc Specification: Front disk brake assembly specifies 190.0 x 3.5 mm diameter and thickness Topology.
  • Documented Battery Rating: 12V 4AH represents the electrical storage capacity requirement Matrix.

Professional Workshop Service Manual & Technical Specifications

Definitive Service Manual: Scooter Official Yamaha EW50 Scooter (2000) Service & Repair Manual - Factory Procedures Parts-Reference

System-Identifier: Yamaha BW EW50 (1999-2000) // System-Identifier: Fuel system and ignition logic // System-Identifier: Air-cooled two-stroke gasoline torque induction engine specifications.

Feature Category Documentation Scope Technical References
Engine Systems Cylinder head, piston assemblies, crankshaft configurations Complete specifications provided
Belt Drive Assembly Primary and secondary pulley configurations, V-belt parameters Chapter index included
Chassis Components Wheel bearing assemblies, brake disc parameters, suspension specifications Reference data documented

Integrated service sections encompass engine overhaul procedures alongside carburetor adjustments, which document brake system maintenance alongside front fork assembly protocols. The manual discusses transmission oil specifications, then covers electrical system fundamentals, proceeds through chassis service intervals, and addresses troubleshooting logic for both ignition and signal systems.

Core Framework

The document includes coverage of general information sections that establish identification procedures and special tool requirements. Specifications are documented for maintenance intervals (1,000 km initial through 24,000 km cycles), including spark plug types (NGK BR8HS or BR9HS depending on market), engine oil requirements (Yamalube 2 or JASO FC grade), and transmission fluid capacities. Bolt torque specifications are documented throughout, with values provided for fastener applications ranging from 3 Nm for oil pump bolts to 103.5 Nm for rear wheel axle nuts, ensuring proper joint separation prevention.

Systematic Architecture

Safety procedures are documented for battery handling (electrolyte contact precautions, charging protocols), brake fluid replacement intervals (every two years), and electrical testing methodologies. The manual provides wiring diagrams with complete color-code references (Black, Brown, Chocolate, Dark Green, Green, Grey, Blue, Orange, Pink, Red combinations), switch continuity inspection procedures, and circuit analysis for ignition, charging, lighting, and signal systems.

Modular Parameters

Fluid capacities are listed for engine oil (1.4 L total with 0.13 L periodic change), transmission oil (0.11 L with 0.13 L total fill), and front fork legs (0.115 L per leg using ISO 6743/4-LHV 46 or SAE 10 grade). Tool requirements are listed for major service operations, including crankcase separating tool (90890-01135), flywheel puller (90890-01189), rotor holding tool (90890-01235), and specialized magnetic force measurement devices.

Diagnostic Protocol

Troubleshooting sections present logical flow for starting system failures (analyzing fuel pathways, electrical delivery, compression integrity), idle speed performance issues, acceleration problems, and brake system malfunctions. The manual references symptom categories including hard kicking analysis, clutch engagement failure investigation, and front fork oil leakage diagnosis alongside handling instability assessment protocols.

Engineered Framework

Periodic maintenance charts identify component inspection points with specific kilometer-based intervals (3,000 km, 6,000 km, 12,000 km, and 24,000 km schedules). The technical specifications section documents cylinder bore measurements (39.993–40.012 mm standard with 0.05 mm taper limit), piston clearance ranges (0.034–0.047 mm), and piston ring end gap specifications (0.15–0.35 mm for both top and second rings). Electrical specifications are provided for battery capacity (12V 4Ah), charging voltage regulation (13–14 V no-load), and circuit breaker amperage (7A main circuit).

FAQ

What **transmission** oil capacity is specified for the EW50? keyboard_arrow_down

0.11 L is the standard capacity with 0.13 L total amount specified in the maintenance specifications section, providing lubrication for the automatic transmission system.

Calculate the **specified** torque for the cylinder bolt installation? keyboard_arrow_down

10 Nm (1.0 m·kg) is required when installing cylinder bolts to ensure proper compression and seal integrity without over-tightening.

What values are **essential** for front brake lever free play adjustment? keyboard_arrow_down

10 ~ 20 mm (0.40 ~ 0.80 in) is the proper range for front brake lever free play, measured at the end of the brake lever to ensure safe braking operation.
