1999-2007 Yamaha YH50 Scooter Service Manual
Engine CDI ignition, V-belt transmission, and hydraulic brake service. Comprehensive YH50 overhaul procedures, carburetor settings, electrical system diagnostics, and complete parts specifications.
Manual Preview

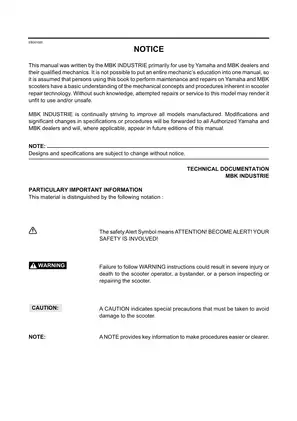

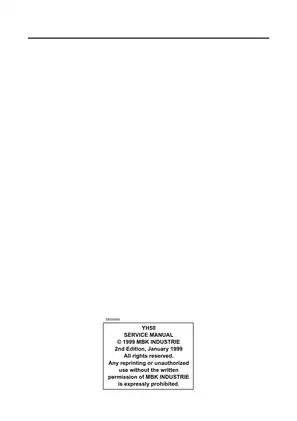

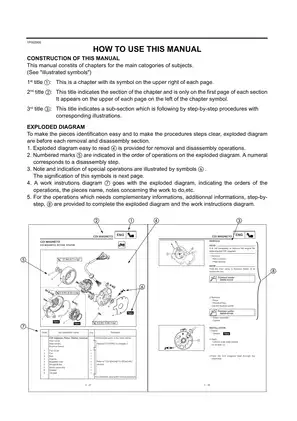

Sample pages from the 1999-2007 Yamaha YH50 Scooter Service Manual manual
Purchase & Download
Models Covered & Key Technical Specifications
Yamaha YH50 Scooter (5EU-AE2) — 1999–2007 Procedural Engineering Portfolio | YH50 Series Repository.
- Engineered Dimensional Limits: The engine displacement reaches 49.2 cm³ (3.0 cu in) as specified for the two-stroke cylinder volume Requirements.
- Defined Package Size: For optimal combustion chamber design, 40.0 mm × 39.2 mm bore and stroke measurements establish the mechanical architecture Threshold.
- Standard Fastening Values: The compression ratio is calibrated to 7.25:1 across standard production variants (B)(E)(F)(GB)(I)(P) Mapping.
- Prescribed Charge Quantity: The fuel tank delivery system requires 7.2 L (1.9 US gal) capacity for extended range operation Configuration.
- Nominal Voltage Specs: The battery electrical system delivers 12V 4AH rated capacity for electric and kick starter activation Benchmarks.
- Verified Weight Data: The complete scooter assembly is rated at 78 kg (172 lb) with full engine oil and fuel tank Range.
Professional Workshop Service Manual & Technical Specifications
Operational Wiring Manual: Yamaha YH50 repair manual, covers 1999-2007 Resource-Library
Performance-Values: YH50 / Yamaha Motor Co., Ltd // Coverage-Scope: Service / Engine and Transmission Systems Logic // Performance-Values: Comprehensive technical reference documentation for scooter systems.
| System Framework | Value | Documentation Status |
|---|---|---|
| Engine Configuration | Air-cooled 2-stroke single cylinder | Complete specifications provided |
| Transmission Type | Automatic V-belt CVT | System overview included |
| Electrical Architecture | CDI magneto with 12V battery | Wiring diagrams and circuit data |
The documentation provides guidance on cylinder head assembly and removal, engine overhaul procedures including piston and ring inspection, V-belt transmission maintenance with primary and secondary sheave data, and comprehensive electrical system circuit diagrams. The manual documents carburetor operation principles covering the auto-choke system with P.T.C. thermistor elements, fuel delivery mechanisms, and jet specifications for different market variants. Chassis systems are covered through front and rear suspension inspection frameworks, brake fluid specifications, and steering assembly reference data.
Systematic Benchmarks
Maintenance information includes periodic inspection intervals with lubrication point mapping and fluid grade selections documented for engine, transmission, and suspension components. The document includes torque specifications for the crankcase holding screws to ensure proper reassembly, along with bearing installation requirements and oil seal lip preparation procedures.
Advanced Protocol
Special tools are referenced throughout the documentation, including crankcase separating tools, flywheel pullers, and fork seal driver attachments with corresponding part numbers. The ignition system section documents CDI unit operation, pickup coil and source coil resistance values, and spark plug gap specifications for the BR8HS standard plug configuration. Troubleshooting sections organize failure modes by system category including fuel system restrictions, electrical continuity problems, compression concerns, and transmission clutch operation.
Structured Sequences
The wiring diagrams present complete circuit layouts for ignition and starting systems, charging systems with rectifier/regulator operation, lighting circuits with headlight and tail light configurations, and signal systems covering flasher relay operation and horn circuits. Exploded diagrams accompany removal and disassembly procedures showing parts in order of operation with numbered reference marks and special operation notations. The manual documents cable routing specifications with measurement guides showing proper clamp spacing and wire bundle positioning for all major harnesses.
Comprehensive Standard
Electrical components section includes battery specifications (12V 4AH capacity), starter motor output data, and lighting system bulb wattages across headlight (35W), taillight/brake light (5W/21W), and indicator light circuits. The fuel system includes carburetor jet configurations (main jet, pilot jet specifications) with needle valve and float chamber reference data. Front and rear brake systems are documented with disc thickness specifications (3.5 mm minimum), brake pad wear limits, and drum brake lining thickness measurements for maintenance reference.
Systematic Architecture
Troubleshooting matrices organize diagnostic procedures by symptom category, documenting expected resistance values for electrical components, bearing operation criteria, and compression system inspection points. The document documents torque specifications for the engine mounting bracket to support structural integrity across assembly sequences. Periodic maintenance schedules outline inspection intervals for spark plugs, air filters, transmission oil replacement (0.11L periodic capacity), brake system air bleeding procedures, and steering head bearing adjustment techniques using specified ring nut wrenches.
