Honda FourTrax Foreman Rubicon 500 ATV Service & Repair Manual (2005–2012)

This Honda service manual covers maintenance, diagnosis, and repair for the 2005–2012 FourTrax Foreman Rubicon 500: TRX500FA, TRX500FGA with GPScape, and TRX500FPA with GPScape and EPS.

PDF Search, Bookmarks, and Page Count

Text search and diagram detail: An embedded OCR layer supports searches through many service procedures, but some tables are incompletely recognized and the full wiring-diagram pages have no searchable text. Chapter and individual wiring-diagram bookmarks provide navigation. Small connector labels and wire-color codes require zooming.

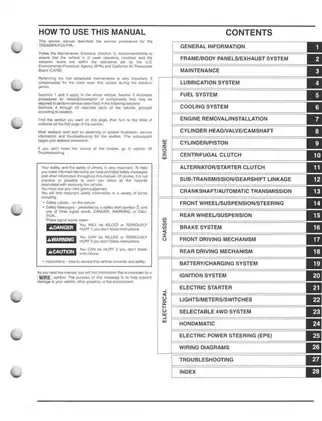

The download contains one printable 601-page PDF, including one cover page, three introductory pages, and 18 memo pages.

Engine, Driveline, and Electrical Service

The following selected topics illustrate the repair coverage rather than reproduce the complete contents list. Other sections include recoil-starter service and carburetor-heater checks.

• Engine repair: Valve-guide replacement, valve-seat refacing, camshaft timing, cylinder and piston inspection, and crankshaft and balancer service.

• Clutch and sub-transmission: Centrifugal-clutch disassembly and inspection, plus internal sub-transmission repair with gear, shift-fork, and shift-drum checks.

• Front and rear final drives: Differential and final-drive overhaul, backlash measurement, tooth-contact inspection, shim selection, and front differential slip-torque testing.

• Brake service: Front hydraulic caliper and master-cylinder overhaul, fluid replacement and bleeding, and rear drum brake inspection and adjustment.

• Steering and suspension: Wheel-hub bearing replacement, ball-joint service, swingarm pivot work, and separate steering procedures for EPS-equipped models.

• Electrical diagnosis: Hondamatic and selectable 4WD fault tracing, EPS diagnostics, sensor tests, and wiring diagrams organized by model and destination.

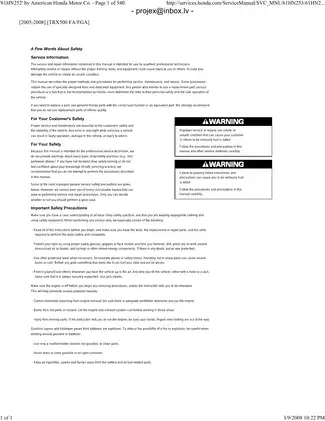

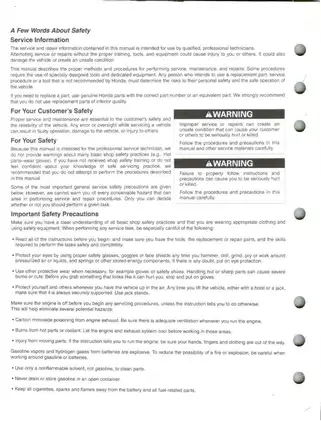

Honda wrote this manual for qualified, professional technicians with the training, tools, and equipment required for the work.

Engine Access and Hondamatic Repair Limits

Body-panel and exhaust removal procedures establish access for engine and chassis work. Exploded assembly drawings show component arrangement.

Cylinder-head and piston service can be performed with the engine in the frame. Sub-transmission, crankshaft, and automatic-transmission unit service require engine removal.

The cylinder-head section warns that incorrect head-cover installation, with the rocker arms misaligned with the pushrod ends, can cause severe engine damage.

Hondamatic unit: Coverage includes crankcase separation, unit removal, and swash-plate and ball-nut movement checks. The automatic unit is replaced as an assembly; internal overhaul of that unit is outside the repair scope.

Mechanical troubleshooting charts help distinguish lubrication, centrifugal-clutch, and sub-transmission faults when assessing poor drive performance.

Electrical diagnosis covers blink codes, the control motor, and throttle-position and angle sensors. The Hondamatic Circuit Diagram connects these components to the ECM and shift controls. The manual identifies which ECM, sensor, carburetor, and throttle-cable jobs require the Hondamatic initial setting.

Carburetor, Lubrication, and Cooling Service

The CV carburetor chapter provides step-by-step disassembly and assembly procedures, including vacuum-piston and diaphragm inspection, starting-enrichment valve service, and pilot-screw adjustment.

Regional versions: Carburetor specifications distinguish VE6AE for A/CM versions (U.S. and Canada) from VE6AF for U versions (Australia, U.K., and Sweden). High-altitude adjustments exclude U versions. Changes after 2007 concern fuel-tank and hose permeation controls on the carbureted fuel system.

Routine maintenance covers valve-clearance adjustment and oil and filter changes. The Lubrication System Diagram supports oil-pressure testing and oil-pump inspection.

The Cooling System Flow Pattern accompanies radiator, thermostat, and water-pump service, including pressure testing and coolant air bleeding.

EPS, 4WD, and Electrical Fault Tracing

EPS diagnostics: HDS Pocket Tester access and a DLC/SCS connector method are described, along with torque-sensor initialization. The indicator displays main fault codes only; HDS provides subcodes and freeze data. Steering jobs and EPS ECU replacement requiring initialization are identified.

4WD and wiring: The Selectable 4WD System Diagram supports front-final-clutch and vehicle-speed-sensor diagnosis. EPS Connector Location drawings identify harness connections. Wiring diagrams distinguish model years, destination codes, and EPS configurations.

Current-leakage testing and a charging-system diagnostic flowchart address parasitic draw. Separate procedures cover ignition peak voltage, starter-motor overhaul, lighting and switches, and GPScape receiver communication and backup-power faults.

Chassis Differences and Workshop References

Tie-rod assembly orientation differs between 2005–2006 and later models. Shock lower-pivot service distinguishes earlier bearings from later bushings, helping match the chassis procedure to the vehicle.

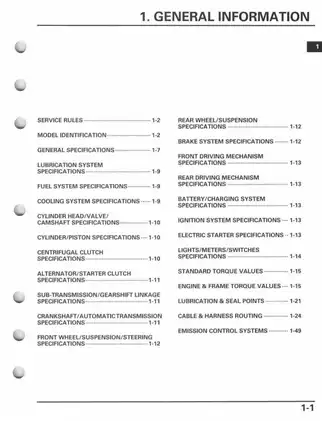

Factory tables provide component torques, valve-adjustment data, wear limits, electrical test values, and oil capacities for different service operations. Special-tool references include the U.S. clutch holder set 07ZMB-HN2A100 and EPS diagnostic SCS connector 070PZ-ZY30100.

Before handling heavy structural components or draining fluids, work in a well-ventilated area and wear appropriate protective equipment.

Float-Level and Cooling-Pressure Specification Preview

Carburetor float: The specified level is 15.9 mm (0.63 in), with the float just touching the seated float valve. The float is nonadjustable; the manual specifies assembly replacement when the level is outside specification.

Radiator cap: The cooling-system test section lists a relief-pressure range of 108–137 kPa (16–20 psi), together with pressure-retention checks and cooling-system leak testing.
