Isuzu Trooper, Rodeo & Amigo 2000 Workshop Manual Set
4,845 Pages • 1 Printable PDF (English) • Download
Isuzu Models Covered & Key Technical Specifications
Models & Model Codes: Trooper (UX), Rodeo (UE), Amigo (UA)
Sub-models / Variants: Trooper/Rodeo: 4 Door Cab, Long Wheel Base; all models: 4x4 with SRS-Air Bag, 4x2 with SRS-Air Bag
Model Year: 2000
VIN Identification: Trooper: VIN character 5 represents vehicle configuration (J = 4x4 with SRS-Air Bag, K = 4x2 with SRS-Air Bag); Rodeo/Amigo: VIN character 5 represents vehicle configuration (M = 4x4 with SRS-Air Bag, K = 4x2 with SRS-Air Bag); VIN character 10 represents 2000 model year
-
Engine: Trooper: 3.5L V6 DOHC 6VE1; Rodeo/Amigo: 3.2L V6 DOHC 6VD1, 2.2L L4 DOHC X22SE
-
Transmission: Trooper: 4L30-E Automatic, Manual Transmission (AR-5); Rodeo/Amigo: 4L30-E Automatic, Manual Transmission (MUA 5C); Amigo: T5 manual transmission listed in lubrication data only
-
Refrigerant: HFC-134a
-
Refrigerant Capacity: Trooper: 600 g (1.32 lbs); Rodeo/Amigo: 650 g (1.43 lbs)
-
Compressor Oil: Trooper: PAG oil
-
Heater Core Dimensions: Trooper: 171 mm x 161 mm x 25 mm; Rodeo/Amigo: 167 mm x 151 mm x 35 mm
-
Evaporator Core Dimensions: Trooper: 235 mm x 225.3 mm x 60 mm; Rodeo/Amigo: 235 mm x 224 mm x 60 mm

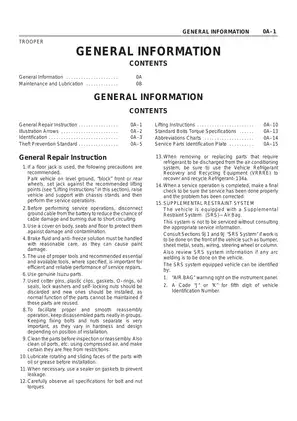

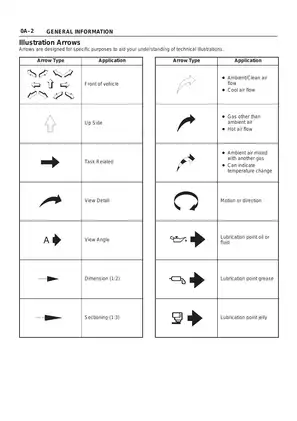

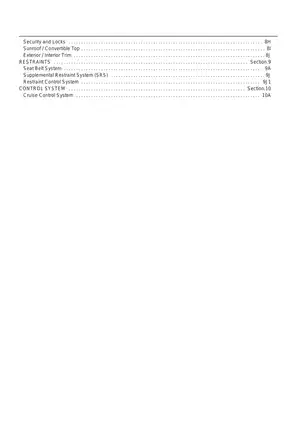

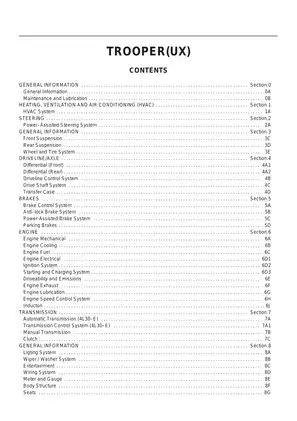

Isuzu Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| 2000 Isuzu Trooper (UX) Workshop Manual | 2,151 |
| 2000 Isuzu Rodeo (UE) Workshop Manual | 2,513 |
| 2000 Isuzu Amigo (UA) model-specific supplement | 180 |
The Amigo supplement provides steering and suspension procedures, differential specifications, and propeller-shaft service. Its shared HVAC, engine, transmission, brake, body, restraint, and control-system coverage refers to the Rodeo manual included in this PDF.
Additional manual references: The Trooper φ244 rear-differential chapter covers the B-type carrier with a non-barcode sticker; the barcode-marked A-type refers to the 1998 UBS Workshop Manual. The Amigo drive-shaft section also refers several front-hub, front-axle, and Shift-on-the-Fly procedures to the 1998 Rodeo Workshop Manual. Those 1998 publications are not included.
Searchable Workshop Text and Wiring Detail
Text search, bookmarks, and diagrams: Workshop text is searchable, but many diagram labels are embedded in images and cannot be searched. Embedded bookmarks cover all three model sections; two “Injector Balance Test” entries have no working destination. Small wiring labels require zooming, and some dense Trooper wiring sheets have faint or broken linework.
One printable English PDF contains 4,845 pages, including one shared title page in addition to the publication totals above.
Engine Overhaul, Drivetrain Repair, and System Diagnosis
These selected repair topics outline the contents rather than reproduce the full table of contents. Other sections include starter and generator testing and X22SE PCM replacement and programming information.
-
Engine repair: Step-by-step removal and installation, compression diagnosis, timing-belt service, cylinder-head and camshaft work, valve-train inspection, piston and crankshaft repair, and cylinder-block reassembly.
-
Automatic transmission: 4L30-E road, stall, and line-pressure tests; shift and lockup charts; valve-body and oil-pump repair; clutch and sprag inspection; internal teardown and reassembly.
-
Manual transmission and clutch: Trooper AR-5 and Rodeo MUA 5C diagnosis, removal, disassembly, gear and synchronizer inspection, reassembly, clutch service, and applicable 4x2/4x4 arrangements.
-
Axles and four-wheel drive: Differential, axle-shaft, and propeller-shaft service; standard and Torque-on-Demand (TOD) transfer cases; Shift-on-the-Fly wiring, vacuum-control diagnosis, DTCs, and Tech 2 checks.
-
Steering, suspension, and brakes: Power-steering bleeding and repair, front and rear suspension service, alignment, wheel bearings, Intelligent Suspension diagnosis, ABS troubleshooting, hydraulic brakes, and separate 4x2/4x4 parking-brake sections.
-
Heating and air conditioning: Manual and automatic A/C diagnosis, refrigerant recovery and charging, leak testing, compressor and magnetic-clutch repair, and blower and actuator checks.
-
Body and electrical systems: Wiring, SRS, lighting, wipers, gauges, locks, seats, body structure, sunroof/convertible top, and cruise-control diagnosis and service.
The depth and equipment requirements make this set best suited to professional technicians and experienced owners who already have solid workshop fundamentals and access to scan, electrical, lifting, pressing, and R-134a service equipment.
Engine Inspection and Driveability Diagnosis
The V6 chapters add timing indexing, shim-selected valve-clearance adjustment, bearing and bore inspection limits, oiling-system service, and component-specific tightening sequences. The X22SE material includes twin-shaft balance-unit teardown and adjustment.
Separate driveability and emissions sections provide OBD II diagnostic logic, DTC test charts, PCM pinouts, live-data references, freeze-frame guidance, fuel and ignition tests, and repair-verification checks. These references connect fault codes and scan data with circuit and component tests, supporting diagnosis before parts are selected.
Engine handling and cooling: The manual warns that supporting an engine under the oil pan can damage the oil pickup because clearance is limited. Its 6VE1 cooling-fan note identifies incompatibility with the 1992–1997 6VD1 arrangement; incorrect installation can reverse airflow, reduce A/C performance, and raise coolant temperature.
Gearbox Faults and Differential Setup
The 4L30-E material distinguishes mechanical and hydraulic faults from electronic control problems before internal repair begins. Manual gearbox diagnosis addresses abnormal noise, hard shifting, jumping out of gear, and leakage.
Axle chapters add gear-noise diagnosis, pinion-depth and bearing-preload setup, backlash adjustment, differential-cage work, and limited-slip clutch service. Factory tool references include the J-39858 clutch-pack unloading kit and J-44450 side-gear holder.
The Amigo lubrication table also lists a T5 manual transmission. That reference does not provide a dedicated T5 overhaul chapter.
Climate Controls and Diagnostic Schematics
HVAC coverage follows the compressor, condenser, receiver/drier, expansion valve, evaporator, pressure switch, and electronic thermostat. Trooper automatic climate control has separate self-diagnosis, sensor, intake-, mix-, and mode-actuator, fan-motor, and magnetic-clutch checks.
Recovery, recycling, evacuation, oil balancing, and leak testing specify the J-39500 ACR4 or equivalent equipment.
Diagram references: Examples include the seven-sheet 6VE1 PCM wiring set, ten-sheet X22SE PCM wiring set, Shift-on-the-Fly vacuum-piping diagrams, TOD circuits and connector views, ABS circuits and wheel-speed sensor test charts, and the automatic A/C block diagram. Exploded assembly views accompany major component procedures.
Torque tables, fluid capacities, pressure-test data, wear limits, electrical values, alignment specifications, adjustment data, and factory maintenance schedules appear with the related systems.
R-134a service, SRS diagnosis, brake work, and drivetrain removal involve pressurized refrigerant, pyrotechnic restraints, safety-critical systems, and heavy components; follow the manual's precautions and use the specified recovery, diagnostic, and lifting equipment.
Selected Valve-Clearance and Driveline Specifications
Cold valve-clearance data for the Trooper 6VE1 specifies 0.28 ± 0.05 mm at the intake valves and 0.30 ± 0.05 mm at the exhaust valves. The engine chapters explain valve-train inspection and shim selection.
Trooper propeller-shaft flange torque differs by driveline: 63 N·m without TOD and 43 N·m with TOD. These figures appear in the maintenance service data alongside the model's other adjustment specifications.
