Isuzu, Holden & Opel Frontera 1999–2001 Workshop Manual Set (P/N RV99_02-01.E)
7,070 Pages • ZIP Download: 1 Printable PDF (English)
Isuzu Models Covered & Key Technical Specifications
Models & Model Codes: Frontera (UE), Holden Frontera, Opel Frontera
Sub-models / Variants: 2 Door, 4 Door; right-hand model
Model Years: 1999–2001 (1999, 2000, 2001)
Engines / VIN identifiers: 2.2L L4 (X22SE; VIN positions 7–8: 30), 3.2L V6 (6VD1; VIN positions 7–8: 25)
Transmissions: MUA 5C (4X4) manual — X22SE / 6VD1; 4L30-E automatic — 6VD1 4×4 (FL: 1999–2000; FT: 2001)
-
Engine oil capacity (V6-3.2L with filter): 4.7 L (5.0 Qt) for 1999–2000; 4.5 L (4.8 Qt) for 2001 (approximate refill capacities)
-
Engine oil capacity (L4-2.2L with filter): 4.5 L (4.8 Qt)
-
Manual transmission oil capacity (V6-3.2L): 2.95 L (3.1 Qt)
-
Manual transmission oil capacity (L4-2.2L): 2.13 L (2.25 Qt)
-
Wheel nut torque: 118 N·m (87 lb ft)
-
Propeller shaft flange torque: 63 N·m (46 lb ft), hex bolts; 43 N·m (32 lb ft), inner hex bolts
-
Spark plug gap: 1.05 mm (0.04 in)
Isuzu Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|

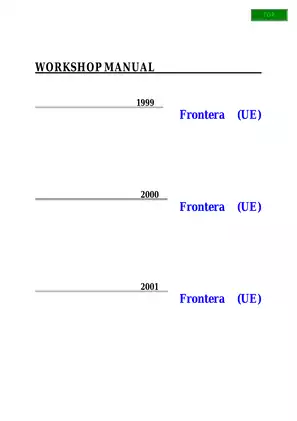

| 1999 Isuzu Frontera (UE) Workshop Manual | 2,415 |
| 2000 Isuzu Frontera (UE) Workshop Manual | 2,437 |
| 2001 Isuzu Frontera (UE) Workshop Manual | 2,216 |

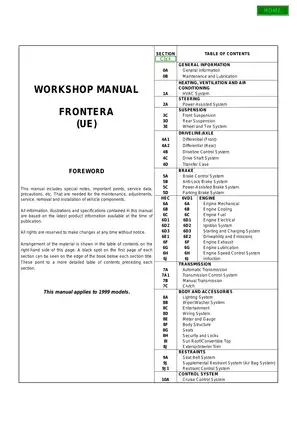

| Shared cover and model-year index — P/N RV99_02-01.E | 2 |
These right-hand-drive editions keep each year's procedures and diagrams separate, so you can match the repair information to the vehicle's configuration.
Engine coverage: The 1999–2000 editions cover X22SE 2.2L and 6VD1 3.2L gasoline engines. The 2001 engine chapters cover only the 6VD1; diesel engine repair is not included.
Text Search, Bookmarks, and Wiring Detail
Search and diagram navigation: The main text is searchable; labels embedded in diagram images are not. Bookmarks cover all three editions, although the 2001 SRS entry is mislabeled as Seat Belt System. Small pin numbers and wire-color labels require zooming.
The ZIP download contains one printable, 7,070-page English PDF, including the shared cover and model-year index listed above.
Engine Overhaul, Driveline Repair, and System Diagnosis
These selected coverage highlights outline the main workshop tasks rather than the full contents. Other topics include wiper/washer service and radio replacement.
-

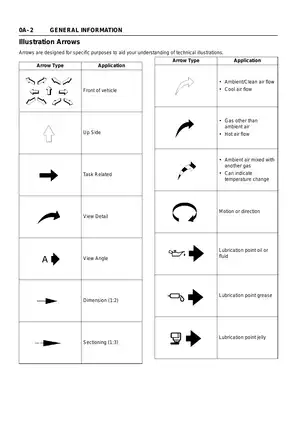

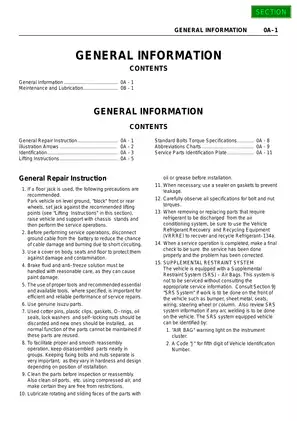

Engine repair: Step-by-step engine removal, timing-belt service, cylinder-head disassembly, valve-train repair, and bottom-end inspection.
-
Transmission service: 4L30-E automatic transmission removal, internal overhaul, and hydraulic diagnosis; MUA 5C manual transmission case and geartrain disassembly and reassembly.
-
Axles and four-wheel drive: Differential overhaul and gear setup, hub and drive-shaft service, Shift On The Fly diagnosis, and conventional and TOD transfer-case repair.
-
Steering, suspension, and brakes: Power-steering pressure testing and bleeding, suspension inspection, ABS/EHCU diagnosis, hydraulic brake bleeding, and the Tech 2 service-bleed routine.
-
Electrical troubleshooting: Engine, transmission, body, and SRS fault isolation using circuit diagrams, connector references, diagnostic charts, and electrical test specifications.
-
HVAC controls: Heating and ventilation diagnosis, manual and automatic A/C troubleshooting, self-diagnosis, and sensor and actuator checks.
These manuals are suited to technicians and experienced owners already comfortable with safe vehicle support, component-level disassembly, and electrical testing; several electronic diagnostic routines also assume access to an Isuzu Tech 2 or equivalent scan tool.
Engine Repair and Driveability
Internal-engine work covers inspection and reassembly of cylinder heads, valves and guides, camshafts, crankshafts, pistons, connecting rods, and cylinder blocks. Variant-specific procedures include X22SE balance-unit adjustment and 6VD1 valve-clearance shim selection.
Supporting sections handle cooling, fuel delivery, ignition, starting and charging, lubrication, induction, and exhaust. The 2001 driveability material also covers electric throttle control and ION-sensing fault diagnosis.
The engine sections warn that supporting the engine under the oil pan can damage the oil pickup.
Transmission Overhaul and Differential Setup
4L30-E: Fluid checks, road and stall tests, and shift/lockup charts help distinguish hydraulic and control faults before teardown. Overhaul coverage extends to the oil pump, converter housing, main and adapter valve bodies, clutch packs, sprag units, and accumulator.
MUA 5C: Internal work covers the intermediate plate, detents and shift arms, reverse and fifth gear, main and countershafts, synchronizer inspection, and final adjustment. Clutch chapters include hydraulic service.
Differentials: Setup procedures address pinion depth, bearing preload, backlash, tooth contact, and limited-slip clutch packs. Repair notes warn that prying the ring gear can damage both the gear and case; excessive pinion preload requires another new collapsible spacer.
Steering and 2001 Chassis Controls
Power-steering test results help separate pump faults from steering-unit leakage. Steering-unit procedures cover removal, tie rods, and bellows; an internally leaking unit is specified for replacement.
The 2001 Intelligent Suspension Control material includes flashing-code diagnosis and G-sensor and actuator testing. TOD control sections provide DTC charts and pin assignments, while the transfer-case chapter covers the clutch pack, chain, and shift motor.
Electrical Diagrams and Fault Diagnosis
The Wiring System chapters provide fuse and relay locations, grounding points, harness routing, component locations, and connector faces. OBD test logic, scan-tool data, and control-unit pin assignments support symptom-based fault tracing.
Named references include the X22SE ECM Wiring Diagram, 6VD1 PCM Wiring Diagram, and 4L30-E Electronic Control Diagram. Chassis and restraint references include the TOD Circuit Diagram, Intelligent Suspension Circuit Diagram, and SRS System Schematic.
HVAC Repair, Body Service, and Workshop References
A/C components: Procedures cover compressor and magnetic-clutch repair, evaporator and expansion-valve service, and refrigerant-line work. HFC-134a recovery, evacuation, charging, and leak testing use equipment such as refrigerant station J-39500.
Body configurations: The 1999–2000 editions show separate 2-door and 4-door lifting-point layouts. Body and wiring sections distinguish SWB and LWB assemblies and locations. Coverage includes frame dimensions, bumpers, instrument panel removal, seats, power windows, lighting, locks and keyless entry, sunroof/convertible-top parts, trim, and cruise control.
Maintenance and tools: Normal- and severe-use schedules accompany approved fluids, capacities, component torque tables, wear limits, clearances, and shim data. Tool references include power-steering tester 5-8840-0135-0 (J-29877-A) and high-impedance multimeter J-39200.
A/C refrigerant work, brake and steering hydraulics, SRS diagnosis, vehicle lifting, and engine or transmission removal require the manual's specified safety procedures and appropriate shop equipment.
A Preview of Valve Clearances and Balance-Shaft Backlash
The 6VD1 maintenance data lists cold valve clearances of 0.28 ± 0.05 mm intake and 0.30 ± 0.05 mm exhaust, alongside the valve-train chapters' shim-selection information.
For the X22SE balance unit, permissible gear-tooth backlash is 0.02–0.06 mm. Its adjustment section includes the measuring fixture and shim-selection procedure.
