Honda Fourtrax 300 TRX300/TRX300FW ATV Service Manual, 1995–2000
352 Pages • 1 Printable PDF (English) • Download
Honda Models Covered & Key Technical Specifications

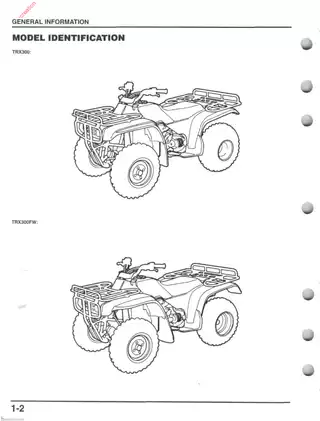

Models: Fourtrax 300, TRX300, TRX300FW
Sub-models / Variants: 2WD, 4WD
Model Years: 1995–2000 (1995, 1996, 1997, 1998, 1999, 2000)
-
Engine type: Air-cooled 4-stroke single cylinder
-
Displacement: 281.7 cc
-
Transmission: 5-speed constant mesh with reverse
-
Idle speed: 1400 ± 100 RPM
-
Engine oil capacity: 2.5 liters (disassembly), 2.2 liters (after draining)
-
Compression pressure: 1,250–1,450 kPa (178–206 psi)
-
Valve clearance: 0.15 mm (cold)
-
Fuel tank capacity: 12.5 liters
-
Spark plug gap: 0.8–0.9 mm
Honda Manual Features & Selected Content Preview
This Honda service manual covers 1995–2000 Fourtrax 300 TRX300 2WD and TRX300FW 4WD models, with separate 1995–97 and After '97 maintenance schedules and revision-specific information for California-emissions machines.

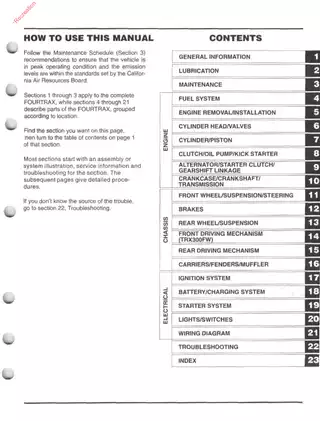

PDF Search, Bookmarks, and Wiring Detail
Navigation and diagram detail: Workshop text is not searchable. Embedded PDF bookmarks open the chapters and both full wiring diagrams. Small wiring labels require zooming; some wire-color codes remain indistinct, particularly in the 1995–97 diagram.
The download contains one printable English PDF with 352 pages, including one cover page and six memo pages.
Engine, Drivetrain, and Electrical Service
The following selected repair topics outline the manual's coverage. Other documented work includes spark-arrester cleaning and bumper, carrier, fender, and muffler removal.
-
Engine and fuel-system work: Engine removal and installation, carburetor overhaul, cylinder-head and valve repair, cam timing, valve-guide replacement, seat refacing, and piston inspection.
-
Clutch and transmission: Centrifugal and change-clutch service, oil-pump and kick-starter repair, gearshift linkage, crankcase separation, and internal transmission inspection.
-
Chassis and brakes: Model-specific suspension and steering work, rear-axle and swingarm service, hydraulic bleeding, master-cylinder repair, wheel-cylinder and adjuster service, and rear-brake repair.
-
4WD and final drive: Front drive-shaft and differential repair, front gear-case service, bearing and seal work, tooth-contact checks, backlash inspection, and spacer selection.
-
Electrical documentation: Full wiring diagrams, ignition, charging, starter, and oil-warning system diagrams, switch-continuity tables, ICM fault tracing, and peak-voltage testing.
It is best suited to technicians and mechanically qualified owners equipped with metric shop tools, pullers and drivers, a multimeter, and the specified electrical test equipment.
TRX300 vs. TRX300FW Coverage
The manual distinguishes front brake layouts, suspension and knuckle procedures, and 4WD components, helping you select the relevant service information before dismantling an assembly. The later material also addresses the California VE91D carburetor and emission-control configuration, the After '97 rear-final-drive oil-seal tool, and the optional fan circuit.
Honda recommends dealer-only service for specifically marked safety-related maintenance items. Pre-ride inspection is covered in the separate owner's manual.
Fuel System and Internal Engine Repair
Fuel-system coverage runs from fuel-tank and air-cleaner-housing removal through VE carburetor disassembly, inspection, assembly, and installation. Float, jet, starting-enrichment valve, diaphragm/vacuum-piston, pilot-screw, and high-altitude work is documented.
The top-end chapters cover the camshaft, rocker arms, timing chain and tensioner, valves, guides, seats, cylinder, piston, and rings, with related inspection limits and assembly data. Cylinder-head work can be performed with the engine in the frame; crankshaft, balancer, transmission, and output-gear service require engine removal.
Step-by-step procedures extend to both clutches, the oil pump, kick-starter mechanism, reverse lock, alternator, starter reduction gear, and starter clutch. Internal transmission work includes gear and bearing inspection and crankcase assembly. Section troubleshooting links clutch slip, shifting faults, abnormal noise, low compression, and lubrication problems to the relevant inspection area.
Chassis, Differential, and Final-Drive Work
Suspension and brakes: Separate tie-rod, knuckle, and front-arm procedures address the two drive configurations. Rear suspension coverage reaches the shock and pivot bearings; brake sections add shoe inspection, waterproof-seal replacement, mechanical adjusters, and rear brake-pedal service.
Front and rear drive: TRX300FW coverage reaches the differential clutch packs, slip-torque inspection, spring-seat selection, pinion and ring gear, side shafts, and front gear case. Rear final-drive procedures cover both models, including drive-shaft, axle, gear-contact, and spacer work.
The front drive shaft's inboard joint can be serviced, but its outboard joint cannot be disassembled. The case-bearing sections specify case replacement for a damaged nonremovable drive-pinion bearing in the front differential or rear final drive.
Electrical Fault Tracing
Weak/no-spark tracing covers the ICM, coil, pulse generator, alternator, and related switches. Battery-condition, leakage-current, regulated-voltage, stator, and regulator/rectifier checks help separate charging faults from battery or wiring problems.
Starter-motor disassembly and relay testing accompany neutral, reverse, oil-temperature, and alarm-circuit checks. The 1995–97 and After '97 wiring diagrams distinguish the electrical revisions, while system diagrams and diagnostic charts support component-level testing.
Factory Tools and Repair Cautions
Section tables provide torque specifications, service and wear limits, fluid data, contact-pattern criteria, carburetor settings, and electrical test values. Listed tools include clutch holder 07GMB-HA70100, differential inspection tool 07KMK-HC5010A, swingarm lock-nut wrench 07908-469000A, and After '97 oil-seal driver 07JAD-PH80101.
Reversed oil-filter installation can cause severe engine damage, while bottoming the carburetor pilot screw damages its seat. Incorrect ring-gear spacer selection in the front differential or rear final drive can lock the gears during cover tightening.
Brake and clutch sections warn against compressed-air or dry-brush cleaning because of hazardous dust.
Selected Front-Differential Inspection Values
For the TRX300FW front limited-slip differential, the manual specifies slip torque of 17–25 N·m. Its gear-backlash data distinguishes the 0.08–0.18 mm standard range from the 0.25 mm service limit, alongside the documented dial-indicator and spacer-selection checks.
