Suzuki LT-F500F Vinson ATV Service Manual 2003–2007 (P/N 99500-44054-01E)

The Suzuki LT-F500F Vinson factory service manual covers the 2003–2007 models under P/N 99500-44054-01E. It combines nine base sections with integrated FK4–FK7 supplements and includes E-03, E-28, and E-33 market specifications.

PDF Search, Bookmarks, and Diagram Detail

Text search and wiring labels: OCR text search is available, with gaps in diagram labels. Bookmarks cover the main sections and supplements, though one wiring-diagram bookmark has an inconsistent market label. Small wiring labels require zooming; some wire-color legends remain soft.

One printable English PDF contains 448 pages: 388 pages of base-manual material and 60 pages of integrated model-year supplements. The total includes five cover and introductory pages and eight blank pages.

Engine Overhaul, Shaft Drive, and Electrical Diagnosis

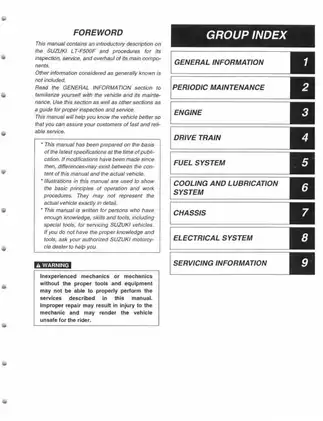

This selected content overview highlights major workshop procedures. Other covered topics include spark-arrester maintenance and parking-interlock cable adjustment.

• Engine repair: Step-by-step engine removal, internal disassembly, cylinder-head servicing, transmission inspection, and centrifugal clutch repair.

• Shaft-drive overhaul: Front differential and rear drive removal, bearing replacement, shim selection, backlash measurement, and tooth-contact inspection.

• Maintenance and testing: Service schedules, valve-clearance adjustment, brake bleeding, compression testing, oil-pressure checks, and clutch engagement and lock-up inspections.

• Fuel system: KEIHIN CVK36 carburetor disassembly, cleaning, needle-valve inspection, float-height adjustment, and fuel-level gauge testing.

• Cooling and lubrication: Radiator inspection, thermostat and temperature-switch testing, water-pump servicing, and oil-pump and pressure-regulator inspection.

• Brakes and chassis: Caliper and master-cylinder overhaul, steering-knuckle inspection, suspension servicing, swingarm bearings, and rear axle repair.

• Electrical troubleshooting: Charging, starting, ignition, and 2WD/4WD selection diagnosis, supported by wiring diagrams and component test specifications.

Written for mechanics who already have the knowledge, skills, and equipment—including special tools—needed to service Suzuki vehicles.

Engine Inspection and Transfer Assembly

The engine chapter identifies components serviceable with the engine installed and provides separate removal and bench-overhaul procedures. Inspection data cover valve-stem wear, piston-ring clearances, camshaft journals, crankshaft runout, and transmission gearsets.

Transfer cross-sectional views distinguish the original and revised output gear assemblies. Their gear, washer, and snap-ring arrangements help match the assembly procedure to the engine build.

The clutch section identifies the left-hand thread on the clutch shoe nut and specifies rotor holder 09930-44541. Treating that nut as a conventional right-hand-thread fastener risks damaging its threads.

Differential Shimming and Final Drive

Separate front and rear drive sections provide bearing installation, shim-selection tables, and tooth-contact examples. Backlash and contact-pattern checks are linked: changing the contact adjustment can also change backlash.

These references support checking the assembled gear relationship rather than selecting replacement shims from thickness alone. Component-specific torque tables and fluid-capacity data accompany the overhaul information.

Carburetor, Cooling, and Lubrication

Fuel diagnosis: Needle-valve inspection explains both fuel overflow and restricted delivery to the float chamber. The carburetor cautions also identify diaphragm damage caused by applying compressed air while the diaphragm remains installed.

Cooling references: Radiator-cap testing, fan-switch checks, and thermostat inspection help distinguish circulation and temperature-control faults. Cooling-circuit diagrams, engine coolant density-freezing point curves, and the engine lubrication system chart show the related flow paths and operating relationships.

Water-pump instructions include mechanical-seal and oil-seal installation details, with illustrations showing their orientation.

Electrical Fault Tracing and Chassis Details

Charging and ignition troubleshooting charts connect symptoms with generator, regulator/rectifier, coil, and battery tests. The 2WD/4WD section adds selecting-motor, relay, button, and position-switch checks.

Wire-harness routing views, cable routing drawings, and cooling-system hose routing diagrams support tracing connections and checking placement during reassembly.

The chassis chapter extends beyond pad replacement to hydraulic component inspection, hub bearings, steering components, and suspension assemblies. Brake work requires the manual’s fluid-handling and bleeding precautions; glycol-based DOT 4 fluid can damage painted and plastic surfaces.

Model-Year Service Changes

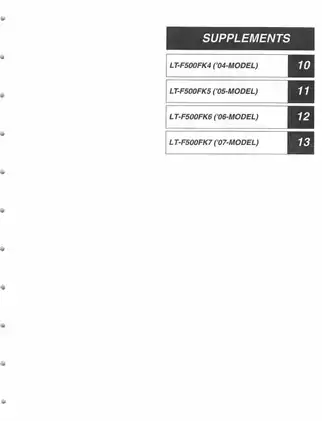

The supplements work alongside the preceding chapters. Updates include FK4 fuel-meter and fuel-level gauge procedures, FK5 brake-caliper mounting-bolt requirements, FK6 wiring information, and FK7 front and rear brake-hose routing.

Valve, Backlash, and Ignition Data Preview

For valve-clearance inspection with a cold engine at compression TDC, the intake specification is 0.05–0.10 mm.

With the gearcase covers assembled, specified backlash is 0.05–0.10 mm at the front differential and 0.08–0.13 mm at the rear final drive. The rear drive also has a separate specification for measurement without its cover.

Pickup-coil resistance is specified at 150–300 ohms between the blue and green leads at the disconnected generator coupler. The electrical section pairs these resistance checks with ignition-system troubleshooting and timing specifications.
