Yamaha MT-01(T) 2005 Service & Repair Manual (P/N 5YU1-AE1)
435 Pages • 1 Printable PDF (English) • Download
Yamaha Models Covered & Key Technical Specifications
Models & Model Codes: MT–01(T) (Europe: 5YU1; AUS: 5YU2)
Model Year: 2005
-
Engine displacement: 1670.0 cc
-
Compression ratio: 8.40:1
-
Engine type: Air-cooled 4-stroke, OHV, V-type 2-cylinder
-
Transmission type: 5-speed constant mesh
-
Drive system: Chain drive
-
Spark plug gap: 0.8–0.9 mm
-
Front fork oil capacity: 583.0 cm³ per leg
Yamaha Manual Features & Selected Content Preview
This Yamaha OEM service manual covers maintenance, troubleshooting, and repair for the 2005 Yamaha MT-01(T), including the European 5YU1 and Australian 5YU2 models. The December 2004 first edition (P/N 5YU1-AE1) covers vehicle identification, fuel injection fundamentals, and factory service procedures across eight chapters.
Searchable PDF and Wiring Diagrams
Text search and diagram detail: Search the manual text or use the bookmarks to jump to any of the eight chapters or the full wiring diagram. Small wire-color codes and connector labels are easier to read when enlarged. Two legacy return bookmarks point to external files.
The download is one printable English-language PDF with 435 pages. That total includes the front and rear covers, five introductory pages, eight chapter dividers, seven blank or nearly blank pages, a two-page wiring legend, and the full-page wiring diagram.
Engine Overhaul, Chassis Service, and Fault Diagnosis
These selected highlights cover major workshop jobs. The manual also includes starter clutch inspection and oil pump relief valve checks.
-
Periodic maintenance: The maintenance and lubrication schedule is backed by procedures for oil changes, compression testing, air filter replacement, and drive chain adjustment.
-
Engine repair: Step-by-step procedures cover engine removal and installation, crankcase separation, camshaft timing, hydraulic valve lifter bleeding, cylinder head service, and piston inspection.
-
Clutch and transmission: Inspect the clutch pack, service and bleed the hydraulic clutch, and check gearbox shafts, shift forks, and the shift drum.
-
Fuel and intake systems: Synchronize the throttle bodies, test the fuel pressure regulator, adjust the throttle position sensor, and check the rollover valves and idle speed control (ISC) system.
-
Chassis service: Disassemble and reassemble the front fork, service brake calipers and master cylinders, balance the wheels, and inspect the steering head and swingarm.
-
Electrical troubleshooting: Trace faults in the ignition, starting, charging, lighting, signaling, and immobilizer systems. Component tests cover the EXUP servo motor, decompression solenoid, and muffler cooling fan.
-
Workshop references: Exploded assembly views, component torque tables, wear limits, the engine oil lubrication chart, cable routing views, and system-specific circuit diagrams.

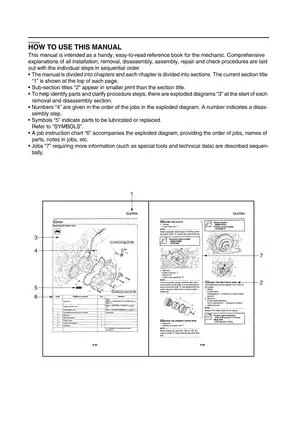

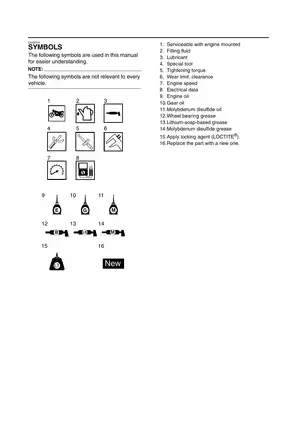

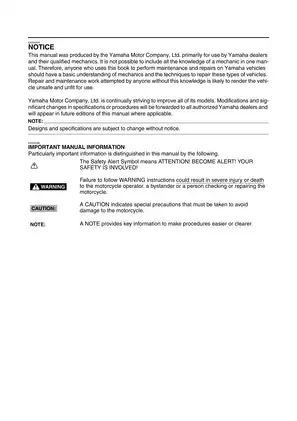

Yamaha wrote the manual primarily for its dealers and qualified mechanics. It assumes basic mechanical knowledge and familiarity with vehicle repair techniques.
Crankshaft Bearings, Clutch Damper, and Gearbox
The crankshaft section shows how Plastigauge measurements and the markings on the crankshaft and connecting rods inform bearing selection. Yamaha specifies new connecting rod bolts and angle-controlled tightening. A bolt turned past the specified angle must be replaced.
The clutch section distinguishes friction and steel plate checks from work on the built-in clutch boss damper. The hydraulic master and release cylinder sections warn that unsuitable solvents can swell and distort piston seals. Gearbox exploded views identify the main and drive shafts and their gear assemblies.
Fuel Injection, ISC, and EXUP
The ECU fault-code and diagnostic-mode tables distinguish intake air pressure sensor circuit faults from blocked or detached hoses on each cylinder. Use the corresponding entries to narrow down the fault before replacing parts.
Pressure regulator testing calls for fuel pressure adapter 90890-03176 / YM-03176. Yamaha covers throttle body removal and cleaning and directs technicians to leave the throttle body assembled. The manual also pairs mechanical EXUP cable adjustment with electrical checks of the servo motor.
Forks, Brakes, and Rear Suspension
Front fork coverage includes seal replacement, damper rod service, and bleeding, with the specified spring compressor shown in the disassembly procedure. The brake sections give disc inspection criteria and cover hydraulic bleeding.
The rear suspension section covers shock removal and linkage inspection. The shock contains pressurized nitrogen and is serviced as an assembly. Verify equipment load limits and secure the motorcycle before heavy chassis or suspension work.
Starting Circuits, Fan Tests, and Immobilizer Keys
The starting circuit cut-off diagrams show how the clutch, neutral, and sidestand switches affect starter operation. Charging and signaling flowcharts connect component tests to wiring checks. The muffler cooling circuit has separate tests for the fan motor and its temperature sensor.
The immobilizer section includes fault-code tables and key registration requirements for different replacement jobs. If the red code re-registering key is lost, existing registered standard keys can still start the motorcycle. Registering new keys in that situation requires replacement of the ECU and main switch with its immobilizer unit.
Sample Valve, Fuel Pump, and Final Drive Specifications
The valve clearance section specifies 0.00–0.04 mm for both intake and exhaust with the engine cold. The fuel system specifications list a fuel pump output pressure of 392.0 kPa.
The chain drive installation section specifies 95 Nm for the drive sprocket nut and identifies the matching washer and the nut to replace.
