Yamaha Models Covered & Key Technical Specifications

Models & Model Codes: YFM 225 Moto-4 — YFM225S (59V)

Sub-models / Variants: 2WD; constant-mesh, dual-range 5-speed forward transmission with 1-speed reverse

Model Years: 1986–1988 (1986, 1987, 1988)

Serial Numbers: JY459V*GC000101 (Vehicle starting number), 59V-000101 (Engine starting number)


  • Engine displacement: 223.2 cc

  • Idle speed: 1,400 ± 50 r/min

  • Intake valve clearance (cold): 0.05–0.09 mm (0.002–0.004 in)

  • Exhaust valve clearance (cold): 0.11–0.15 mm (0.004–0.006 in)

  • Compression pressure (standard): 883 kPa (9 kg/cm², 128 psi)

  • Recommended oil: SAE 10W30 or 10W40 Type SE motor oil

  • Fuel tank capacity: 12.0 L (3.2 US gal)

  • Spark plug gap: 0.6–0.7 mm (0.024–0.028 in)

  • Battery specification: 12 V, 14 Ah

Yamaha Manual Features & Selected Content Preview

Yamaha factory service manual for the YFM225S Moto-4, model code 59V, P/N Lit116160483. It covers maintenance, diagnosis, and repair of the air-cooled SOHC engine, shaft drive, and 2WD chassis.

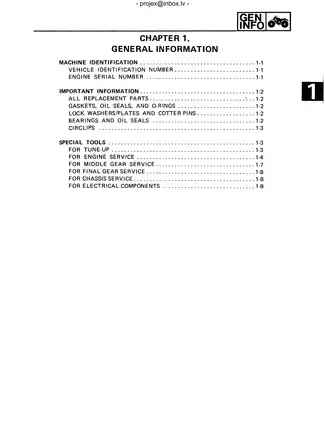

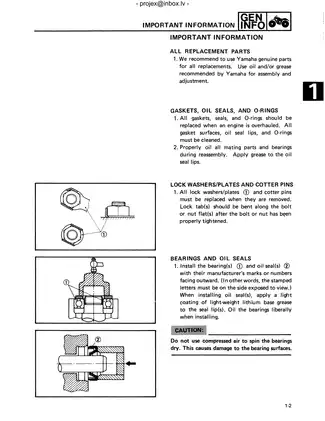

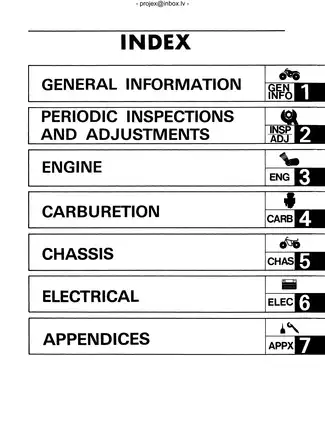

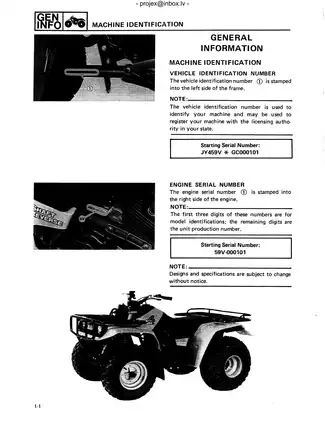

PDF Bookmarks, Wiring Detail, and Page Count

Search and diagram access: PDF text search is unavailable. Embedded bookmarks open the chapters and major service sections. Small wire-color and connector labels in the checked diagrams are readable when enlarged; the full wiring diagram requires page rotation.

One printable English PDF contains 251 pages total: 250 pages of YFM225S service material, including the symbol key, index, three memo pages, and wiring diagram, plus one appended “Sub Transmission” continuation page. That final page is a fragment, not a complete additional manual.


Engine Overhaul, Shaft-Drive Setup, and Electrical Fault Tracing

The following selected coverage highlights show the main workshop areas. Other topics include air-filter servicing and headlight beam adjustment.

  • Engine overhaul: Step-by-step procedures for engine removal, crankcase separation, cylinder-head repair, internal inspection, and reassembly.

  • Clutch and transmission: Primary and secondary clutch service, plus main transmission and sub transmission disassembly, inspection, and assembly.

  • Middle gear and final drive: Drive axle positioning, shim selection, gear lash adjustment, ring gear thrust clearance checks, and shaft-drive troubleshooting.

  • Mikuni VM24SH carburetor: Component inspection, float height adjustment, fuel level measurement, and idle speed adjustment.

  • Brakes and chassis: Front drum and rear disc brake service, rear axle bearing replacement, steering repair, and suspension inspection.

  • Electrical fault tracing: Starting, charging, CDI ignition, lighting, and auxiliary DC terminal diagnosis, supported by circuit diagrams and troubleshooting charts.

The manual is suited to mechanics with engine-rebuilding experience and access to precision measuring equipment and a hydraulic press.

Engine Inspection and Reassembly

Engine procedures address rocker arm and camshaft inspection, valve guide replacement, valve seat reconditioning, and piston, ring, and crankshaft checks. Rebuild coverage extends to cam timing, automatic cam chain tensioner installation, balancer gear alignment, and oil pump inspection.

The removal notes distinguish work that can be done with the engine installed from jobs requiring engine removal. Cylinder and flywheel magneto removal do not require taking out the engine; complete engine removal requires removing the rear wheel drive assembly.

Separate Transmission and Sub Transmission exploded views identify the gear and shaft assemblies. The accompanying text covers shift fork and shift cam inspection, engagement dog wear, and operational checks during assembly.

Shaft-Drive Diagnosis and Gear Positioning

The shaft-drive troubleshooting charts connect noise, jerky operation, and loss of drive with possible bearing, gear, or shaft faults. They help distinguish wheel-bearing symptoms from final-drive faults when deciding which components need inspection.

Setup procedures explain shim and thrust washer selection after gear-case, bearing-housing, or bearing replacement. The middle gear section warns that overtightening the bearing housing during setup can reduce gear lash enough to damage the gear teeth.

Carburetor, Brakes, and Suspension

The carburetor specifications identify the 59V00 marking. Its sectional view traces air, fuel, and mixture passages, while the service text addresses the needle valve, throttle slide, starter plunger, and jets.

Chassis procedures cover brake lining and pad inspection, rear disc thickness and deflection checks, and brake lever and pedal adjustment. Steering work includes toe-in adjustment, tie-rod end inspection, and steering shaft bushing replacement.

Front lower arm bushing checks and swingarm pivot bearing inspection are also covered. Rear shock service addresses inspection, replacement, spring preload adjustment, and handling and disposal of the pressurized unit. Internal damper rebuilding is not covered.

Starting, Charging, and Ignition Tests

The YFM225S Wiring Diagram provides wire colors and connector layouts. Starting-system tests cover the neutral interlock, starter relay, cut-off relay, and starter motor internals.

Ignition diagnosis includes coil resistance and spark gap testing; charging checks address the stator and regulator/rectifier. The charging chapter explains how disconnecting the battery while the generator is running can damage the system’s semiconductors.

Workshop Reference Data and Special Tools

Appendices provide valve-clearance and compression-test data, spark plug specifications, fluid capacities, wear limits, and electrical test values. Engine and chassis torque tables include cylinder head bolts, oil pump screws, and crankcase screws. The Lubrication Diagram and Cable Routing illustrations support reassembly.

Special tool references identify crankcase separating tool YU-01135 and fuel level gauge YM-01312-A. Final-drive gear-lash measurement calls for tool YM-01230 with dial gauge YU-03097.

Because working on ATVs involves heavy machinery and combustible systems, there are inherent safety risks. Always consult the full factory data and observe proper workshop safety protocols before beginning any hands-on maintenance.

A Preview of Carburetor and Final-Drive Measurements

The VM24SH float-height specification is 21.5 ± 1.0 mm, measured from the float-chamber mating surface with the gasket removed. The stated measurement condition is an inverted carburetor with the float arm resting on, but not compressing, the needle valve.

For final-drive setup, gear lash measured with the specified measurement tool is 0.2–0.4 mm. Ring gear thrust clearance is specified separately at 0.1–0.2 mm, with a Plastigage check and thrust washer selection procedure.
