Suzuki GSF1200 / GSF1200S Bandit 1996–1999 Service Manual (P/N 99500-39134-01E)

The Suzuki GSF1200/GSF1200S Bandit service manual, P/N 99500-39134-01E, is the fourth edition, July 1998. It combines the 1996 base procedures with model-specific chapters for 1997–1999, including the ABS-equipped SA versions.

Bookmarks, Wiring Detail and PDF Format

Search and diagram detail: PDF text search is not available. Embedded bookmarks link to the main sections and model-specific chapters. Small wire-color codes and connector numbers on the checked wiring diagrams are readable when enlarged; zooming and rotating the sideways diagrams helps with dense layouts.

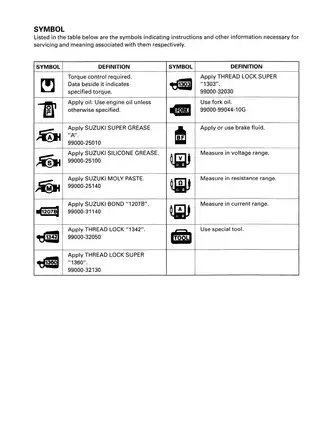

One printable English PDF contains 387 pages, including two cover pages, three introductory pages, two blank pages, one model photo page and one publication-details page. The model-specific chapters are included in that total.

Engine Overhaul, Carburetor Setup and ABS Fault Tracing

These selected workshop topics show part of the manual’s coverage. Other subjects include fuel-meter testing and tubeless-tire service.

• Engine repair: Engine removal, teardown and reassembly, valve-seat service, camshaft inspection, and crankshaft bearing-clearance measurement.

• Fuel and lubrication: Mikuni carburetor disassembly, cleaning, float adjustment and synchronization, plus throttle-position sensor checks and SACS lubrication diagrams.

• Clutch and transmission: Hydraulic clutch bleeding, master- and release-cylinder service, clutch-plate inspection, transmission disassembly, and gearshift checks.

• Brakes and chassis: Brake caliper and master-cylinder repair, front-fork overhaul, steering-bearing replacement, and swingarm and rear-linkage service.

• Electrical diagnosis: Charging-system tests, starter-motor repair, digital-ignition troubleshooting, side-stand interlock checks, and model- and market-specific wiring diagrams.

• ABS variants: Malfunction-code diagnosis, wheel-speed sensor checks, relay and ECU circuit testing, and hydraulic-unit removal, inspection and installation.

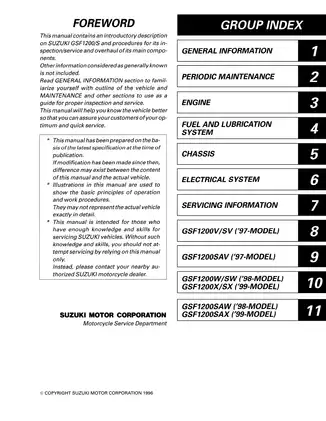

Suzuki intended this manual for users who already have enough knowledge and skill to service its motorcycles; general mechanical knowledge is assumed.

Internal Engine Inspection and Reassembly

Component-level specifications cover the cylinder head, camshafts, pistons and crankshaft bearings. Color-coded bearing-selection tables and crankshaft thrust-bearing data support internal condition assessment, alongside compression and oil-pressure test procedures.

Step-by-step instructions cover cam-chain timing and tension-adjuster installation, with cylinder-head fastener positions and tightening order. The transmission section view identifies gear, washer and circlip positions; starter-clutch inspection and installation are also documented.

The valve-seat section warns that lapping compound after the final cut spoils the intended seating finish. Plastigauge cautions explain how crankshaft movement can invalidate bearing-clearance readings.

The oil pump is supplied as an assembly; the manual does not provide an internal pump overhaul procedure.

Mikuni Carburetors and SACS Oil Circuits

Carburetor setup: Mikuni BST36SS procedures include gauge calibration before synchronization, float-height adjustment and throttle-position sensor testing. The carburetor balancer is identified as tool 09913-13121.

The Engine Lubrication System Chart and Cylinder Head Cooling System Chart trace the SACS oil circuits, with separate oil-cooler and hose documentation.

Brake, Fork and Steering Service

Brake sections go beyond pad replacement to seal, piston and bore inspection. Front-fork instructions include oil-level measurement and reassembly; steering service includes bearing installation and steering-tension adjustment.

Rear-suspension coverage includes linkage bearings, swingarm service and suspension settings. The rear shock absorber is inspected and replaced as a unit, rather than internally rebuilt.

Always verify safe lifting points and stabilize the motorcycle completely before applying high torque to chassis or engine components to prevent injury or equipment damage.

ABS Codes, Connectors and Component Checks

The GSF1200SAV chapter connects warning-light code interpretation with circuit tests and post-repair verification. The ABS Coupler Connection Diagram and ABS Wiring Diagram link connector identification to the diagnostic charts.

Tool references include ABS test switch 09930-82710. Used alongside the base chapters, the ABS instructions help distinguish conventional brake service from sensor, wiring and control-system faults. Hydraulic-unit coverage includes inspection and replacement; internal disassembly is excluded.

Selected Valve, Oil and Fastener Specifications

Cold intake valve clearance is 0.10–0.15 mm. Engine oil capacities distinguish 3.3 L for an oil change from 4.6 L after an engine overhaul.

The base specification lists front-fork oil capacity as 516 ml per leg. Later model tables distinguish 514 ml for E-03, E-28 and E-33 markets from 516 ml for other markets.

The engine-removal section specifies exhaust pipe clamp bolt torque at 23 N·m (16.5 lb-ft), alongside component locations and the related removal instructions.
