Suzuki DR750S / DR800S 1988–1997 Factory Service Manual (P/N 99500-47010-01E)

Suzuki’s factory service manual, P/N 99500-47010-01E, combines the DR750S base chapters with DR750S and DR800S model-year supplements. This is the 10th edition, July 1996, with coverage through the 1997 model.

PDF Search, Bookmarks and Diagram Detail

Search and navigation: PDF text search is not available. Embedded bookmarks group the chapters and individual pages, although their labels are mostly filenames. Small wiring-diagram labels require zooming; some of the fine print remains soft.

One printable, 345-page PDF, including a one-page 1988 appendix and a one-page publication imprint.

Engine, Fuel-System and Chassis Repair

These selected service topics show part of the manual’s scope. Other sections cover battery charging and combination-meter testing.

• Engine repair: Step-by-step engine removal and reinstallation, crankcase separation, cylinder-head servicing, and cam-drive and balancer-chain assembly, with inspection limits and timing references.

• Clutch and transmission: Plate inspection, shift-fork checks, starter-clutch testing, and exploded assembly views support internal repair and reassembly.

• Fuel delivery: Carburetor disassembly, needle-valve inspection, throttle-valve balancing, and vacuum-operated fuel-pump checks address fuel-delivery and running problems.

• Electrical troubleshooting: Starting, ignition, and charging diagnosis, circuit schematics, and market-specific wiring diagrams for E-22 (West Germany), E-28 (Canada), and other markets.

• Brake service: Front-caliper and master-cylinder repair, hydraulic bleeding, and rear-brake assembly information for the applicable drum- and disc-brake versions.

• Suspension and steering: Fork rebuilding, steering-bearing service, rear-suspension bearing work, and shock-spring preload adjustment extend coverage beyond routine maintenance.

The repair sections suit readers already comfortable with engine teardown and electrical testing, with access to the specified measuring equipment and special tools.

Model Coverage and Year-Specific Changes

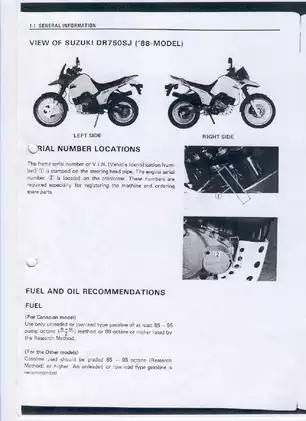

The base chapters cover DR750SJ (1988), followed by the DR750SK (1989) supplement. DR800S coverage runs through DR800SL (1990), DR800SM (1991), DR800SN (1992), DR800SP (1993), DR800SR (1994), DR800SS (1995), DR800ST (1996), and DR800SV (1997).

The later sections update the earlier chapters rather than repeat every repair procedure. They refer back to those chapters for unchanged work. Regional references include France, Canada, and Australia, with additional market-specific specifications and wiring variations.

The 1989 supplement documents the change from a rear drum brake to a hydraulic rear disc. The 1990 material distinguishes the DR800’s crankshaft, connecting rod, and piston from the DR750 components. Later updates cover revised clutch parts, an added balancer-chain guide, and the 1993 pull-and-return throttle-cable arrangement.

Missing printed pages: This PDF omits original pages 3-24 and 3-38 in the engine chapter, 12-7 and 12-10 in the 1993 supplement, and 16-2 in the 1997 supplement.

Engine Inspection and Assembly References

Compression and oil-pressure tests support diagnosis before teardown. Symptom/cause/remedy tables address hard starting, poor idle, power loss, clutch slip, and shifting faults.

A separate in-frame service chart identifies components that can be removed without pulling the engine, helping you assess the scope of the job before disassembly.

Cylinder-head work extends from valve-clearance inspection to valve-seat servicing and camshaft-journal checks with Plastigauge. Piston, cylinder, and connecting-rod checks have their own wear criteria. Balancer-shaft installation notes identify the longer rear shaft. The 1992 chapter revises balancer-chain tensioning.

Transmission cross-sections show washer and circlip positions for reassembly. Suzuki identifies the required special tools, including crankcase separating tool 09920-13120 and cam-chain tension-adjuster locking tool 09917-62420.

The decompression-lever instructions warn that incorrect adjustment can cause starting difficulties or engine damage.

Fuel Delivery and SACS Lubrication

The Mikuni BST33SS dual-carburetor fuel system is supported by identification and jetting tables, float-height specifications, and pilot-screw presets for the applicable versions.

Fuel Pump Mechanism cutaways explain diaphragm and check-valve operation. The Engine Lubrication/Cylinder Head Cooling System Chart traces oil distribution, with separate material on the sump filter and oil cooler.

Electrical Diagnosis and Starting-System Updates

Electrical repair information includes regulator/rectifier and CDI resistance matrices, switch-continuity charts, and starter-motor brush and commutator inspection.

The 1991 supplement adds starter torque-limiter slip testing and solenoid-operated decompression checks. Its De-Compression Control and Starter System schematic includes connector identification and an operating-time chart.

The 1996 supplement adds carburetor-mounted throttle-position sensor inspection and positioning, revised CDI checks, and updated harness routing. The resistance tables reference Suzuki pocket tester 09900-25002, with cautions that other meters can give different readings.

Chassis Inspection and Service Data

Maintenance schedules cover brake systems and drive-chain tensioning. Wheel inspection covers axle and rim runout, hub bearings, and sprocket-drum dampers. The 1996 chapter adds updated front-brake and wheel assembly drawings.

Rear-suspension material covers early full-floating and later link-type layouts, including swingarm and cushion-lever/rod bearing service.

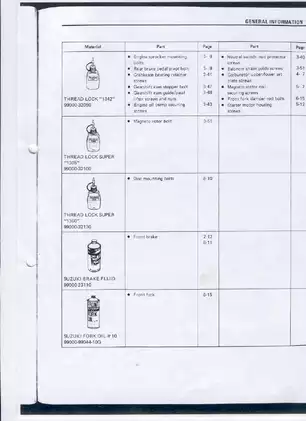

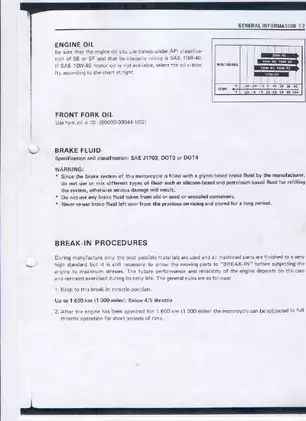

Fork reassembly cautions identify the risk of damaging the Teflon-coated bushings during installation. Component-specific torque tables cover engine fasteners, chassis bolts, and swingarm hardware. Fluid references document engine-oil quantities, brake-fluid specifications, and fork-oil requirements.

Valve-Clearance Examples by Model

The DR750SJ maintenance section specifies 0.05–0.10 mm for both intake and exhaust valves with the engine cold.

The DR800SM service table separates the cold settings: 0.08–0.13 mm intake and 0.15–0.20 mm exhaust.

Follow the applicable model-year instructions and the manual’s safety precautions for brake, fuel-system, and electrical work.
