JCB 531-70, 535-95, 536-60 & 541-70 Telehandler Service Manual 2005–2012

JCB Loadall service manual 9803/3730-08 covers 526-56, 531-70, 533-105, 535-95, 535-125, 535-125 HiViz, 535-140, 535-140 HiViz, 536-60, 536-70, 540-140, 540-170, and 541-70 configurations. It combines machine identification, scheduled maintenance, system operation, fault finding, repair procedures, schematics, and calibration data, with separate identification information for European Tractor Type Approved builds.

PDF Search, Diagram Detail and Page Count

Navigation and small labels: PDF text search and embedded bookmarks are not available. Use the section contents and printed cross-references to locate procedures. Small wiring labels and dense connector tables require zooming; the sampled diagrams remain readable when enlarged.

One printable, English-language PDF contains 1,809 pages, including the intentionally blank page in the Flowshare section.

Boom Service, Hydraulic Testing and Drivetrain Diagnosis

The following is a selected content overview. Other documented topics include quick-release coupling service and throttle-pedal position sensor replacement.

• Routine maintenance: Engine-specific service schedules, greasing maps, fluid specifications, fuel-system bleeding, battery care, and inspection requirements.

• Boom and LMI: Step-by-step boom removal and dismantling, wear-pad replacement, shimming, inclinometer work, and Load Moment Indicator testing and calibration.

• Hydraulics: Parallel and Flowshare system diagnosis, pump testing, valve-block service, accumulator charging, hydraulic-ram repair, and circuit bleeding.

• Transmission and axles: PS750, PS760, PS764, PS766, and SS700 coverage, torque-converter tests, ShiftMaster diagnosis, propshaft work, and SD55/SD70/SD80 axle service.

• Brakes and steering: Brake fault finding, leakage tests, bleeding, park-brake service, steering re-phasing, priority-valve work, and steer-mode diagnosis.

• Electrical systems: Configuration-specific wiring schematics, harness drawings, connector references, charging-system tests, starting-circuit diagnosis, and harness repair.

• Electronic diagnostics: CANbus and LMS fault codes, ServiceMaster setup, SE-engine actuator tests, ECU setup, and ShiftMaster Diagnostics guidance.

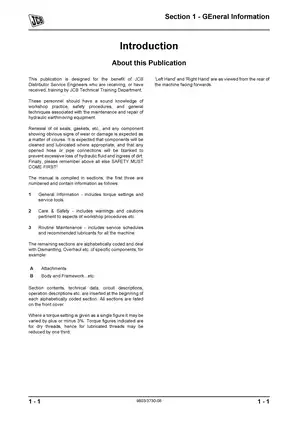

Written for JCB distributor service engineers receiving or having completed JCB technical training, the manual assumes established workshop skills and knowledge of hydraulic-equipment maintenance and repair.

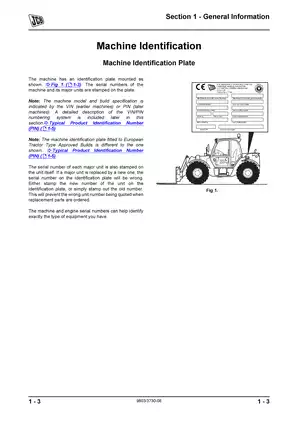

Machine Identification and Engine Coverage

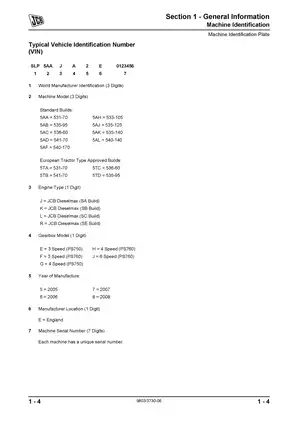

The VIN/PIN tables distinguish model, engine, and gearbox configurations before parts or procedures are selected. Later sections separate work by lift height, HiViz status, analog or digital LMS instrumentation, hydraulic-control system, axle type, and serial break.

Cooling and engine removal: Cooling-pack procedures distinguish intercooled and non-intercooled installations, with separate SE-engine coverage. Section K also documents JCB Dieselmax specifications, Tier 2/Tier 3 identification, cold-start circuits, SE-engine ECU interfaces, engine removal, and separation from the bevel box.

Internal engine work: This is not a full internal engine rebuild manual. The engine reference table directs SA/SB/SC/SD/SF work to JCB Engine Service Manual 9806/3000 and SE work to 9806/3030; those separate manuals are not included.

Boom, Cab and LMI Service

Boom-shimming drawings distinguish 2-, 3-, and 4-stage assemblies and provide model-specific wear-pad arrangements and clearance data. The LMI material adds fault codes, calibration charts, axle-transducer replacement, and tests using the 892/00905 LMI Test Box.

Cab and framework procedures cover air-conditioning diagnosis and service, direct glazing, ROPS/FOPS checks, fuel- and hydraulic-tank removal, and cab components. Air-conditioning fault charts distinguish low refrigerant charge, restricted circulation, air in the system, and compressor faults.

Parallel and Flowshare Hydraulics

Parallel-system coverage separates double- and triple-pump layouts. Flowshare sections distinguish LSP Gearpump, LSP Variflow, and LSP Electro Servo systems, including load sensing, pressure compensation, pilot control, and valve-block dismantling.

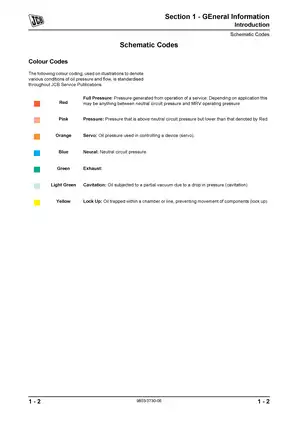

Dual-lever, single-lever, servo, and electro-servo controls have their own circuit information. Representative drawings include Flowshare hydraulic schematics, Smooth Ride System hydraulic and electrical circuits, and the 540-170 boom/stabilizer interlock.

Flow and pressure tests identify the relevant test points and equipment, including the 892/00268 Flow Monitoring Unit and 892/00253 Hydraulic Pressure Test Kit. Ram sections add sealing procedures and separate bleeding coverage for boom-extension, tilt, and sway circuits.

The ram precautions explain how welding can cause internal sparking and cylinder damage even when the weld is elsewhere on the machine; contamination during reassembly can also damage seals and other hydraulic components.

Transmission, Brakes and Steering

Transmission chapters add drive-path diagrams, ECU connections, stall tests, pressure/flow tests, speed-sensor checks, clutch-leakage diagnosis, oil flushing, and oil-cooler testing. Removal procedures cover gearboxes, torque converters, axles, propshafts, and SS700 cable-shift assemblies. The tool references include the 892/01110 Torque Converter Alignment Tool.

Internal drivetrain and service-brake work: Axle, main gearbox, bevel gearbox, and service-brake dismantling procedures are directed to the separate Transmissions Service Manual 9803/8610, which is not included.

Brake coverage here includes external-caliper and gearbox-integral park brakes, master-cylinder and servo-unit replacement, and vacuum and piston-seal leakage tests. Steering material adds proximity-switch settings, steer-ram and steer-mode-valve service, and hydraulic steer-unit replacement, supported by 2-wheel, 4-wheel, and crab-steer diagrams.

Electrical and Network Diagnostics

Electrical schematics distinguish analog-display and digital-LMS configurations, transmission types, lift heights, and engine builds. Harness drawings connect wire numbers, connector positions, and component references to the relevant circuits.

Electronic Data Systems coverage includes CANbus operation, LMS service-hour reset, fault-code logs, actuator tests, ECU setup, solenoid-test modes, and connection troubleshooting. ServiceMaster and ShiftMaster Diagnostics 2.3 screen guides accompany the 892/01033 Electronic Test Kit and 892/01096 Speed Sensor Test Harness references.

Maintenance References and Workshop Precautions

Separate schedules cover SA/SB/SC/SD/SF and SE engines, with pre-start checks, functional tests, final inspection, coolant mixtures, air-filter service, and valve-clearance checks. Fuel guidance addresses approved diesel specifications, B20 servicing requirements, sulfur content, additives, and contamination.

Reference tables include component torques, approved fluids, capacities, test pressures, inspection limits, and electrical values. Fastener data distinguishes zinc-plated and Dacromet finishes, UNF grade S hardware, metric grades 8.8/10.9/12.9, and hydraulic connections.

The 320/20050 engine lifting brackets are specified for the engine alone; using them for the combined engine/transmission assembly can overload the lifting equipment. Raised-boom work, hydraulic pressure, brake systems, refrigerant handling, heavy lifting, and electrical isolation require the safety procedures in the publication.

Examples of Cold Valve-Clearance Specifications

The engine specifications list cold inlet valve-tip clearances of 0.19–0.27 mm for SA, SB, SC, and SE engines, compared with 0.35 mm for SD and SF engines.

The listed cold exhaust valve-tip clearance is 0.56–0.64 mm for all six builds.
