2001 Xerox Phaser 7700 Color Laser Printer Service Manual (P/N 071-0860-01)

• Document identity: A 379-page PDF of Xerox's Phaser 7700 Color Printer Service Quick Reference Guide, P/N 071-0860-01, printed November 2001.
• Model and option coverage: Applies to Phaser 7700 DN, GX, and DX configurations, covering the duplex unit, Multi-Purpose Tray, Lower Tray Deck, High-Capacity Feeder, and Finisher where installed.
• Diagnostics: Covers the system boot sequence, POST and LED blink codes, chain/link fault identification, voltage checks, interlock circuits, and front-panel service tests for sensors, motors, fans, clutches, and solenoids.
• Repair procedures: More than 80 numbered removal and replacement procedures address the print engine and Finisher, including the fuser, second bias transfer roller, developer housings, toner dispense system, accumulator belt, laser unit, control boards, power supplies, drives, trays, and feeder hardware.
• Adjustment and data procedures: Details DC685 RegiCon alignment, Belt Edge Learn, ATC sensor setup, Tech Rep fault clearing, CRU life-counter resets, and engine NVRAM reset/store operations required around specific component replacements.
• Technical reference: The List of Figures catalogs 165 entries; separate sections supply print-engine and Finisher wiring diagrams, sensor maps, FRU parts lists, tool part numbers, test-print interpretation, and specification tables.

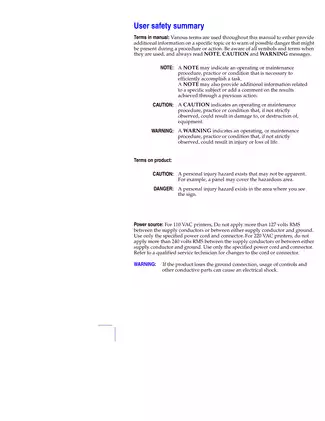

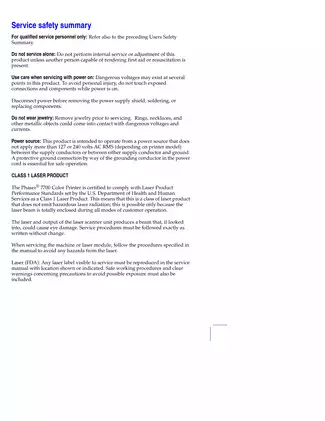

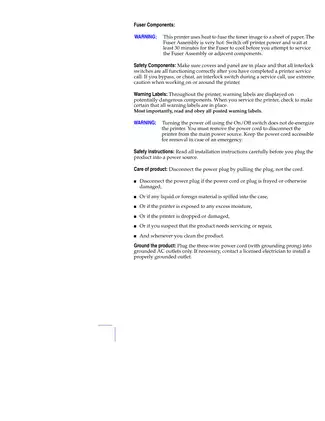

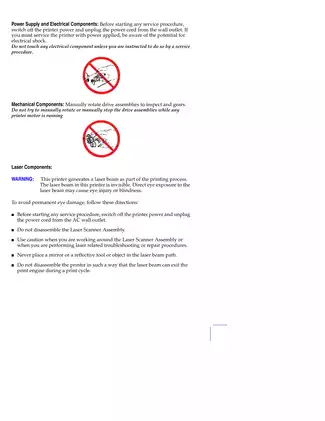

This factory guide is limited to qualified service personnel. Xerox states that Phaser 7700 service certification requires product training, while built-in tests are designated for Xerox personnel and authorized providers. It suits trained printer technicians and repair shops familiar with electrical testing and color-laser print engines, not beginners. Safety coverage addresses AC isolation, high-voltage circuits, ESD-sensitive boards, the enclosed laser system, and the hot fuser.

Configuration-Specific Coverage

The overview distinguishes the factory configurations: DN with 128 MB of RAM; GX with 256 MB, a three-tray Lower Tray Deck, and PhaserMatch 7700 ICC Color Matching Software; and DX with 256 MB, a High-Capacity Feeder, and the Finisher. All use an internal hard drive and built-in duplex unit. Auxiliary-feeder coverage identifies the control board, motors, paper-select switches, lift/feed components, and separate Lower Tray Deck and High-Capacity Feeder FRUs.

The Finisher is treated as a serviceable subsystem, with fault codes, active tests, sensor maps, replacement procedures, FRU lists, and electrical diagrams. Covered hardware includes the horizontal transport, gate-in solenoid, set-clamp clutch, eject roll, stacker motor, cam bracket, staple unit, compiler tray, and control board. Finisher theory of operation and Configuration Page details are assigned to the separate Printer Service & Support Resources CD-ROM and are not contained in this PDF.

Diagnostics, Test Prints, and Fault Isolation

The POST section separates hard and soft faults and explains health-LED/front-panel reporting. Chain/link tables lead into component-level fault trees for the laser and polygon motor, ATC sensors, transfer roller, accumulator-belt functions, fuser, drum motor, print cartridges, engine electronics, high-voltage supply, tray lift system, and Finisher. Troubleshooting also covers no-power and no-ready conditions, false door or tray messages, option communication, media jams, network problems, and print-image defects.

Service Diagnostics provides sensor-state checks and active tests for electromechanical loads. Laser Check, Halftones, Grid 1-Dot, and Fast Scan 8 Tone prints help separate print-engine faults from image-processor or host-software problems, assess toner delivery, and diagnose registration or paper-path behavior.

Repair, Calibration, and NVRAM Work

The RegiCon section documents Belt Edge Learn, coarse/fine skew, in/out skew for magnification, center skew for magnification balance, Coarse RegiCon Initialization, and ATC Sensor Setup. These procedures are tied to laser-unit, print-cartridge-plate, Mark-On-Belt sensor, and developer work. NVRAM coverage spans color, margin, paper, job, network, PostScript, and engine resets, plus storing engine calibration values to the hard drive around affected repairs.

A replacement developer housing has its own ATC tag value; failing to enter it can upset color balance and shorten developer life. The accumulator belt must be fully seated and operated with the belt cleaner installed, because forcing the main lever or running the belt without its cleaner can cause severe or permanent belt damage.

Diagrams, Parts, Tools, and Specifications

Named references include Print Engine Sensors and Switches, Convenient Voltage Measurement Point Locations, RegiCon Flowchart, Accumulator Belt Assembly, Finisher Sensor, Interlock, and Switch Locator Maps, and the Finisher Block Diagram and Wiring Diagram. Full-page print-engine schematics cover control, power, sensors, motors, toner/developer functions, and option interfaces.

Exploded FRU sections give Xerox part numbers for electrophotographic components, boards, power supplies, motors, paper-feed hardware, wiring, auxiliary feeders, and Finisher assemblies. The tool table lists magnetic driver 003-0293-00, Phillips bits 003-0335-00/003-0336-00, hex bit 640600 Mag 27020, and nutdriver 600T2123. Other tables cover dimensions and clearances, functional/electrical specifications, environmental limits, supported media and print area, CRC life data, supplies, accessories, and Finisher specifications.
