Suzuki GSX-R750 2000–2002 Service Manual Set (P/N 99500-37111-03E)

The base sections and later updates identify hardware and service differences that can affect parts selection and the correct repair procedure. Unchanged K2 work refers back to the main service sections rather than being repeated.

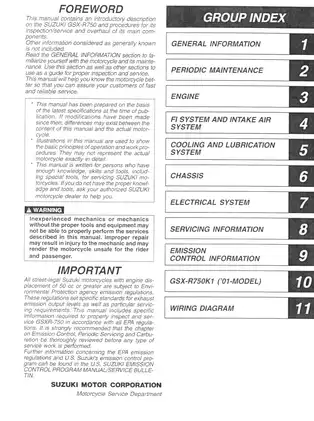

Bookmarks, Wiring Detail, and PDF Contents

Search and diagram detail: PDF text search is not available. Embedded bookmarks provide access to the main chapters, K1/K2 updates, and wiring diagrams. Small wire-color codes and ECM terminal numbers on the large wiring sheets require zooming.

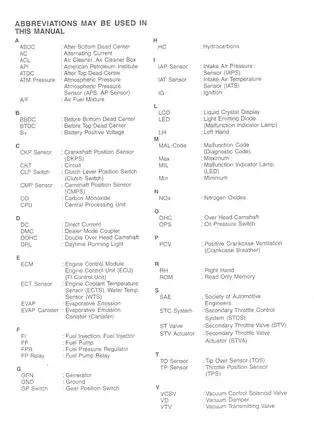

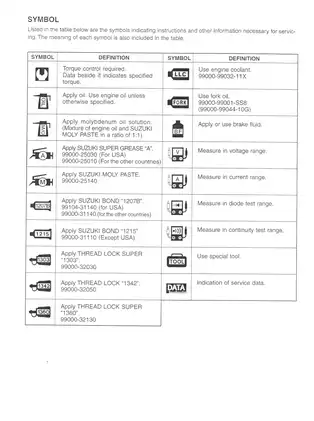

ZIP download containing one printable, 498-page PDF. The total includes 11 wiring-diagram sheets, the cover, six introductory/reference pages, one publication page, and three blank pages.

Engine Overhaul, FI Diagnosis, and Chassis Service

These selected workshop topics outline the main repair areas. Further examples include lubrication-point illustrations and compression-pressure testing.

• Market versions: GSX-R750 applications for the U.K. (E-02), U.S. (E-03/E-33), EU (E-19), Australia (E-24), and Canada (E-28); GSX-R750UD/UF variants are listed for the EU (E-19).

• Engine and transmission: Engine removal and installation, cylinder-head and valve service, camshaft and cam-chain work, clutch repair, transmission teardown, and internal component inspection.

• Fuel injection: ECM and sensor fault isolation, user- and dealer-mode self-diagnosis, fail-safe operation, fuel-pump and injector checks, throttle-body service, and secondary-throttle actuator adjustment.

• Cooling and lubrication: Cooling-circuit checks, radiator and hose service, thermostat and fan testing, water-pump overhaul, and oil-pressure diagnosis.

• Suspension and wheels: Front-fork seal and bushing work, steering-head and steering-damper service, handlebar removal, rear-suspension and swingarm work, wheel bearings, and tire servicing.

• Brakes and drive chain: Pad and fluid replacement, caliper and master-cylinder overhaul, disc inspection, brake bleeding, and drive-chain cutting and joining.

• Electrical diagnosis: Charging, starting, side-stand/ignition-interlock, ignition, combination-meter, lighting, switch, and battery troubleshooting, supported by circuit diagrams and component tests.

Written for mechanics who already have the knowledge, servicing skills, and special tools needed to work on Suzuki motorcycles.

K1 and K2 Service Changes

The K1 material documents its revised clutch drive-plate arrangement and inspection requirements, plus changes to fuel-pressure inspection, the throttle stop screw, AP sensor, gear-position switch, and engine mounting.

The K2 supplement covers further clutch changes, the cam-chain tension-adjuster cap, C28/C29 FI fault diagnosis, fuel-pump and throttle-body revisions, and changes at the front axle, swingarm pivot boss, and torque link. It also supplies updated harness and hose routing.

Internal Engine Repair and Fluid Systems

Step-by-step procedures cover engine disassembly, inspection, reassembly, and installation, with a separate guide to components serviceable in the frame. Internal coverage includes pistons and rings, crankshaft and connecting rods, journal and thrust bearings, crankcase, gearshift system, starter clutch, and generator.

Lubrication references address the oil pump, regulator, strainer, oil jet, filter, and pressure switch. Water-pump procedures extend to bearings, seals, and reassembly; cooling checks distinguish the radiator cap, thermostat, fan switch, and temperature sensor.

FI Fault Tracing and Electrical Tests

The FI chapters explain injection control and fuel delivery, map ECM and sensor locations, and connect malfunction codes with circuit-specific fault charts. Complaint analysis and reset procedures support diagnosis alongside fuel-pressure testing, pump-relay checks, filter cleaning, fast-idle adjustment, throttle-valve synchronization, and TPS setting.

The manual warns that forcing a meter probe into the terminal side of a coupler can bend or spread contacts and create a poor connection after testing.

Electrical flowcharts address a battery that runs down, a starter that will not operate, and weak or missing spark. Symptom-based reference charts also cover engine, cooling-system, chassis, brake, and battery faults.

Chassis Repair and Assembly Limits

Bodywork procedures identify panel fasteners and mounting arrangements. Suspension work includes fork setup, steering-bearing adjustment, swingarm pivot clearance, and rear-shock inspection and settings; internal disassembly of the fork cartridge and rear shock absorber is not covered.

Fork reassembly notes identify coated bushings and seal lips as damage-prone; damaged coating or seals can lead to premature wear or leakage.

Before engine, fuel-system, brake, or suspension repair, securely support the motorcycle and follow the manual's electrical, fuel-handling, and component precautions.

Factory References, Tools, and Routing Drawings

Factory data covers tightening torques and sequences, clearances, wear limits, fluid capacities, electrical test specifications, suspension settings, and adjustment data. Suzuki tool references include the 09900-25008 multi-circuit tester, 09930-82710 mode-selection switch, 09922-22711 chain cutting/joining tool, and 09940-40211 fuel-pressure gauge adapter.

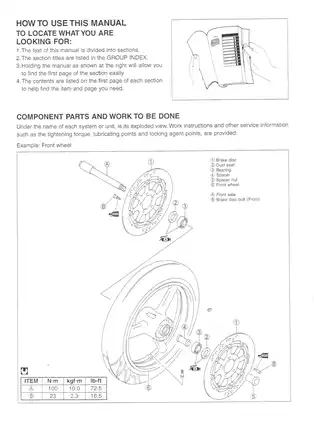

Illustrations include the FI System Diagram, FI System Wiring Diagram, Engine Lubrication System Chart, PAIR air-supply diagram, and exploded assembly views. Full-system wiring sheets distinguish model and market configurations, including separate Y/K1 sheets for the U.S./Canada/California configuration.

Wire-harness and control-cable routing appears alongside fuel-drain, cooling, brake, PAIR, and California EVAP hose layouts. Emission-control inspections cover the PAIR valves, canister, and tank-pressure control valve.

Examples of Valve-Clearance and Injector Test Data

Cold valve-clearance specifications for the covered Y, K1, and K2 models are 0.10–0.20 mm at the intake valves and 0.20–0.30 mm at the exhaust valves. The periodic-maintenance section pairs these figures with inspection and shim-selection procedures.

Injector-circuit diagnosis specifies a terminal-to-terminal resistance of 11–16 Ω at 20°C (68°F), alongside circuit checks and ECM connector views.
