2000–2003 Suzuki GSX-R750 Gixxer Service Manual (P/N 99500-37111-03E)

• Verified model coverage: Factory material covers the GSX-R750Y ('00), GSX-R750K1 ('01), and GSX-R750K2 ('02). The service-manual cover states 2000-2002; no K3/2003 factory section is included.
• Factory publication: The identified Suzuki publication is Part No. 99500-37111-03E, 2nd edition February 2001 (1st edition February 2000); the PDF set also includes the K2 model-difference supplement.
• Engine repair depth: Covers engine removal and installation, full disassembly and reassembly, cylinder-head and valve service, cam timing, clutch and transmission work, and crankshaft/conrod inspection.
• Fuel injection and intake diagnosis: Includes user- and dealer-mode self-diagnosis, fail-safe coverage, individual FI fault-code tests, fuel-pressure and pump checks, throttle-body service, STV adjustment, injector inspection, TPS setting, and throttle synchronization.
• Chassis and electrical work: Details wheels, fork, steering, rear suspension, hydraulic brakes, and drive-chain service, backed by charging, starting/interlock, ignition, meter, lighting, battery, and circuit troubleshooting.

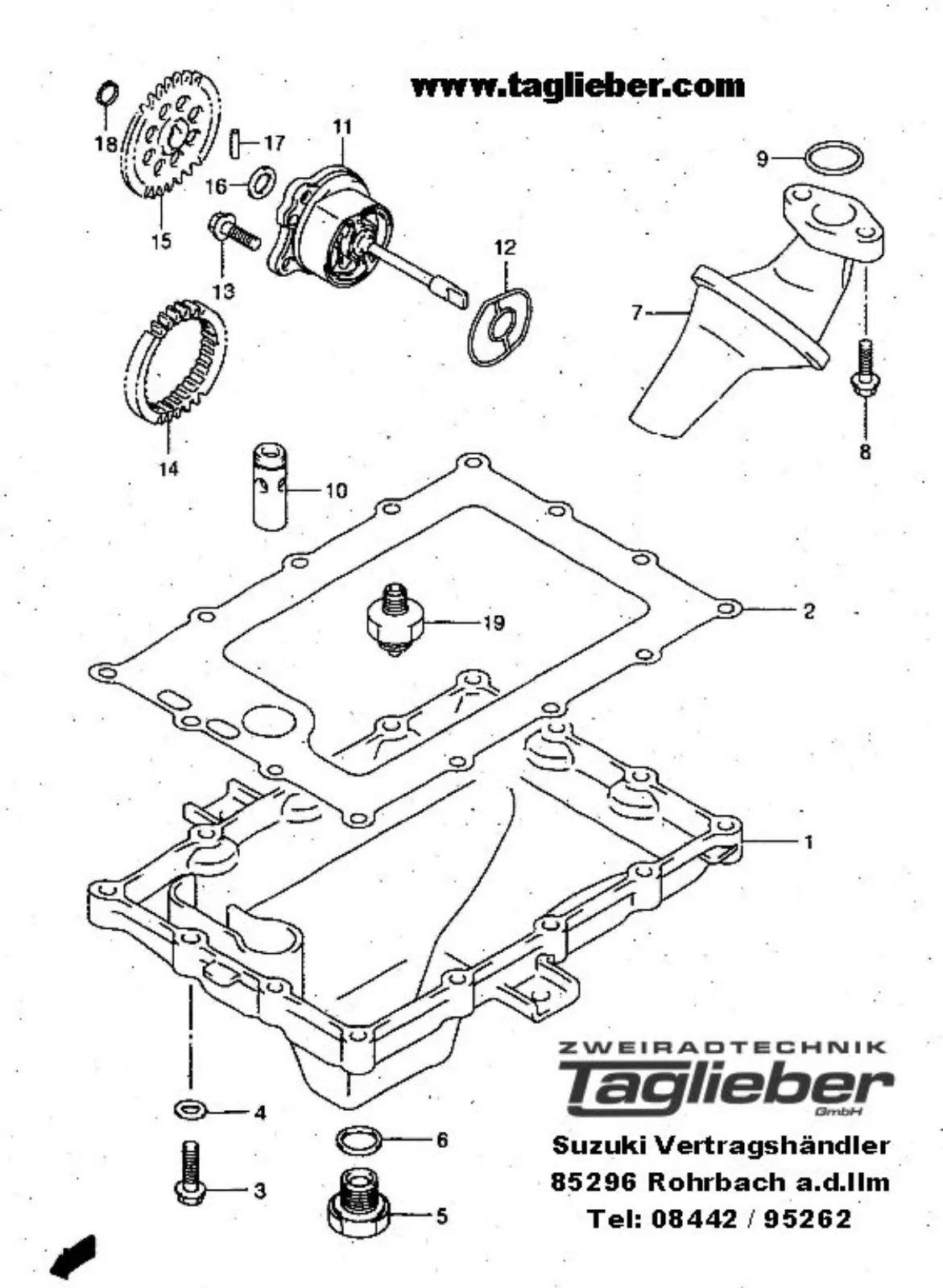

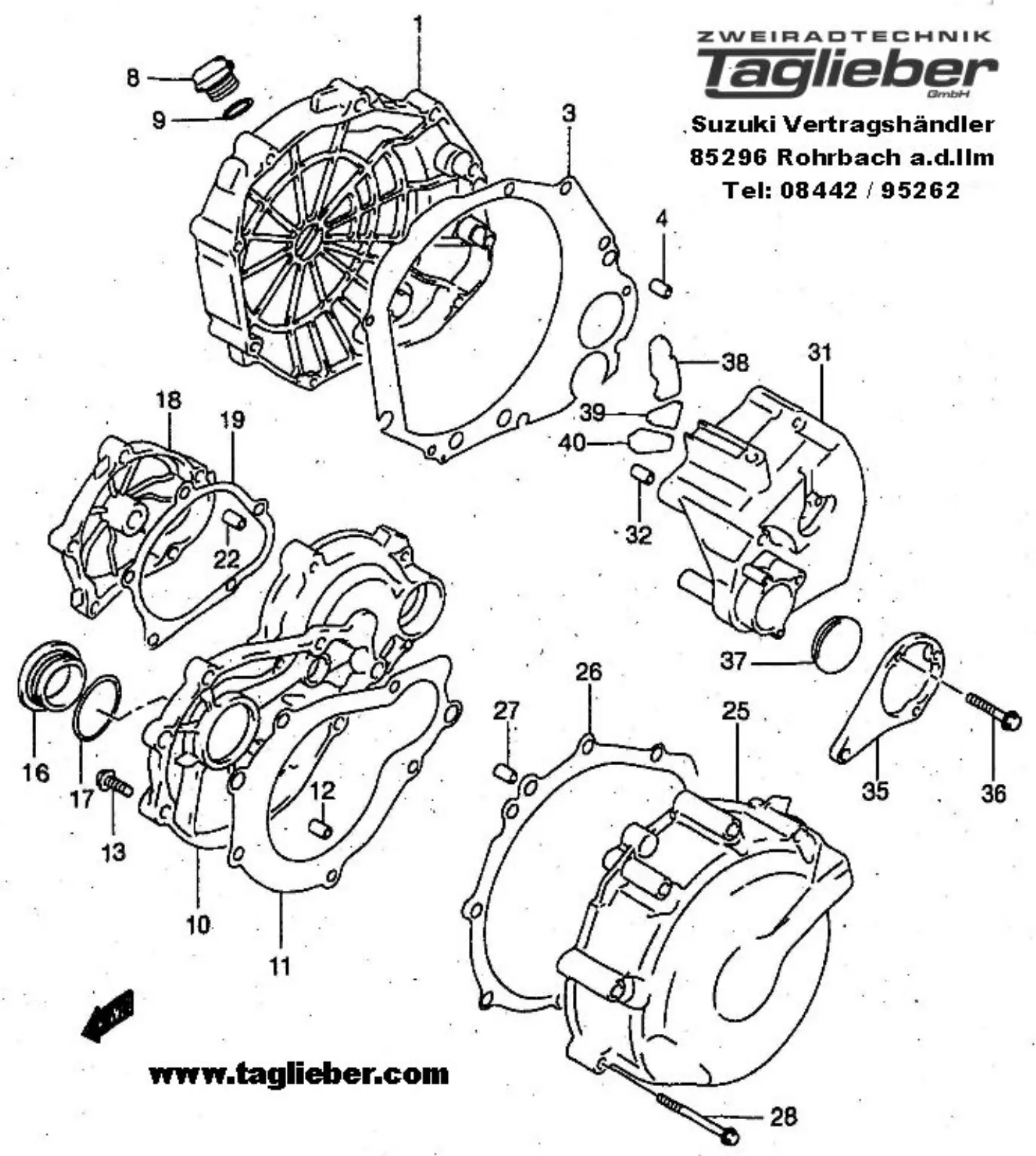

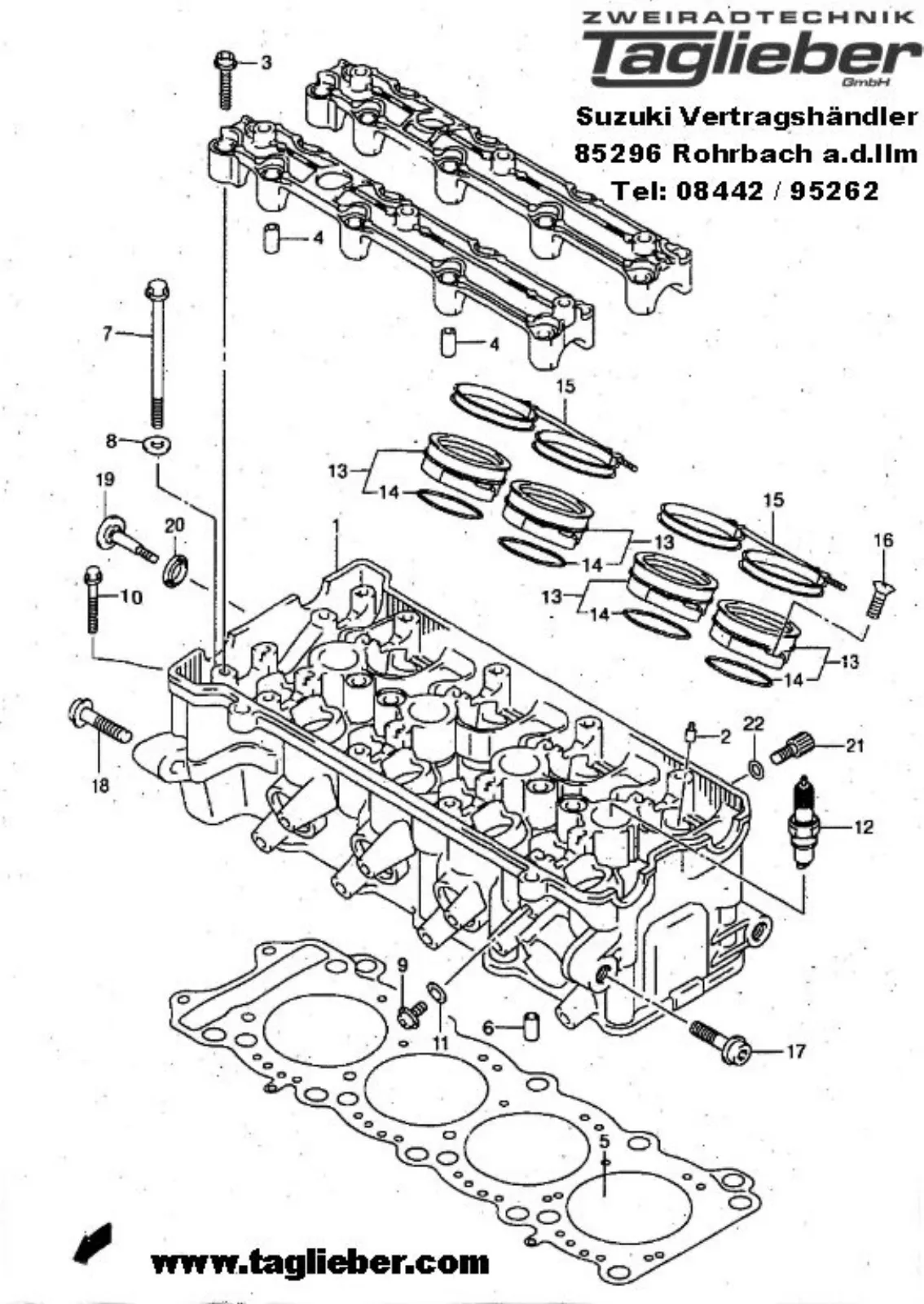

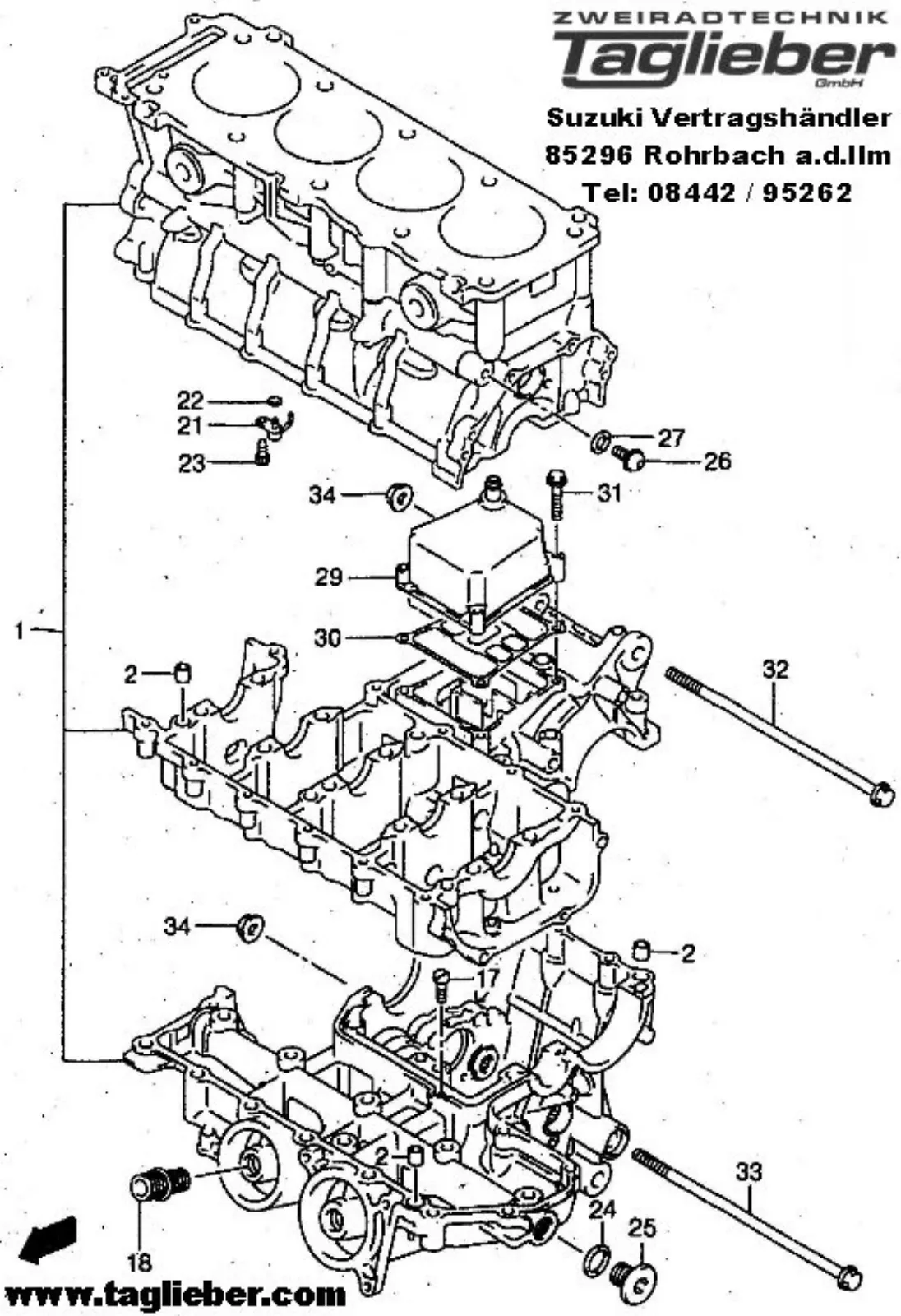

• 556-page PDF set: A 498-page service-manual PDF is paired with 58 exploded component plates. The companion plates have numbered callouts but do not include part-number or description tables.

Factory Repair Scope

This is Suzuki's shop-level reference for the liquid-cooled DOHC four-cylinder GSX-R750, covering scheduled maintenance through major mechanical repair. Suzuki wrote it for people who already have the motorcycle-service knowledge, skills, and tools, including the specified special tools. Generally known workshop basics are intentionally omitted.

Eleven indexed groups run from general information and periodic maintenance through emissions and wiring, followed by the separate K2 supplement.

The engine section distinguishes components that can be serviced in the frame from work requiring engine removal. It documents valve-guide replacement and valve-seat cutting, cylinder and piston inspection, crankshaft and connecting-rod bearing selection, clutch and starter-clutch service, and final engine reassembly. Oil- and water-pump inspection, gearshift and transmission work, and compression and oil-pressure checks are covered as well. Exploded assembly views identify tightening points, lubricants, sealants, and locking compounds where they apply.

Cooling and lubrication coverage includes circuit inspection, radiator removal and cleaning, cap and thermostat testing, cooling-fan and thermo-switch checks, water-pump overhaul, oil-pressure diagnosis, and the engine lubrication path. Chassis procedures address front-fork disassembly and setup, steering and steering-damper service, rear shock and linkage inspection, swingarm work, and wheel and bearing service. Brake caliper and master-cylinder repair, disc inspection, brake-fluid replacement, tire service, and drive-chain cutting and joining have their own procedures.

Model-Year Differences That Matter

The K1 section records changes from the Y model in specifications and service data, clutch assembly and drive-plate inspection, fuel-pressure testing, throttle-stop and AP-sensor work, gear-position-switch checks, engine mounting, and E-33 evaporative-canister routing.

The 45-page K2 supplement then identifies changes from K1. Its repair material adds C28 secondary-throttle-actuator and C29 secondary-throttle-position-sensor fault diagnosis, revised fuel-pump and throttle-body work, STP-sensor setup, and throttle synchronization. Front-axle and swingarm-pivot updates, torque-link information, revised harness and hose routing, model-specific service data, and a K2 wiring diagram are also included. The K2 circuit drawing identifies the STP sensor and exhaust-control valve/actuator circuits.

Diagnostics, Tools, and Visual References

FI troubleshooting is organized around customer-complaint analysis, self-diagnostic and reset procedures, malfunction conditions, and individual code entries ranging from C11 through C42 for sensor, ignition, injector, relay, and switch circuits. Electrical chapters add troubleshooting charts and inspection procedures for the charging system, starter and side-stand/ignition interlock, ignition system, combination meter, lamps, switches, and battery.

The special-tool index supplies names and Suzuki numbers. Useful examples include the mode-selection switch 09930-82710, vacuum balancer gauge 09913-13121, fuel-pressure-gauge adapter 09940-40211, and drive-chain cutting and joining tool 09922-22711. The same section catalogs valve, bearing, rotor, steering, swingarm, and front-fork service tools.

Named visual references include the FI system diagram, FI system wiring diagram, cooling circuit, and engine lubrication system chart. There are also wire-harness and brake-hose routing views, Y- and K1-model main diagrams, and a K2 wiring diagram with market-specific variants. Reference sections consolidate torque tables, fluid capacities, approved fluids and sealants, clearances, wear limits, pressure-test data, suspension settings, and electrical test specifications.

The FI procedures also flag two easy-to-miss repair hazards: disconnecting ECM couplers with the ignition on can damage electronic components, while incorrect secondary-throttle-cable adjustment can damage the STV actuator. Fuel-pressure testing, brake repair, and engine-running checks require the specified tools, ventilation, fire precautions, and qualified judgment; follow Suzuki's warnings before carrying out service work.
