JCB Models Covered & Key Technical Specifications

Models: Fastrac 125, Fastrac 135, Fastrac 145, Fastrac 150, Fastrac 155, Fastrac 185

Sub-models / Variants: Perkins engine variants across models other than Fastrac 185: 1006-6 (YA50347, YA50474), 1006-6T (YB50375, YB50436, YB50431), 1006-6T4 (YB50472, YB50477), 1006-6T HR5 (YB50473, YB50478), 145T (YB50400, YB50437), 160T (YB50403, YB50438), 160TW (YD50494); Fastrac 185 with Cummins 6BTA; standard 30 km/h transmissions, high-speed transmission models; six-speed synchromesh gearbox specifications Y04041, Y04141, Y04198 and Y05100; JCB Powersplit and manual or JCB Selectronic range selection; selectable 2WD and 4WD

Model Years: 1990s–2000s era (1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009)

Serial Numbers: Section-specific production breaks:

Transmission, PTO, hydraulic connections and rear suspension: to 636000 / from 636001; JCB Powersplit and optional JCB Selectronic from 636001.

UK electrical circuits: to 635329 / 635330–636000; later schematic diagrams 636001–637739; revised relay identification for Fastrac 155 and 185 from 637740.

Fastrac 185 ESOS wiring: to 636679 / 636680–637739 / from 637740; engine-mounted heater relays from 637635.

Selectronic control circuits: to 636368 / from 636369; pneumatic-cylinder procedure sections to 638649 / from 638650; cylinder and pressure specifications to 638650 / from 638651.

Original throttle-cable connections: before 636001 / 636001–637636 / from 637637, with engine-specific arrangements.

Suspension/steering pump: to 635661 / from 635662; Perkins compressor installation detail before 636736.

External hydraulics: Husco control valve to 637733 / Bosch control valve and digital electronic draft control from 637734; main relief valve procedures to 637738 / from 637739.

Footbrake calipers: to 636352 / from 636353.

Steering pressure-limit valves from 635146, also fitted to replacement steering boxes; steering-box procedures to 636371 / from 636372.

Rear suspension gas-spring specifications: to 636323 / from 636324, with a separate provision for machines fitted with 45 mm suspension cylinders.

Front Panhard-rod torque specifications: to 636348 / from 636349; rear anti-roll bar arrangements to 636000 / 636001–638134 / from 638135.

Speedometer transducer: to 638112 / from 638113.

Air conditioning: Bergstrom system from 635330; R12 refrigerant to 636393 / R134a from 636394.

Cummins fuel-bleeding procedure includes an additional operation for machines to 637635.


  • Engine oil capacity: 15.0–16.5 liters (depending on engine/configuration)

  • Transmission/PTO oil capacity: To machine number 636000: 20 liters for the PTO/range gearboxes and a separate 10 liters for the speed gearbox; from 636001: 38 liters combined for the PTO, speed and range gearboxes

  • Hydraulic system capacity: 75 liters; total capacity depends on the equipment fitted

  • Coolant capacity: 28.0–34.0 liters

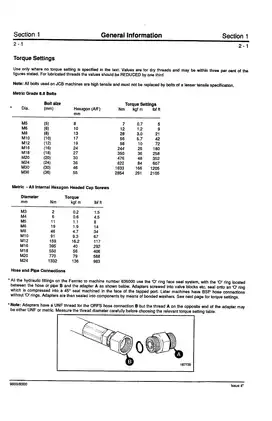

  • Metric bolt torque (M16): 244 Nm (180 lbf ft) for Grade 8.8, dry threads; general-table value where no specific torque is given

  • Metric bolt torque (M24): 822 Nm (607 lbf ft) for Grade 8.8, dry threads; general-table value where no specific torque is given

  • Wheels to hub nut torque: 500 Nm (370 lbf ft); rear axles with 12 nuts per wheel require 600 Nm (440 lbf ft)

  • Hydraulic test pressure: 280 bar (4060 lbf/in²) for the extended front lift ram leakage test

JCB Manual Features & Selected Content Preview

JCB service publication 9803/8000 covers the Fastrac 125, 135, 145, 150, 155 and 185, with Perkins and Cummins engine applications and section-specific production revisions.

Reading Diagrams and Using the PDF

Text search and diagram detail: PDF text search and embedded bookmarks are not available. Small wiring labels, connector-pin numbers and wire codes require zooming. Several circuit diagrams are presented sideways.

The download contains one printable PDF with 677 pages, including the original cover and one blank page. The remaining 675 pages contain the manual’s service information and illustrations.


Powertrain, Hydraulics and Chassis Work

The following selected topics outline the workshop coverage. Other documented work includes bonded cab-glass replacement and digital speedometer calibration.

  • Engine maintenance: Oil and filter changes, fuel-system bleeding, cooling-system service, belt checks and engine-specific technical data.

  • Transmission and PTO: Step-by-step procedures for clutch service, gearbox removal, PTO and splitter overhaul, synchromesh inspection and bearing adjustment.

  • Axles and differentials: Hub and driveshaft repair, NoSPIN and Maxtrac differential service, pinion-depth checks and crown-wheel adjustment.

  • Hydraulics and draft control: Pump testing, control-valve disassembly, lift-ram repair, sensor setting, diagnostic test-box procedures and digital fault codes.

  • Brakes and steering: Air-over-hydraulic fault finding, caliper service, steering-box overhaul, pump pressure testing and steering-limit valve adjustment.

  • Suspension: Front spring replacement and rear hydropneumatic suspension testing, ride-height adjustment, accumulator service and linkage repair.

  • Electrical systems: Starting and charging tests, alternator and starter repair, sectional wiring diagrams, connector views and wire-number references.

The depth of the material makes it best suited to professional technicians and experienced heavy-equipment mechanics familiar with pressure testing, internal transmission work and workshop lifting equipment.

Matching Procedures to the Tractor Build

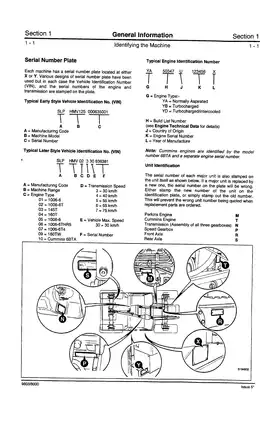

Machine identification and production notes help match service data to the correct build before parts, fluids or repair procedures are selected. Adjacent configurations should not be assumed to share every capacity, fitting specification or service requirement.

For Selectronic cylinder work, the installed actuator also matters: the procedure headings and technical-data table use different serial-number changeovers.

Gearboxes, PTO and Axle Repair

Transmission coverage distinguishes the earlier PTO gearbox from the later PTO/splitter arrangement with JCB Powersplit. Selectronic material adds electrical/pneumatic circuit descriptions, relay checks, cylinder service and range-selector adjustments.

Gearbox procedures distinguish the documented speed-box specifications and include shaft inspection, layshaft bearing preload and range-box clutch testing. Transmission removal calls for workshop equipment such as splitting frame 892/00800 and gearbox lifting adapter 477/00437.

Axle coverage separates the PD70 rear axle from the PD90 fitted to the Fastrac 185. Exploded hub and differential views accompany bearing-setting, solid-spacer and gear-contact procedures. Front PTO information also distinguishes output-shaft spline arrangements and rotation directions.

Hydraulic Testing and Electronic Draft Control

The hydraulic sections distinguish Husco external-service valves from the later Bosch combined external-hydraulic/draft-control assembly. Circuit schematics show their relationship to the transmission, steering and suspension systems.

Earlier electronic draft-control diagnosis uses a test box to check wiring, controls, sensors and solenoids. The later digital system uses a diagnostic LED and classified error codes, allowing the diagnostic approach to be matched to the fitted system.

Pump inspection includes resealing procedures and replacement criteria. For low-output pumps, the manual limits repair to the specified valve work or pump replacement rather than treating individual gears and housings as an unrestricted overhaul option.

Brakes, Steering and Suspension

Brake circuit drawings distinguish UK machines from other-market arrangements. Fault charts cover low-pressure warnings and uneven braking, while caliper sections identify the later design and the parts that interchange with earlier units.

Steering diagnosis covers heavy steering, wander and free play before steering-box removal is considered. The maintenance notes identify excessive steering-box greasing as a cause of internal seal damage.

Rear suspension information connects pressure-maintenance valves, gas springs, accumulators and height correctors with ride-height testing. Repairs involving the front lift hydraulics, PTO components or heavy axle assemblies require proper pressure release, isolation and lifting practices before work begins.

Engine Service and Repair Boundaries

Routine maintenance separates the Perkins fuel-system arrangements, including the 160TW, from the Cummins procedures. Engine removal and replacement instructions in Section T apply to machines other than the Fastrac 185.

The engine data pages refer to separate engine service manuals 9806/0100 and 9806/1170 for further detail; those publications are not included. The removal instructions also warn that damage to the crankshaft damper casing can lead to damper failure and crankshaft breakage.

Electrical Diagnosis and Cab Equipment

Starting- and charging-circuit tests are supported by harness connector views and sectional drawings, including the front/rear PTO, four-wheel-drive and differential-lock solenoid circuits. Alternator repair distinguishes Lucas, Magneti Marelli and Bosch units.

Air-conditioning coverage includes leak diagnosis, pressure-switch testing and compressor-clutch work, with separate refrigerant applications. Work that opens the refrigerant circuit requires appropriately qualified refrigeration personnel.

Examples of PTO and Valve-Clearance Data

The front PTO transfer-box assembly section specifies shaft end float of 0.03–0.08 mm, alongside the related shim-selection information.

For the Perkins engines covered by the non-185 technical-data page, valve clearance is 0.20 mm inlet and 0.45 mm exhaust, hot or cold.
