Kubota Z442-B(E) / Z482-B(E) / D662-B(E) / D722-B(E) Diesel Engine Workshop Manual (1994 and later)

100 Pages • 1 Printable PDF (English) • Download

4.5starstarstarstarstar_half(2)
$13.99 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Kubota Models Covered & Key Technical Specifications

Models: Z442-B (E), Z482-B (E), D662-B (E), D722-B (E)

Sub-models / Variants: Vertical 4-cycle liquid-cooled diesel engine series

Model Years: 1994 and later

Serial Numbers: Engine Serial Number 489290 or lower (N-TVCS), Engine Serial Number 489291 or higher (E-TVCS)


  • Engine displacement: 437 cc to 719 cc depending on model

  • Cylinder count: 2-cylinder (Z-series) and 3-cylinder (D-series) configurations

  • Maximum no-load speed: 3800 rpm

  • Fuel system: Bosch MD mini pump with N-TVCS/E-TVCS combustion chambers

  • Compression ratio: 23:1

  • Starting system: 12V 0.8kW electric starter with glow plug assist

  • Lubrication: Forced circulation via trochoid oil pump

  • Cooling: Pressurized radiator with centrifugal pump

Kubota Manual Features & Selected Content Preview

This Kubota 68 mm Stroke Series workshop manual covers the Z442-B (E), Z482-B (E), D662-B (E), and D722-B (E) diesel engines. Kubota documents the January 1994 change from N-TVCS to E-TVCS and uses the engine serial number to distinguish the fuel-system procedures for the two builds.

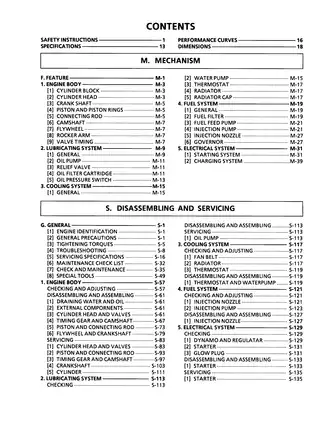

Chapter Bookmarks and Diagram Detail

Navigation and diagram detail: Embedded bookmarks take you to the specifications, system descriptions, and service chapters. The workshop pages have no built-in text search. Small terminal labels and component identifiers in the key-switch and charging diagrams are readable when zoomed in.

The download contains one printable English PDF with 100 pages, including two supplemental pages, one at the front and one at the back.


Engine Rebuilds, Injection Timing, and Electrical Tests

The topics below are selected workshop highlights. The manual also includes fuel-system bleeding and oil and filter service intervals by oil pan depth.

  • Engine-body repair: Step-by-step procedures cover compression and piston top-clearance checks, cold valve adjustment, cylinder-head and valve disassembly, timing gears, camshafts, pistons, connecting rods, flywheel, crankshaft, and main bearing cases.
  • Fuel and governor systems: Covers the Bosch MD mini pump, delivery and dumping valves, throttle-type nozzle, and centrifugal-ball governor. Tests cover nozzle spray, opening pressure, seat leakage, and pump tightness.
  • Serial-specific fuel service: Injection-pump installation and timing procedures distinguish the gasket and shim arrangements. The later build has a nozzle heat seal and a revised cylinder head.
  • Lubrication and cooling: Includes oil-pressure and trochoid-pump checks, radiator and cap leak tests, fan-belt adjustment, thermostat testing, and water-pump disassembly with mechanical-seal replacement.
  • Starting and charging: Covers starter disassembly and reassembly, solenoid and glow-plug checks, dynamo output and regulator continuity tests, and key-switch preheat, starter, and charging schematics.
  • Factory data and fault finding: Includes symptom-based troubleshooting, maintenance schedules, performance curves, installation dimensions, torque tables, electrical test values, and factory dimensions and wear limits.

This manual is suited to diesel technicians and experienced engine rebuilders using micrometers, dial indicators, pressure testers, and diesel injection test equipment.

Rebuild Measurements and Special Tools

The engine-body chapter covers cylinder-head crack and flatness checks, valve-guide replacement, valve-seat cutting and lapping, connecting-rod alignment, timing-gear backlash, and camshaft and crankshaft runout. Bearing-clearance checks and oversize cylinder and undersize crankpin data help determine whether parts can be reused or need machining and matching service parts.

Listed tools include flywheel puller 07916-32011, valve-seat cutter set 07909-33102, compression tester 07909-30208, oil-pressure tester 07916-32032, connecting-rod alignment tool 07909-31661, Plastigage 07909-30241, and crack-detection fluid 07909-31371. Dimensioned drawings cover shop-made valve-guide, crankshaft-bearing, small-end-bushing, idle-gear-bushing, and injection-pump pressure-test tools.

Illustrations include an engine cross-section, the engine-oil flow diagram, the cooling-system circuit, the Bosch MD pump section, the starter schematic, and the regulator charging and overcharge circuits.

Build Differences and Repair Scope

Use the engine serial number to select the applicable pump shim procedure and the matching replacement cylinder head from the separate parts list. The manual covers injector nozzle disassembly and reassembly, plus injection-pump removal, installation, and testing. Replacing a pump element requires calibration on a dedicated Diesel Kiki test bench.

The electrical diagrams cover the engine circuits. Use the host machine’s manual for equipment-specific wiring and accessories. Kubota identifies the radiator, fuel filter, and several electrical components as outside the basic engine configuration.

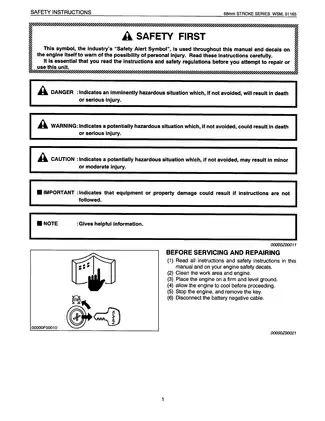

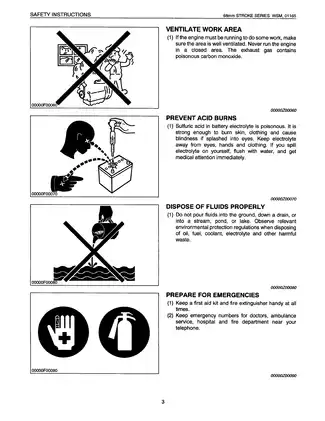

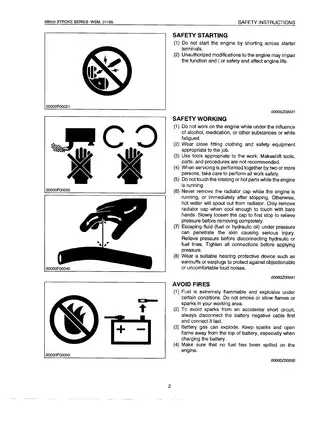

During reassembly, forcing the piston into the bore can scratch the rings’ chrome plating and damage the cylinder surface. The two- and three-cylinder builds use different oil-strainer mounting holes, and installation can damage the strainer O-ring. The manual’s safety instructions address battery isolation, hot coolant, high-pressure injector spray, and asbestos in certain original gaskets.

Compression and Valve Clearance Examples

For cylinder compression testing, the factory range is 412–469 psi, with an allowable limit of 327 psi. The cold intake and exhaust valve clearance specification is 0.145–0.185 mm. The adjustment chart identifies which valves to check on the two- and three-cylinder engines.
