2008–2009 Suzuki KingQuad 750 AXI ATV Service Manual (P/N 99500-47021-03E)

Covers the 2008–2009 Suzuki KingQuad 750 AXI LT-A750X/ZK8 and LT-A750X/ZK9, with the LT-A750XP/ZK9 Electronic Power Steering supplement included. The main service manual is identified as 99500-47021-03E.

• Engine repair: Engine removal, top- and bottom-end disassembly, cylinder-head service, valve timing, valve-clearance adjustment, and crankshaft inspection.

• Fuel injection and electrical diagnosis: DTC troubleshooting, sensor circuit tests, throttle-body service, fuel-pressure checks, ECM connector identification, and ignition and charging-system testing.

• CVT and driveline: Drive V-belt replacement, drive-face and clutch service, transfer gear repair, front differential setup, final gear work, and propeller-shaft service.

• Cooling and lubrication: Water-pump disassembly, mechanical-seal installation, thermostat testing, cooling-system pressure checks, and oil-pressure diagnosis.

• Brakes and chassis: Front brake bleeding and caliper overhaul, rear brake friction-plate service, wheel bearings, suspension arms, shock preload, and toe adjustment.

• Electronic Power Steering: LT-A750XP/ZK9 fault-code diagnosis, torque-sensor circuit checks, EPS motor testing, and control-unit and EPS body replacement.

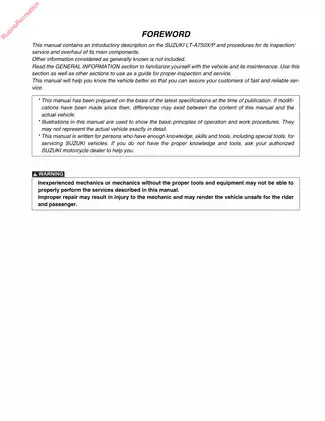

Written for mechanics with Suzuki service knowledge, practical repair skills, and the required workshop equipment and special tools.

Engine Internals and Valve Adjustment

Engine measurements include cylinder bore and piston-to-cylinder clearance. Intake and exhaust valve shim selection tables accompany the adjustment procedures, while cylinder-head coverage extends to valve guide replacement, valve seat repair, and cam drive idle gear thrust adjustment.

Fuel Injection and Electrical Diagnosis

Sensor tests cover the IAP, TP, ECT, IAT, and TO circuits, supported by ECM terminal alignment pinouts. SDS (Suzuki Diagnosis System) procedures include stored fault data, diagnostic resets, and active ISC rpm control tests.

The FI System Wiring Diagram, Ignition System Diagram, and Fuel Hose Routing Diagram support fault tracing and component identification. Ignition timing data, injector resistance specifications, market-specific wiring diagrams, and charging-system specifications provide the associated test references.

Throttle-body cleaning instructions warn that wire can damage internal passageways. Combination meter inspection and removal are covered, but the meter unit itself must not be disassembled.

CVT and Differential Setup

Drive-face inspection and clutch engagement and lock-up checks extend the CVT section beyond belt replacement. Driven-face service specifies clutch spring compressor 09922-31430.

Front differential and final gear procedures include shim selection, backlash measurement, and tooth-contact assessment. Transfer coverage includes countershaft and reverse-idler disassembly, while propeller-shaft procedures include universal-joint work.

Water Pump and Cooling Circuit

Water-pump coverage includes oil and mechanical seals, impeller inspection, and reassembly. The Anti-freeze Proportioning Chart and Water Hose Routing Diagram accompany cooling-circuit inspection, radiator service, and coolant replacement.

EPS Supplement and Service Limits

The LT-A750XP/ZK9 supplement documents changes to the starter, drive shafts, brake-hose routing, and steering. Its EPS Wiring Diagram and control-unit connector views support circuit diagnosis.

The EPS control unit and EPS body are replaced as assemblies; internal disassembly is excluded. Removing the torque sensor can cause damage, a restriction specifically identified in the steering section.

The EPS diagnosis explains that C1122 can be normal with the ignition on and the engine stopped if it clears once the engine runs. This distinction helps avoid mistaking a normal key-on indication for a steering fault.

Maintenance, Brakes, and Suspension

The Periodic Maintenance Schedule Chart sets out fluid-service intervals, including front differential oil changes. Component-specific torque tables cover cylinder-head and chassis fasteners, while suspension data distinguish front and rear wheel travel, toe-out, and shock absorber settings.

Rear stabilizer instructions identify serial breaks at 5SAAR41A497105527 for joint-nut torque and 5SAAR41A197105887 for bushing lubrication.

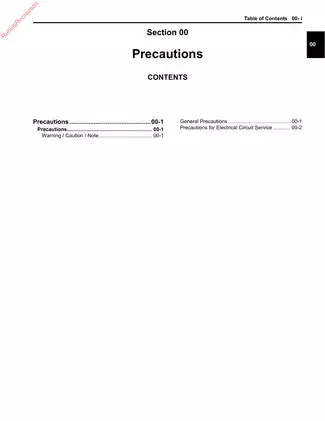

Suspension and brake procedures require secure vehicle support; fuel-system testing includes precautions for safely releasing residual pressure.

A Sample of Valve and Injector Test Data

These values are a small selection of the engine service specifications in the manual.

Cold valve clearance is 0.10–0.20 mm for the intake valves and 0.20–0.30 mm for the exhaust valves. These ranges accompany the shim-selection charts.

Injector circuit diagnosis specifies approximately 11–13 ohms measured between the injector terminals at 20°C (68°F).

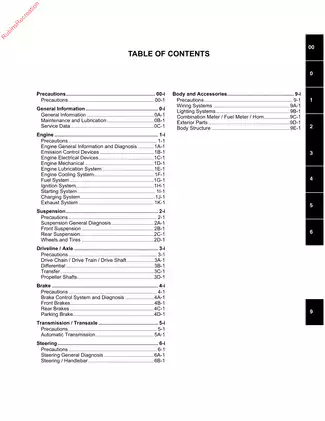

Search, Bookmarks, and PDF Contents

Text access and diagram detail: Text search works through most chapters, with limitations in the short K9 update. Embedded bookmarks cover the main sections and supplements, but the water-hose service bookmark opens the cover. Small labels in the full wiring diagrams require zooming.

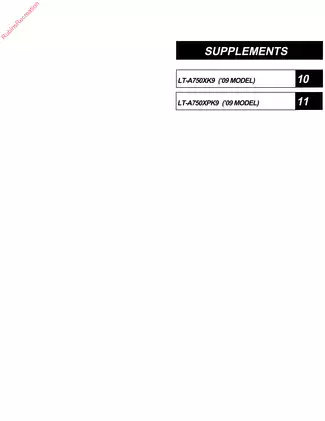

One printable, 709-page PDF contains 574 pages of main-manual material including the opening cover, a 2-page LT-A750XK9 update, and a 133-page LT-A750XP/ZK9 supplement. All covers, contents pages, and five blank section pages are already included in the total.
