1999 Mercury 30/40 FourStroke Outboard Motor OEM Service Manual (P/N 90-857046R1)

• 584-page Mercury factory service manual, P/N 90-857046R1 (November 2001), for 30 and 40 hp FourStroke outboards beginning with model year 1999 and S/N 0G760300. The emissions section identifies 1999, 2000, 2001, and 2002 label applications for the 747 cc platform.
• Configuration coverage spans 30/40 MH and ELPT models, dedicated 30/40 EHPT electrical diagrams, and the 40 ELPT Bigfoot. Serial-specific chapters separate early and later fuel and electrical arrangements at S/N 0G960500.
• Powerhead repair procedures cover removal and installation, cylinder-head disassembly, valve-guide and valve-seat work, camshaft and timing-belt service, crankcase teardown, piston and bearing inspection, bearing selection, and complete reassembly.
• Electrical fault finding covers the CDI/ECM ignition, crank-position and temperature sensors, stator, coils, charging and starting circuits, rectifier/regulator tests, starter overhaul, and Digital Diagnostic Tester procedures.
• Fuel, trim, and control work includes carburetor overhaul and synchronization, fuel-pump service, power-trim and manual-tilt hydraulic troubleshooting, shock-rod and valve-block repair, fluid filling and bleeding, throttle/shift linkage, and tiller-handle service.
• Separate gearcase chapters address non-Bigfoot and Bigfoot removal, water-pump service, shaft, gear, and bearing inspection, reassembly, pressure testing, and Bigfoot pinion-depth and backlash setup.

Factory Repair Scope

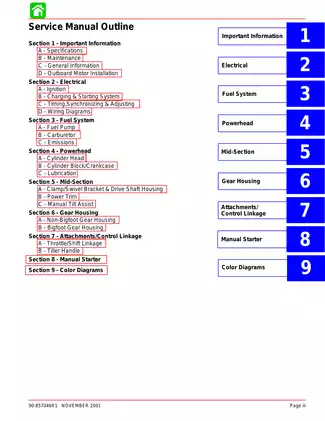

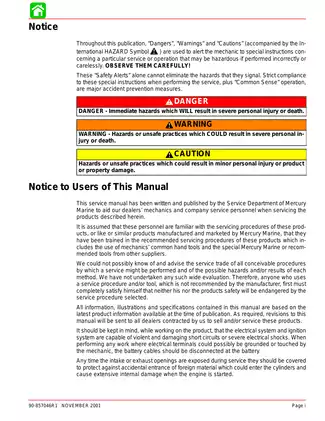

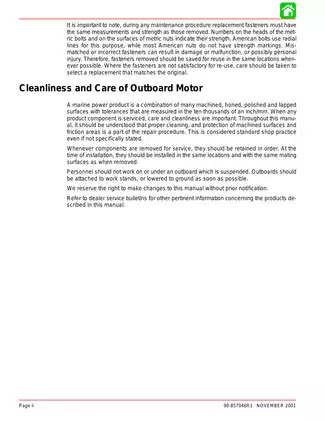

Mercury states that this manual was written to aid its dealer mechanics and company service personnel, and it assumes familiarity with these or similar outboards plus the proper hand tools and special service equipment. The repair coverage is therefore suited to trained technicians and experienced outboard mechanics who can work from factory test data and overhaul specifications.

Beyond internal engine work, the PDF covers scheduled maintenance, corrosion control, storage, compression and cylinder-leakage testing, cooling-water pressure measurement, propeller selection and installation, outboard mounting and steering connections, control-cable setup, manual-starter overhaul, and post-submersion service. Exploded assembly views identify components and show fastener-specific torque data throughout the major sections.

Serial Breaks and System Differences

The 0G960500 serial break is more than a parts-list change. Engines through 0G960499 use the earlier external plunger/diaphragm fuel pump; later engines use the mechanical water-cooled pump. The manual splits pump operation, removal, installation, check-valve service, fuel-line layouts, stator connections, voltage-regulator arrangements, and charging-system wiring around that change.

Lubrication data distinguishes later oil-pump builds beginning at S/N 0T427437 for electric-start models and 0T426439 for manual-start models. The two lower units are also treated as different assemblies: non-Bigfoot uses the 2.00:1 gearcase, while Bigfoot uses the 2.31:1 unit and requires its own pinion-location and backlash procedures. Ignition timing is ECM-controlled and nonadjustable; the manual provides verification and diagnostic procedures rather than a mechanical timing adjustment.

Diagnostics, Diagrams, and Service Tooling

Particularly useful named diagrams include the 30/40 ELPT, 30/40 EHPT, and 30/40 MH wiring diagrams, the Power Trim Hydraulic System Troubleshooting Flow Chart, and the 30/40 Oil Flow and 30/40 Water Flow diagrams. The color wiring sheets for tiller-handle electric, tiller-handle manual, and remote-control electric models are specifically marked for 2001 models and newer, S/N 0T178500 and up.

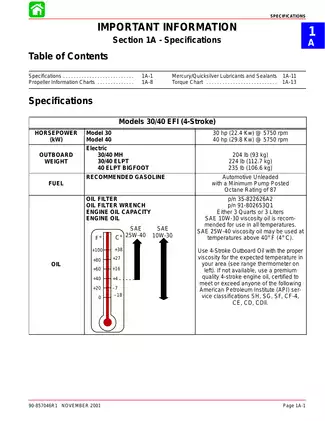

Factory test coverage includes ignition DVA and resistance checks, DDT fault isolation, a starting-circuit troubleshooting chart, alternator and rectifier/regulator tests, carburetor setup data, cylinder and bearing inspection limits, component torque tables, fluid capacities, gearcase leak-test specifications, and hydraulic flow charts. Named tools include the DMT 2000 Digital Tachometer Multi-meter P/N 91-854009A1, Direct Voltage Adapter P/N 91-89045, Vacuummate Carburetor Tuner P/N 91-809871-1, Power Trim Spanner Wrench P/N 91-74951, and Bigfoot Pinion Gear Locating Tool P/N 91-12349A2.

Manual-Specific Repair Cautions

The timing-belt instructions warn against using a metal tool to stretch the belt onto the driven gear, where scratching or damaging the belt can compromise the repair. During either gearcase installation, lubricant left on top of the driveshaft can prevent full crankshaft engagement; tightening the housing fasteners in that condition can load and damage the driveshaft, crankshaft, powerhead, or gear housing.

Before fuel-system repair, stop the engine, disconnect the battery, drain fuel into an approved container, and work in a well-ventilated area away from ignition sources. Electrical service also requires battery isolation whenever terminals could be grounded or touched.
