Volvo V70 & S80 2000–2007 Repair Manual Collection (P/N 4263)

The repair sections provide the mechanical procedures, while the circuit diagrams and component locators support electrical fault tracing. Match each section to the vehicle’s engine, transmission and equipment configuration.

Haynes coverage limits: The Haynes manual excludes V70R, AWD and bi-fuel models, 2.8L/2.9L gasoline engines, 2.5L diesel engines, and the replacement model ranges introduced in March 2006 for the S80 and June 2007 for the V70. Separate files contain selected AWD and R-model material.

File and application limits: The Haynes PDF omits printed pages 2B•1–2B•2 at the beginning of the diesel engine chapter. The separate DTC reference includes later-model entries and does not establish matching mechanical repair coverage for those vehicles.

PDF Search, Bookmarks and Circuit Detail

Finding information: Repair text and the update charts are searchable. Haynes navigation is limited to three numbered bookmarks; the 2004 wiring volume has extensive, repetitive bookmarks and partly unusable text encoding. The parts excerpt has no text search, and circuit labels in the separate 2006 wiring file are image-based. Small wiring labels require zooming.

The ZIP download contains 40 printable PDFs totaling 6,552 pages. This total already includes the Haynes title page, eight Haynes Notes pages, the electrical manual’s cover page and one additional notice page in the DTC reference.

Engine, Driveline and Electrical Workshop Coverage

The selected topics below outline the main workshop content. Further examples include parking-heater controls and sunroof calibration; this is not a complete table of contents.

• Engine repair: Step-by-step procedures for engine removal, cylinder-head work, crankshaft inspection, camshaft/VVT service, timing belts, water pumps and turbocharger replacement.

• Fuel and engine management: Fuel and residual-pressure checks, intake-leak testing, injector and pump replacement, evaporative-system testing, and gasoline/diesel control-system information.

• Transmission and AWD: Clutch hydraulics, gearbox removal and installation, line-pressure and stall-speed checks, bevel gears, propeller shafts, final drives and Active On Demand Coupling.

• Steering, suspension and brakes: Steering-rack replacement, control arms, ball joints, struts, wheel bearings, alignment data, caliper reconditioning, brake bleeding and rotor checks.

• Body and climate systems: Door and window mechanisms, seat and WHIPS components, glass replacement, cooling-system service, A/C components and cabin ventilation.

• Electrical diagnosis: System wiring diagrams, component-location illustrations, fuse and ground assignments, CAN/LIN communication, and VIDA-dependent control-module functions.

• Parts identification: S80 exploded illustrations and part-number listings for body, chassis and related assemblies within the supplied catalog excerpt.

Suited to experienced DIY owners and technicians with the lifting, measuring and diagnostic equipment required for their chosen work.

Engine Inspection and Configuration Differences

The Haynes chapters separate in-car engine repairs from engine removal and overhaul. Gasoline coverage includes compression diagnosis, piston and ring inspection, crankshaft measurements, and camshaft-cover sealing; diesel sections distinguish the EDC15C11 and EDC16C31 common-rail systems.

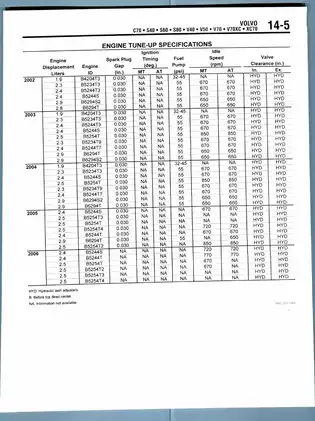

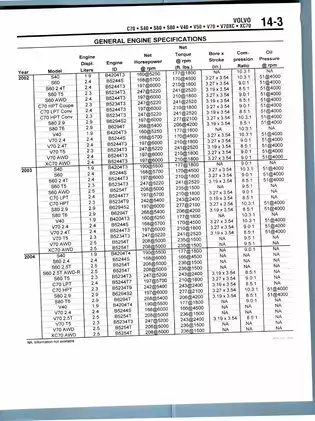

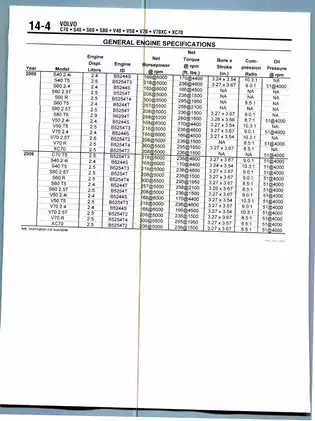

Engine tune-up charts provide spark-plug gaps and idle-speed specifications. The update files also contain valve, piston-ring, crankshaft and connecting-rod tables, alongside fluid capacities and component-specific tightening data.

The engine repair data warns that tightening a fracture-split connecting-rod cap in the wrong orientation can ruin its mating surface. Camshaft setup procedures also identify the risk of valve damage from excessive shaft rotation.

Fuel-system sections include pressure-release precautions, and the diesel chapters address the hazards of high-pressure injection equipment.

Gearbox Diagnosis and Chassis-Specific Procedures

Transmission coverage includes checks for coolant contamination in ATF, gear-position sensor adjustment and post-installation checks. The Haynes transmission chapters emphasize external service and unit removal, with internal overhaul referred to specialists.

Chassis-specific instructions distinguish AEM compatibility, cooling-fan/cool-box updates and A/C condenser versions. These distinctions help identify the appropriate procedure before selecting replacement components or planning the work.

Suspension material includes FOUR-C rear-position sensor replacement. Brake sections extend beyond pad replacement to caliper reconditioning, hydraulic bleeding and vacuum-system checks.

Circuit Tracing and Control-Module Work

Representative diagrams include Data communication V70/XC70, Engine management system, 5-cyl Turbo, Starting system, Brake Control Module (BCM) and Electronic Climate Control (ECC).

Component-location drawings connect circuit designations with connectors, grounds and installed components. VIDA-related sections explain signal monitoring, activations, stored fault information and software-dependent replacement tasks; the download supplies documentation rather than diagnostic software or vehicle-programming access.

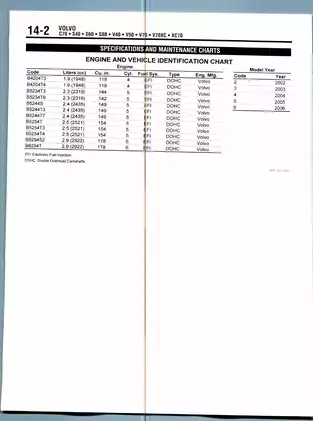

Examples from Cooling-Capacity and Crankshaft Tables

For the 2003 S60 2.4T with B5244T3 engine, the capacity chart lists approximately 9.3 US quarts for the cooling system. The chart explicitly treats capacities as approximate.

For the 2004 S80 2.9 with B6294S2 engine, the crankshaft table specifies a main-bearing journal diameter of 2.5589–2.5597 inches. This is the journal measurement, rather than the bearing oil-clearance specification.
