1982–1985 Suzuki DR250 & SP250 OEM Service Manual (P/N 99500-42002-03E)

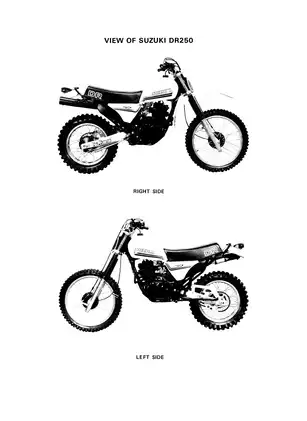

Suzuki factory service manual P/N 99500-42002-03E covers the DR250Z, DR250D, DR250F, SP250Z, SP250D, SP250E, and SP250F. The model supplements update the base chapters and are intended to be used with them.

The 304-page PDF contains scanned workshop pages. Printed pages 3-33 and 3-35 are missing from the lower-end disassembly section.

• Engine repair: Engine removal, cylinder-head and valve servicing, piston inspection, compression testing, and crankshaft inspection and installation.

• Clutch and transmission: Clutch inspection and assembly, gearshift mechanism service, kick-starter assembly, and counterbalancer alignment.

• Fuel and lubrication: Separate Mikuni carburetor sections, fuel-level inspection, oil-pressure testing, oil-pump operational checks, and lubrication diagrams.

• Electrical diagnosis: Suzuki PEI ignition tests, lighting checks, SP charging-system diagnosis, switch continuity tables, and model-specific wiring diagrams.

• Chassis service: Front-fork overhaul, steering and wheel-bearing service, Full-Floating suspension work, and F-model front disc-brake repair.

• Service references: Component-specific torque tables, valve-clearance data, wear limits, fluid capacities, and a special-tool list with part numbers.

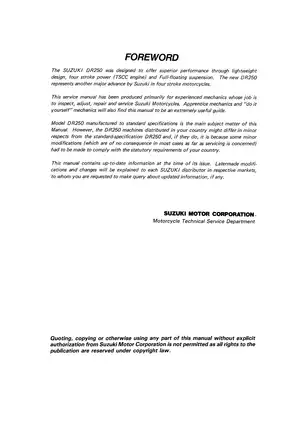

Written primarily for experienced Suzuki mechanics, the manual also provides guidance for apprentice and DIY mechanics using the specified tools and workshop equipment.

TSCC Engine, Clutch and Balancer Repair

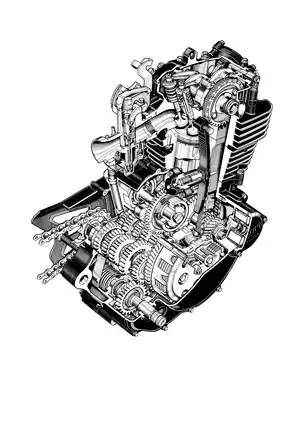

The single-cylinder four-stroke TSCC engine chapters cover top-end servicing, lower-end inspection, and reassembly. Valve-guide replacement, valve-seat repair, camshaft-journal checks, and automatic cam-chain tensioner installation extend beyond routine maintenance. The manual also identifies top-end work that can be performed with the engine in the frame.

Transmission cross-sections and balancer alignment illustrations show the positions of gears, washers, circlips, and timing marks. Clutch assembly and primary drive components have their own inspection and assembly information.

Crankcase-separation precautions explain how leaving transmission components in the wrong case half can damage the gearshift cam stopper.

Routine maintenance schedules cover required oil changes, spark plug intervals, and valve clearance procedures. DR schedules use operating hours; SP schedules use mileage and elapsed time.

Mikuni Carburetors and Lubrication

The VM28SS belongs to the DR250, while the BS34SS belongs to the SP250. Their sections cover carburetor construction, fuel circuits, disassembly, inspection, and reassembly.

SP coverage explains diaphragm-piston operation, close-tolerance emission-control jets, and the factory-sealed pilot screw. These distinctions help prevent applying DR carburetor adjustments to the SP's sealed idle circuit.

Compression and oil-pressure tests relate abnormal readings to likely faults. The lubrication-system diagram traces oil distribution, while capacity tables distinguish oil changes, filter replacement, and refilling after an overhaul.

PEI Ignition and SP Charging-System Diagnosis

Ignition-system schematics accompany ignitor, magneto-coil, and ignition-coil tests. The SP supplement adds battery inspection, charging-coil output tests, and regulator/rectifier checks.

Separate wiring diagrams and harness-routing drawings distinguish DR lighting from SP road equipment. The F supplement supplies revised electrical test data and SP side-stand check-light wiring. Troubleshooting charts address starting faults, poor running, clutch slip, shifting problems, and chassis complaints.

Brakes and Full-Floating Suspension

Chassis sections cover drive chain tensioning, front and rear brake adjustments, and steering-stem and wheel-bearing service. DR250F and SP250F front disc brakes receive separate coverage for pad replacement, caliper and master-cylinder repair, disc inspection, and hydraulic bleeding.

Full-Floating suspension coverage includes linkage and swingarm bushings, spring preload, and DR rear-shock oil and nitrogen replacement. The shock section explains how improper reservoir clamping or unsuitable flushing solvents can damage the reservoir or seals.

Nitrogen-shock servicing requires the special equipment and mechanical experience described in the manual. Always verify your own technical capabilities and shop safety protocols before proceeding with internal engine work.

Factory Service Data and Special Tools

Torque references distinguish cylinder-head nut sizes and cover engine mounting bolts, the magneto rotor, and exhaust fasteners. Inspection tables provide clearances and wear limits for the serviced assemblies.

The tool list identifies the 09920-13111 crankcase separator and 09910-32812 crankshaft installer, along with measuring and electrical test equipment.

PDF Contents and Readability

The total includes:

• DR250 base manual and front matter: 186 pages.
• SP250Z supplement: 48 pages.
• DR250D/SP250D supplement: 21 pages.
• SP250E supplement: 8 pages.
• DR250F/SP250F supplement: 39 pages.
• Closing publication page and final blank page: 2 pages.

All are included in the 304-page total.

Text search: The workshop pages have no searchable text layer; only the opening publication page contains selectable text.

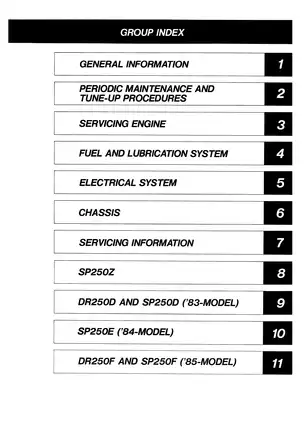

Navigation: Embedded PDF bookmarks link to the group index, main chapters, and model supplements.

Wiring diagrams: Small wire-color codes and switch labels need magnification, especially in the denser SP diagrams.
