Suzuki LT-F250 ATV Factory Service Manual 1988–2002 (P/N 99500-42098-01E)

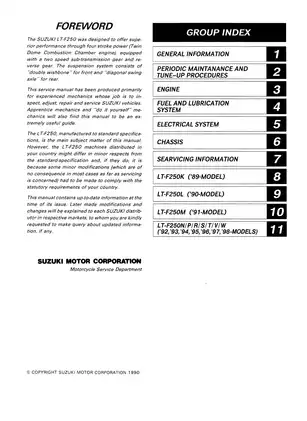

Suzuki’s LT-F250 factory service manual, P/N 99500-42098-01E, covers the standard-specification ATV and incorporates model-specific updates for the J through W designations. This is the ninth edition, dated December 1997, with US and international-market specifications.

Bookmarked PDF and Wiring Diagram Detail

Navigation and small labels: Embedded bookmarks link to the main workshop sections and model updates. Workshop text is not searchable. Small wiring-diagram labels require zooming and rotating the page for comfortable reading.

One printable English-language PDF contains 270 pages, including 59 pages of integrated model updates and five front- and back-matter pages.

Engine Overhaul, Drivetrain Service and Electrical Tests

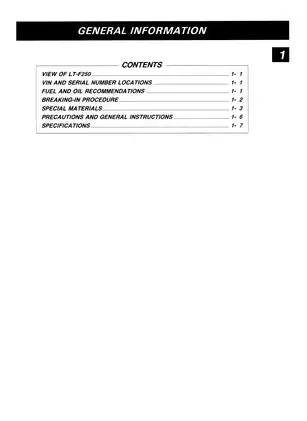

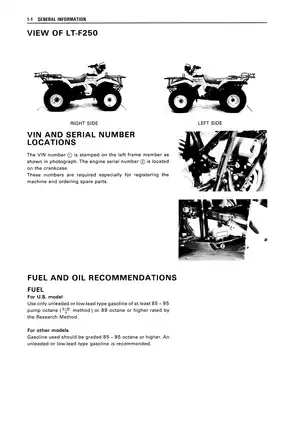

The following selected workshop topics outline the manual’s coverage. Other documented subjects include break-in recommendations and spark-arrester maintenance.

• Engine overhaul: Step-by-step engine removal, crankcase separation, cylinder-head servicing, piston and crankshaft inspection, camshaft installation, and cam-chain timing.
• Clutch and transmission: Initial engagement and lock-up tests, clutch-plate inspection, gearshift-fork checks, and transmission and sub-transmission assembly references.
• Fuel and lubrication: Fuel-pump inspection, carburetor disassembly and float adjustment, oil-pressure testing, and lubrication-system diagrams.
• Electrical diagnosis: Ignition, charging, starter and neutral-relay tests, starter-motor service, switch-continuity charts, and model-specific wiring diagrams.
• Brakes and chassis: Hydraulic front drum-brake service and bleeding, mechanical rear-brake repair, suspension inspection, steering adjustment, and rear axle-shaft service.
• Workshop references: Symptom-based troubleshooting charts, component wear limits, tightening torques, special-tool listings, and harness, cable and hose routing.

Written primarily for experienced mechanics, the manual also identifies apprentice and do-it-yourself mechanics as readers; internal repairs call for the specified measuring equipment and special tools.

Engine Inspection and Assembly References

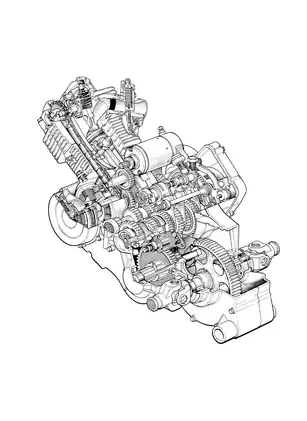

The engine chapter documents teardown and assembly of the Twin Dome Combustion Chamber engine. Inspection coverage extends to valve guides and seats, rocker arms, camshaft journals, cylinder wear, piston rings, connecting-rod clearance, and crankshaft runout.

Timing and reassembly: A valve-timing diagram accompanies camshaft and sprocket installation information. The manual also identifies components removable with the engine still in the frame, helping determine the extent of disassembly required for a particular job.

Special-tool references include the crankcase separating tool 09920-13120 and clutch sleeve hub holder 09920-53730. These listings let a workshop check equipment requirements before starting internal engine or clutch work.

Clutch, Gearbox and Rear Axle Service

Transmission and sub-transmission cross-sectional views show gear, washer and circlip positions during assembly. Shift-cam, fork and reverse-selector information is supported by separate range- and reverse-cable adjustment procedures.

Component limits: The clutch section identifies the clutch shoe assembly as nonserviceable and flags its retaining nut’s left-hand thread. The oil-pump section cautions that opening the thread-locked pump assembly may damage its securing screw and identifies the complete pump unit as the available replacement.

Rear axle-shaft coverage includes universal-joint inspection and an illustration explaining joint phasing in relation to driveline vibration.

Carburetor and Electrical Variations

The base fuel chapter explains the Mikuni VM24SS slow, main, starter and float systems. Later sections supply BST31SS specifications, with market-specific carburetor identification and jetting data. Fuel-delivery coverage also explains the vacuum-operated pump and its inspection criteria.

Model updates: The later sections are used alongside the base chapters. They distinguish revised crankcase sealing, engine mounting, ignition tests and wiring arrangements, including Australian-market circuits and later CDI-unit inspection data.

The troubleshooting charts relate starting, running, shifting and charging complaints to possible causes and remedies. Together with the component tests, they support fault isolation before replacement parts are selected. CDI resistance tables specify the Suzuki pocket tester and note that other meters can produce different readings.

Drum Brakes, Suspension and Steering

Brake coverage includes front wheel-cylinder and master-cylinder inspection, plus rear brake-cam and shoe service. Front double-wishbone and rear diagonal swing-axle sections address bushings, bearings, seals and shock absorbers.

Working on ATV drivetrains and suspension parts carries inherent risks, making it critical to follow established workshop safety practices during heavy lifting or component disassembly.

Selected Valve-Clearance and Head-Fastener Data

The base maintenance section specifies cold valve clearances of 0.03–0.08 mm for the intake and 0.08–0.13 mm for the exhaust, checked at compression-stroke top dead center.

Cylinder-head assembly data distinguishes the fasteners: 21–25 N·m for the 8 mm nuts and 7–11 N·m for the 6 mm nuts. The related illustrations identify their positions and washer arrangements.
