Suzuki LT125 ATV Service Manual 1983–1987 (P/N 99500-41013-03E)

Suzuki Motor Corporation’s LT125 Service Manual, 4th Edition, October 1990, P/N 99500-41013-03E, covers the 1983 LT125D and the LT125E (1984), LT125F (1985), LT125G (1986), and LT125H (1987) updates.

PDF Bookmarks, Diagram Detail, and Page Count

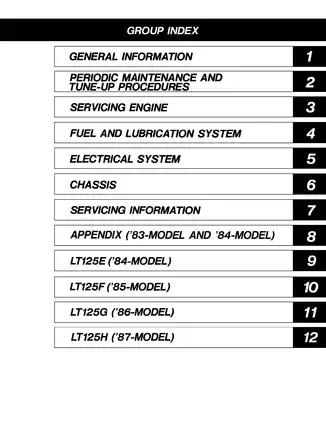

Search, navigation, and wiring labels: PDF text search is not available. Embedded bookmarks link to the group index and all 12 service groups. Small wire-color codes in the base and LT125H wiring diagrams are easier to read when enlarged.

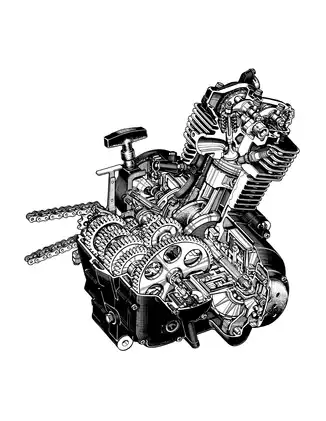

One printable 262-page PDF contains 179 pages in Groups 1–7, the seven-page ’83/’84 appendix, and E/F/G/H model sections of 29, 9, 16, and 15 pages. Seven pages of original covers, introductory material, an engine cutaway, and publication details are already included in that total.

Engine Overhaul, Drivetrain Service, and Electrical Diagnosis

The following selected coverage highlights outline the main workshop areas rather than reproduce the full contents; other topics include spark-plug selection and air-cleaner maintenance.

• Engine repair: Step-by-step engine removal, upper- and lower-end disassembly and reassembly, compression testing, and oil-pressure checks.

• Transmission and clutch: Centrifugal-clutch inspection, gear and shift-fork service, and model-specific changes to the reverse mechanism.

• Fuel and lubrication: MIKUNI VM20SS carburetor disassembly, float-height and fuel-level checks, vacuum and priming-pump inspection, and oil-pump service.

• Electrical diagnosis: Suzuki PEI ignition, magneto and ignition-coil tests, lighting-output checks, switch-continuity charts, and wiring diagrams.

• Chassis service: Wheel hubs and rims, steering and toe-in adjustment, rear sprocket and drive chain, drum brake, and rear axle bearings and seals.

• Workshop references: Symptom-based troubleshooting, model-update sections, special-tool references, tightening-torque tables, and consolidated service data.

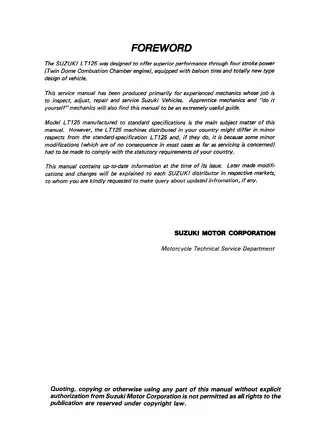

The manual is written primarily for experienced mechanics and also provides guidance for apprentice and DIY mechanics.

Engine Inspection and Reassembly Details

The dimensions, wear limits, test values, and repair procedures support work beyond routine maintenance, including assessing internal components for reuse.

Coverage includes Suzuki’s Twin Dome Combustion Chamber, wet-sump lubrication, and recoil starting. Cylinder-head work extends to valve-guide replacement and valve-seat servicing, with camshaft-journal, rocker-arm, piston/cylinder, crankshaft, and connecting-rod inspections. The Valve Timing Diagram supports the camshaft and timing-system material.

Suzuki’s camshaft notes explain how a loose cam chain can become trapped between the crankcase and drive sprocket. The crankshaft installation caution also warns that hammering it into the case can affect alignment accuracy.

Compression testing specifies gauge 09915-64510 with adapter 09915-63210. Mechanical tool references include valve spring compressor 09916-14510, valve guide remover 09916-44910, piston pin puller 09910-34510, and crankcase remover 09920-13111.

Transmission Revisions and Model Updates

The publication is arranged in 12 groups, with cumulative model updates. The F-model section refers back to Sections 1–9, while the H-model section uses Sections 1–11 except where H-specific information replaces earlier material.

The Transmission Construction and Gear Shifting Cam and Fork illustrations show component relationships and assembly positions. Four similar shift forks are distinguished by position and direction; incorrect assembly can prevent proper gear operation. Clutch coverage includes drive and driven plates, shoes, springs, bearings, and the one-way clutch.

LT125D reverse gear: The ’83/’84 appendix separates lever/arm positioning up to engine No. 145420 from revised reverse components beginning at No. 145421. It identifies reverse gear and cam kit 24500-18830 and provides early/late transmission and cylinder-head parts interchangeability information.

LT125E changes: The update documents the enlarged tank and reserve circuit, winter/summer starter limiter, throttle/speed limiter, revised recoil starter, brake and wheel hardware, and changes to the countershaft, driveshaft, and reverse-shaft assemblies.

LT125G drivetrain: The forward shift pattern changes from 1-up/4-down to all-up, with revised gearshift-cam and reverse components. These model-specific illustrations and interchangeability notes help distinguish parts and assembly data before repair work begins.

LT125H controls: An ignition switch is added at the odometer/trip-meter box, and the engine stop switch and starter lever are relocated. The LT125H Wiring Diagram and separate wire, cable, and hose routing views document the revised arrangement.

Carburetor Circuits and Fuel Delivery

The fuel chapters explain the carburetor’s slow, main, starter, and float circuits. The Fuel Pump operating cross-section shows diaphragm and check-valve operation, while inspection material addresses leakage, diaphragm damage, and faulty check valves.

Priming-pump inspection, needle-valve assessment, and post-installation adjustments accompany the carburetor procedures. The Lubrication System flow chart traces oil delivery through the engine; service data distinguishes routine oil changes, filter changes, and post-overhaul filling.

Electrical Tests and Fault-Finding References

Electrical coverage combines component resistance tests, ignition-coil spark-performance checks, lighting-output measurements, and switch-continuity charts. Wiring and routing drawings identify circuit connections and harness placement.

The Servicing Information group organizes engine, carburetor, fuel-pump, electrical, steering, brake, wheel, and rear-axle complaints by symptoms and possible causes. Component-specific torque tables and inspection limits accompany the repair sections.

Preview of Engine Test Values and Clutch Settings

For a warmed engine, the compression specification is 1,000–1,400 kPa, with an 800 kPa service limit. Oil-pressure testing specifies above 30 kPa and below 70 kPa at 3,000 rpm with oil at 60°C.

Piston/cylinder inspection includes a 0.120 mm piston-to-cylinder clearance limit, alongside crankshaft and camshaft runout limits. Clutch initial engagement is specified at 2,000 ± 200 rpm; lock-up changes from 3,400 ± 200 rpm on F to 3,500 ± 200 rpm on G/H.

Fuel-system work, brake and wheel repair, and the spring-loaded recoil starter carry specific factory cautions. Support the ATV securely for chassis work and follow the manual’s gasoline, tire, and recoil-spring safety instructions during service.
