1996–2006 Yamaha 20V, 25V, 25V2, CV25, 25V3, 30V, C25V, C30V, 25X & 30X Outboard Factory Service Manual Set (P/N LIT-18616-01-66)

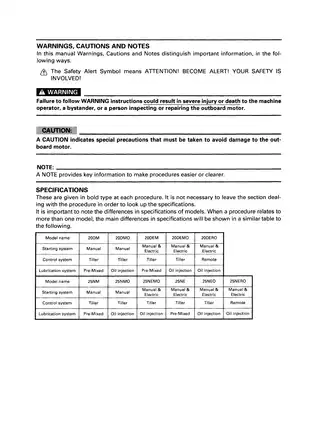

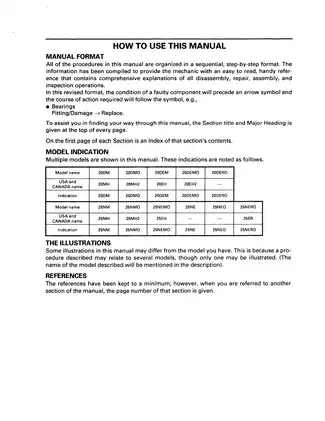

This 1996–2006 Yamaha factory service manual collection combines the 20D/20V and 25N/25V/25V2 manual, P/N LIT-18616-01-66, with separate CV25, 25V3/30V, C25V/C30V, and 25J/30D publications. The latter also covers the USA and Canada 25X/30X models. Coverage includes manual and electric starting, tiller and remote controls, premix and oil-injection configurations, and specified power trim and tilt variants.

• Power unit repair: Powerhead removal, crankcase disassembly, cylinder and piston inspection, crankshaft checks, reed-valve service, and reassembly procedures.

• Fuel and lubrication: Carburetor overhaul, needle-valve and float inspection, fuel-pump service, oil-injection pump inspection, and control-link adjustments.

• Cooling and maintenance: Water-pump and impeller service, thermostat testing, anode inspection, maintenance interval charts, and ignition timing adjustments.

• Gearcase overhaul: Forward and reverse gear service, bearing and seal replacement, pinion-height shimming, backlash measurement, and lower-unit leakage checks.

• Bracket and PTT service: Steering, clamp and swivel bracket repair, plus hydraulic bleeding, tilt-cylinder service, and PTT motor and pump work for equipped variants.

• Electrical diagnosis: CDI peak-voltage tests, starting and charging checks, starter-motor overhaul, warning-system tests, wiring diagrams, and troubleshooting charts.

Written for Yamaha dealers and trained mechanics, these manuals assume an understanding of outboard mechanical and electrical systems and the use of workshop measuring equipment.

Powerhead, Cooling and Recoil Starter Repairs

The power unit sections cover internal inspection as well as removal and installation. Cylinder wear, piston clearance, ring condition, crankshaft alignment, bearings, and oil seals are addressed alongside reed-valve and thermostat checks.

Recoil starter coverage includes the rope, sheave drum, spiral spring, and assembly checks. Flywheel removal instructions identify the holder and puller arrangements and warn that uneven puller loading can damage the engine or tools.

Fuel vapors and high-voltage ignition work require the workshop safety precautions described in the manuals.

Carburetors, Oil Injection and Control Links

Carburetor sections distinguish inspection of the body, needle valve, pilot screw, jets, and float from assembly and adjustment work. Fuel-pump coverage includes diaphragm and valve components.

The oil-injection publications add pump, drive, delivery-system, and linkage information. Carburetor synchronization, throttle links, ignition advance and retard, and start-in-gear protection are treated as separate adjustments. Carburetor assembly cautions identify overtightened pilot screws as a cause of tip damage.

Gearcase Shimming, Water Pumps and Brackets

Lower-unit coverage extends to the clutch dog, drive shaft, propeller shaft, bearings, seals, and gear inspection. Shim-selection tables and backlash measurements support gearcase reassembly rather than just routine lubrication.

The main manual separates USA/Canada shimming methods from those for other markets and identifies tools such as shimming gauge YB-34468-5. This distinction helps a mechanic select the appropriate measuring setup before choosing replacement shims.

Bracket sections address steering components, rubber mounts, clamp and swivel brackets, and tilt-lock mechanisms. The CV25 and C-series publications contain their own assembly specifications; their data should be matched to the relevant model before parts or adjustment values are selected.

Power Trim and Tilt Configurations

The 25J/30D publication provides PTT mechanical and control-system coverage for 25JETO, 30DET, and 30DETO configurations. It includes the tilt rod, tilt cylinder, pump housing, gear pump, motor inspection, and hydraulic air bleeding.

Its bleeding section specifies powered tilt operation rather than manual bleeding. Separate illustrations distinguish PTT and non-PTT clamp-bracket assemblies.

Wiring References and Fault Tracing

Electrical sections provide component tests for ignition, charging, starting, and warning circuits. Peak-voltage checks and continuity tests are supported by circuit drawings and model-specific component identification.

Examples include the CV25ED/CV25EMD wiring diagram, the 703 Remote Control Box diagram, and the 25JETO/30DET/30DETO wiring diagram with connector views. Trouble Analysis Charts address starting, idle, overheating, charging, and warning faults; the CV25 and 25V3/30V books also contain detailed symptom-based troubleshooting.

Outboard and bracket dimensional drawings supplement the exploded assembly views and removal and installation charts.

A Selection of Ring, Reed-Valve and Pinion Specifications

For 20D/20V and 25N/25V/25V2, the maintenance tables specify a second piston-ring end gap of 0.40–0.60 mm, with 0.80 mm as the limit. Reed-valve stopper height is 6.0 ± 0.2 mm.

The same publication lists 51 Nm for the pinion nut. These specifications accompany ring inspection, reed-valve checks, and gearcase assembly information.

Search Coverage, Bookmarks and PDF Contents

Text search and diagram detail: Text search is available in the final 25J/30D–25X/30X publication; the earlier manuals require visual browsing. Embedded bookmarks link to all five publications and their chapter sections. Small wiring labels require zooming, and some lines and lettering in the 25V3/30V diagrams are faint.

The download is a single 806-page printable PDF in English, containing the following publications:

Publication counts include covers, two blank pages, and one nearly blank page. The total also includes one separate inventory-label page.
