Kubota L175, L210, L225, L225DT & L260 Tractor Shop Manual Chapters (1970–1976)

Chapters from Clymer Kubota Shop Manual K-201 cover the L175, L210, L225, L225DT, and L260 tractors. This is an incomplete manual: the main internal-engine pages and most hydraulic-system procedures are missing.

Chapter PDFs, Search, and Wiring Detail

Text search and diagram detail: Manual pages have an OCR text layer, with recognition errors in some labels. The repeated copyright pages are not searchable, and none of the PDFs has embedded bookmarks. Small wiring labels are readable with zooming.

The ZIP download contains 17 printable PDFs totaling 65 pages, including 17 copyright pages and 12 repeated chapter-transition pages. It contains 36 distinct numbered manual pages: 2–9, 21–47, and 54.

Drivetrain, Fuel-System, and Electrical Repair

The following selected coverage highlights the main repair areas. Other included material addresses engine oil-filter housings and the oil-pressure relief valve.

• Front axle and steering: Axle-pivot and spindle inspection, hubs, tie rods, toe-in adjustment, recirculating ball-nut steering service, sector-shaft/worm alignment, and pitman-arm indexing.

• L225DT front drive: Front-axle removal, outer-drive overhaul, king pins, universal-joint axle shafts, spindle housings, front differential and bevel gears, drive shaft, and transfer case.

• Diesel fuel system: Filter service and bleeding, injection-pump timing and removal, governor linkage, injector fault isolation, nozzle testing, and nozzle-holder overhaul.

• Cooling system: Radiator removal, thermo-siphon system requirements, thermostat testing, and model-specific water-pump removal, disassembly, and reassembly.

• Electrical diagnosis: Generator and alternator tests, regulator checks, starter and solenoid service, glow-plug circuits, clutch-operated starter safety switch, and wiring schematics.

• Clutch, transmission, and PTO: Step-by-step tractor-splitting and overhaul procedures, clutch adjustments, shift mechanisms, shafts, reverse idlers, PTO assemblies, and the sprag overrunning clutch.

• Rear drivetrain and brakes: Differential removal and overhaul, bevel-gear setup, differential locks, final drives, rear axle bearings and seals, and brake adjustment and overhaul.

Suited to mechanics and experienced owners familiar with tractor disassembly; injector calibration and testing require specialized diesel equipment and training.

Front Axles and Steering Configurations

The L175 and L225 use fixed-tread front axles. The L210 and L260 use adjustable-tread designs, with the L210 described as similar to the L260. Steering coverage includes worm-shaft end play, sector adjustment, and assembly alignment.

The L225DT chapter follows the driven front axle from its transmission-mounted transfer case through the drive shaft, differential, axle shafts, and outer bevel drives. Exploded views identify the front-drive assembly and transfer-case components for teardown and inspection.

Clutch, Transmission, and PTO Service

Clutch procedures distinguish the pressure-plate assemblies and linkage arrangements, with release-lever settings, disc inspection, clutch-shaft service, and tractor-splitting instructions.

Transmission chapters cover removal, shift rails and forks, detents, interlocks, input and output shafts, countershafts, reverse idlers, and reassembly checks. Interlock illustrations explain how the mechanism prevents simultaneous gear engagement.

PTO coverage distinguishes the two-speed arrangements on the L175, L210, L225, and L225DT from the L260 four-speed unit. The L225/L225DT sprag overrunning clutch has separate inspection and overhaul coverage.

Differential, Final Drives, and Brakes

Rear-drivetrain procedures address pinion position, tooth-contact patterns, backlash, carrier-bearing setup, and model-specific differential-lock mechanisms. The L260 requires carrier-bearing preload adjustment; the other bearing arrangements are treated separately.

Final-drive coverage includes bull gears, bull pinions, axle shafts, bearings, and seals. Brake procedures cover pedal adjustment, assembly removal, drum inspection, and shoe replacement. Mixing differential or output-shaft shim packs can upset bevel-gear mesh and, on the L260, bearing preload.

Injection Timing and Nozzle Diagnosis

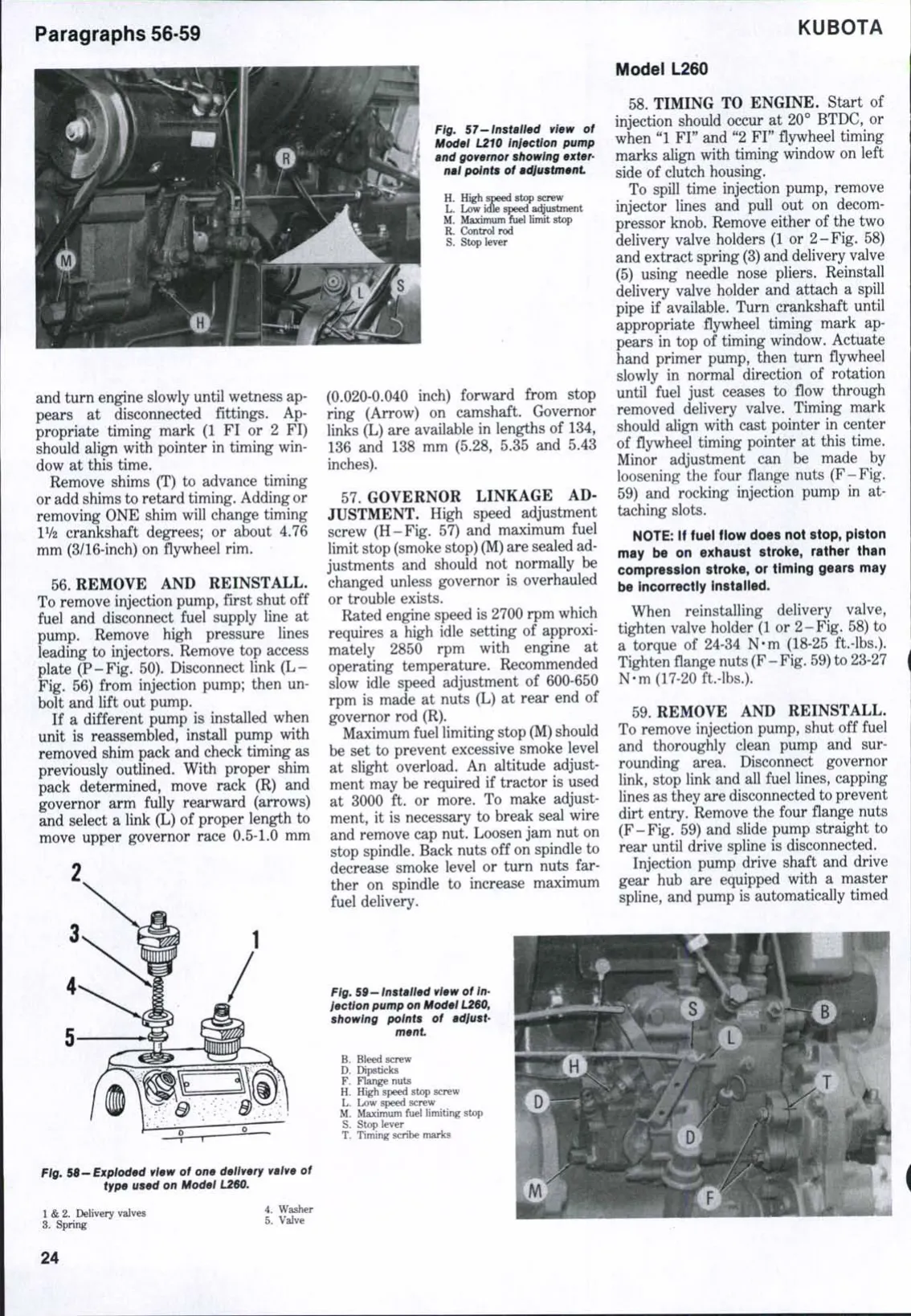

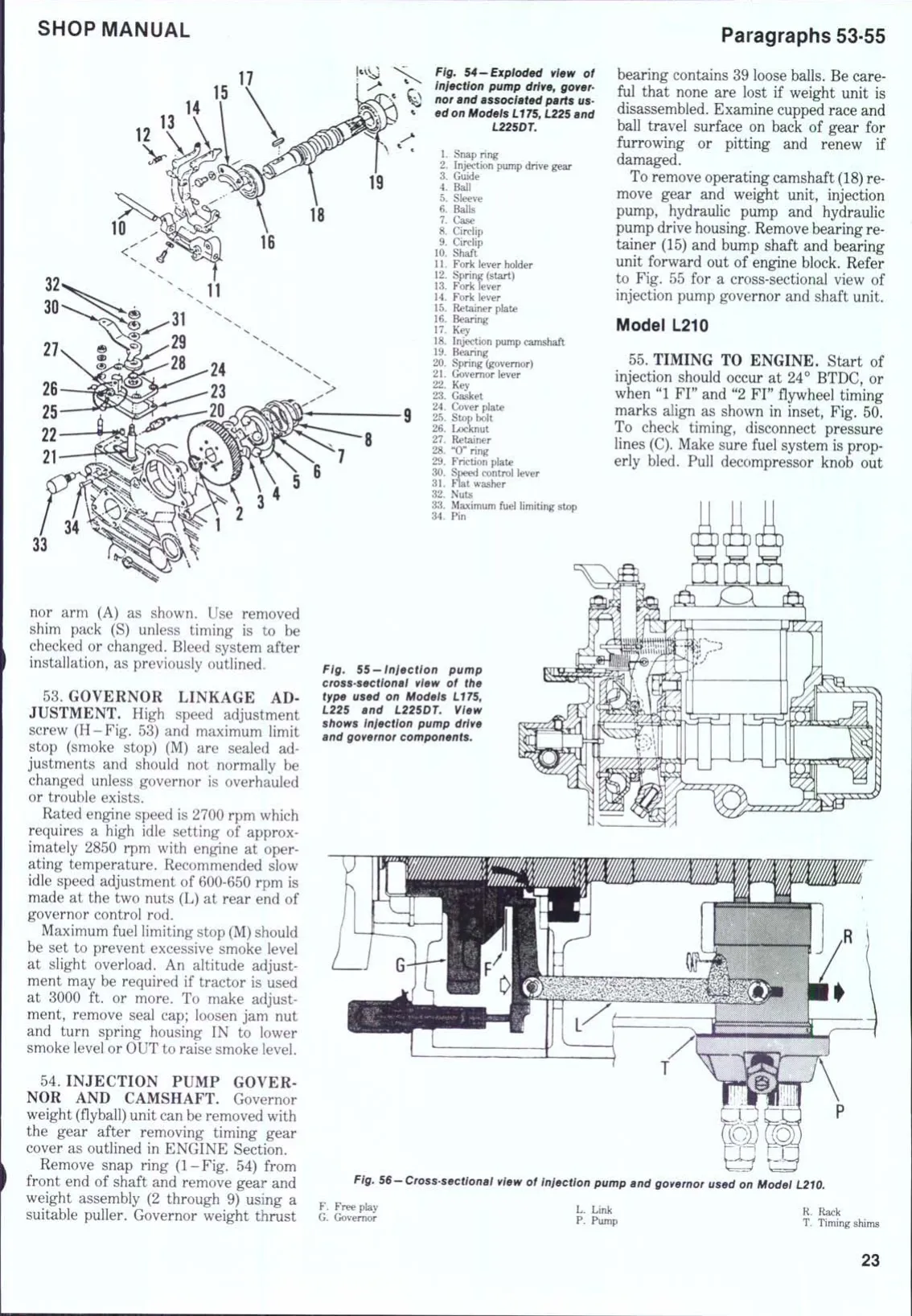

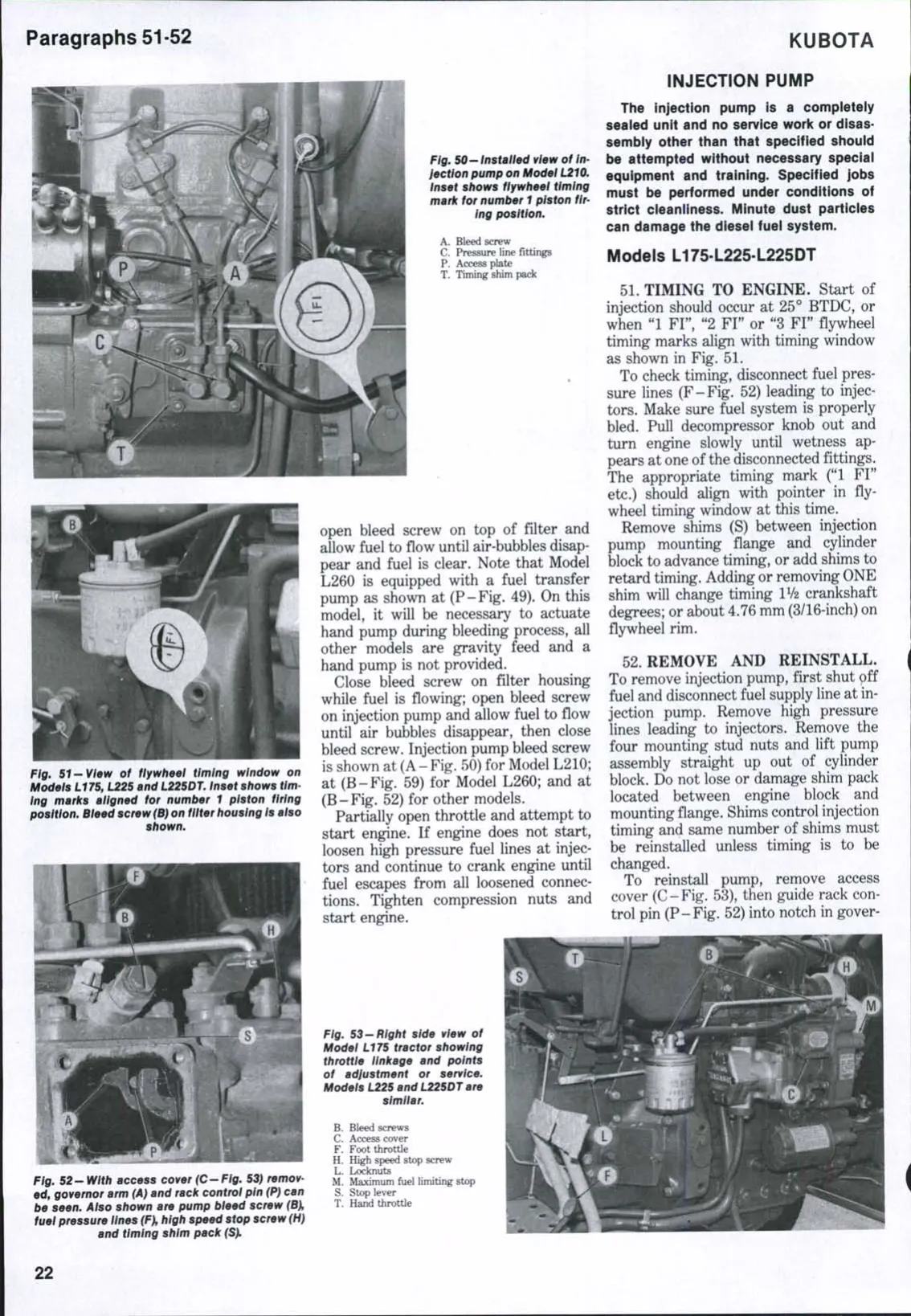

Fuel-system coverage identifies renewable-element filters on the L210/L260 and the L260 cam-driven piston transfer pump; the other models use gravity feed. Pump sections distinguish shim-controlled timing from the L260 spill-timing arrangement and cover governor linkage and pump-drive components.

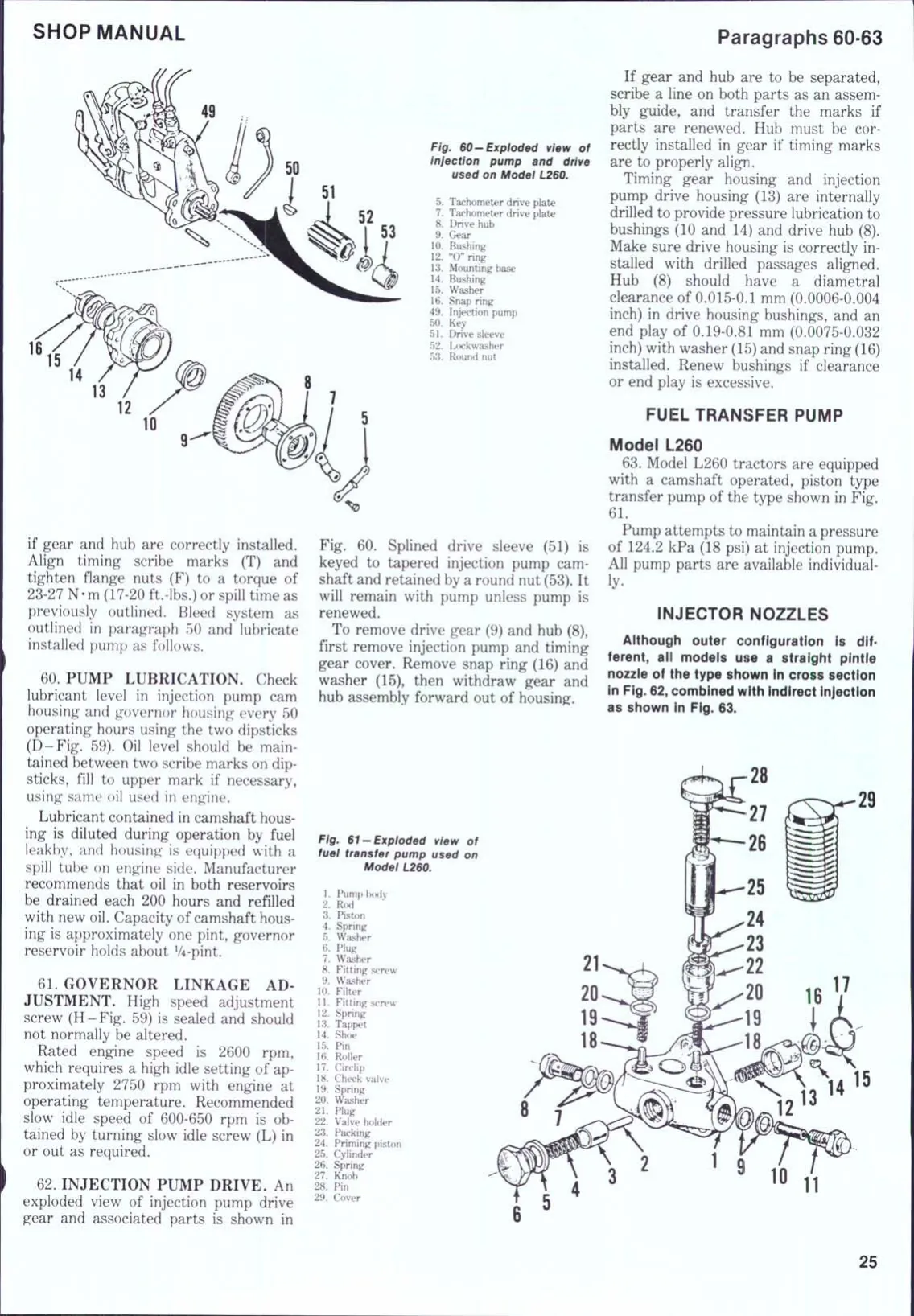

Nozzle tests address opening pressure, seat leakage, back leakage, and spray pattern. The troubleshooting notes explain how leakage in the tester can mimic a faulty injector, helping distinguish test-equipment faults from nozzle wear.

Internal injection-pump recalibration requires specialist equipment and training. The nozzle-overhaul section warns that overtightening the nozzle nut can distort the assembly and cause the valve to stick.

Cooling and Electrical Variants

The L175/L210 use thermo-siphon cooling without a water pump or thermostat. The L225/L225DT/L260 use forced circulation, with separate pump procedures and exploded or sectional views.

Charging coverage separates the L210/L260 generator system from the L175/L225/L225DT alternator system. Glow-plug diagnosis distinguishes the L210 series circuit from the parallel circuits on the other models.

Illustrations include the alternator/regulator schematic, starter exploded view, and complete tractor wiring diagrams for the L260 and L225/L225DT. Complete L175 and L210 tractor wiring diagrams are not included.

Engine and Hydraulic Coverage Limits

Engine removal is included, but the cylinder-head section stops on printed page 9; engine pages 10–20 are absent. Hydraulic coverage consists of service-data tables and a closing rockshaft fragment on page 54; hydraulic pages 48–53 are absent.

Reference tables provide U.S. Customary and metric tune-up data, engine dimensions, hydraulic pressure and pump-delivery specifications, capacities, lubricants, clearances, wear limits, and component tightening torques.

Tractor splitting and axle removal require secure support and suitable lifting equipment. Injector testing involves high-pressure spray; hydraulic and electrical work require pressure release and electrical isolation.

Selected Brake-Wear and Charging Specifications

The brake-overhaul section specifies lining replacement when wear reaches within 0.3 mm (0.012 inch) of the rivet heads.

For the L175/L225/L225DT alternator system, regulated output is 13.6–14.6 volts with a rated output of 10 amperes. The L210/L260 generator section specifies a field-coil resistance of 5 ohms.
