Evinrude 1.5–35 HP Outboard Service & Repair Manual (1965–1978)
202 Pages • 1 Printable PDF (English) • Download
Evinrude Models Covered & Key Technical Specifications
Models: 1.5 HP, 2 HP, 3 HP, 4 HP, 5 HP, 6 HP, 9.5 HP, 9.9 HP, 15 HP, 18 HP, 25 HP, 33 HP, 35 HP
Models & Model Codes:
4 HP — 4506, 4536
5 HP — 5602-5803
6 HP — 6602-6805
9.9 HP — 10R76, 10R77, 10R78, 10RL76, 10RL77, 10RL78, 10E76, 10E77, 10E78, 10EL76, 10EL77, 10EL78
15 HP — 15R76, 15R77, 15R78, 15RL76, 15RL77, 15RL78, 15E76, 15E77, 15E78, 15EL76, 15EL77, 15EL78
25 HP — 25R76, 25R77, 25R78, 25RL76, 25RL77, 25RL78, 25E76, 25E77, 25E78, 25EL76, 25EL77, 25EL78
35 HP — 35R76, 35R77, 35R78, 35E76, 35E77, 35E78, 35RL76, 35RL77, 35RL78, 35EL76, 35EL77, 35EL78, 35802, 35803, 35852, 35853
Sub-models / Variants: 1- and 2-cylinder, 2-cycle, Manual Starter, Electric Starter, Weedless Gearcase and Standard Gearcase (3 HP and 4 HP), 3 HP Yachtwin, Lightwin and Ducktwin, 33 HP Ski-Twin and Ski-Twin Electric, 1.5–2 HP specification references (1002, 1802), 9.9 HP Sail Master (10SEL78; long shaft, electric start, heavy-duty reverse thrust), early-series 1976 35 HP (S suffix), later-series 1976 35 HP (G suffix)
Model Years: 1965–1978 (1965, 1966, 1967, 1968, 1969, 1970, 1971, 1972, 1973, 1974, 1975, 1976, 1977, 1978)
-
Engine configuration: 2-cycle; single-cylinder on 1.5/2 HP models, 2-cylinder on the covered 3–35 HP models. The main specification tables list a 180-degree crank for the covered 3–33 HP models.
-
Operating RPM range: 3,500–6,500 RPM (model dependent)
-
Carburetion: Single barrel, float feed; adjustable high- and low-speed needles or a fixed high-speed jet with low-speed adjustment, depending on model
-
Ignition system: Flywheel magneto, breakerless CD on select models
-
Cooling system: Centri-matic (positive displacement and centrifugal pump). The 2 HP models covered by the supplement use a vari-volume pump.
-
Propeller drive: Stainless steel pin (3/16 in. diameter on the 18/25 HP configurations in the main specification table); design varies by model
-
Spark plug torque: 17.5–20.5 ft-lb
-
Gearshift: Single-speed on 1.5–5 HP models; forward, neutral and reverse on later 6 HP models and the covered 9.5–35 HP models
-
Water-pump serial breaks: The 1978 35 HP cooling update applies to units built before these model-specific serial numbers: 35802—2463; 35803—1926; 35852—2453; 35853—3501; 35R78—4881847; 35RL78—4886832; 35E78—4890087; 35EL78—4895278.

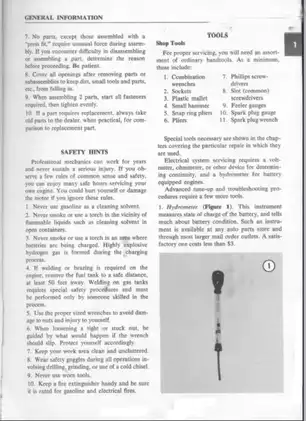

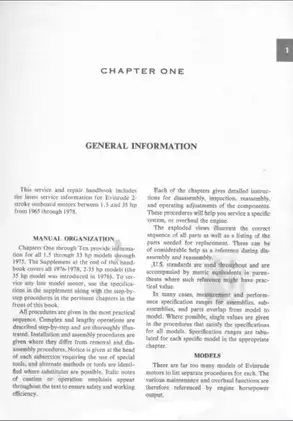

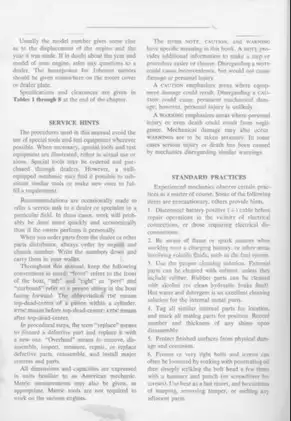

Evinrude Manual Features & Selected Content Preview
This Clymer service and repair handbook (ISBN 0-89287-229-2) covers 1965–1978 Evinrude 1.5–35 HP outboards. For later models, use the integrated 1976–1978 supplement alongside the main service chapters. This PDF has gaps in the troubleshooting, electrical, and lower-unit text.
PDF Navigation and Wiring Diagram Legibility
Bookmarks and diagram detail. PDF text search is unavailable. Embedded bookmarks open the available chapters, supplement, and index. Small wiring and connector labels vary in clarity, and some remain blurred when enlarged.
The download is one printable, 202-page English PDF. The total includes the 25-page service supplement, two cover pages, one maintenance-log page, and one repeated wiring-diagram page.
Outboard Tune-Up, Diagnosis, and Repair
These are selected topics from the handbook. It also covers winter storage and a voltage regulator kit for outboards with certain unregulated alternators.
- Routine maintenance. Gearcase lubrication, spark plug and breaker-point service, fuel mixing, and carburetor adjustments for altitude.
- Power head repair. Removal, disassembly, piston and cylinder inspection, decarbonization, bearing checks, reassembly, and clearance and torque tables by horsepower group.
- Fuel system. Carburetor overhaul, float adjustment, reed-valve inspection, throttle-linkage synchronization, fuel-pump testing, and tank and fuel-line service.
- Ignition and starting diagnosis. Static and strobe timing, coil and stator checks, rectifier testing, safety-switch adjustment, and starter-circuit fault tracing.
- Lower unit and cooling. Gearcase and exhaust-housing removal, shift adjustment, alignment checks, pressure testing, and standard and weedless gearcase illustrations.
- Manual starters. Rope replacement, lockout adjustment, and small-engine recoil-starter disassembly.
- Later-model updates. Serial-specific water-pump corrections, armature-plate bearing changes, piston-ring checks, and additional wiring diagrams.
The handbook is suited to owners comfortable with mechanical disassembly and electrical testing. It directs advanced gearcase work and several recoil-spring repairs to properly equipped shops.
Power Head Inspection and Reassembly
The engine chapter groups removal and disassembly by horsepower. Bore and stroke figures and crankshaft-journal dimensions accompany ring-clearance data and torque tables for the flywheel and cylinder head. Cylinder-wall measurements, bearing and connecting-rod checks, and gasket-surface inspection help determine which parts can be reused. The Piston and Crankshaft view identifies components on 9.9–15 HP engines.
The handbook omits some complex overhaul operations. For 9.9 and 15 HP engines, the supplement shows how to check replacement rings for poor fit. Incorrectly machined rings can protrude from the grooves and damage the pistons and cylinders.
Carburetors, Reed Valves, and Fuel Delivery
Separate carburetor procedures distinguish adjustable high-speed needles from fixed jets. The handbook includes a Carburetor Assembly view for 1.5–6 HP engines, plus float settings, inlet-needle and seat inspection, recirculating-valve service, and choke-solenoid checks on applicable models.
Fuel-pump coverage includes pressure testing, filter service, and pump replacement. Individual pump parts are replaced as an assembly. Accessory remote-control installation is referred to a dealer.
Ignition Tests and Wiring Coverage
Static breaker-point timing references fixture No. 376969. The tune-up chapter covers carburetor-to-magneto synchronization, shift-lock stops, neutral-start switch adjustment, and battery inspection and charging.
The 9.9–15 HP electric-start wiring diagram and Motor and Instrument Cables view support circuit tracing. Larger electric-start diagrams show generator and regulator connections. The supplement addresses poorly seated waterproof connector pins and explains how incorrect lubrication of the Delrin bearing and armature-plate pilot can cause wobble, unstable timing, and component damage.
Electrical service gaps. The magneto removal and installation and electric-starter service sections listed in the index are missing from this PDF. The troubleshooting chapter also has a break in its text.
Gearcases, Water Pumps, and Build Changes
The lower-unit chapter covers motor mounts, propeller service, steering-handle gears, and Centri-matic pump operation. The 6 HP gearcase view accompanies removal and inspection material. The PDF has gaps in the shift-adjustment and gearcase-removal text. Internal gearcase work requires specialized equipment.
The 1978 35 HP serial cutoffs identify which motors are affected by low water-pump pressure during extended idling. The supplement details impeller-housing and gasket corrections and identifies the early three-screw and later four-screw pump housings on 1976 35 HP motors.
Recoil Starters and Electric-Motor Controls
Small recoil starters receive disassembly and reassembly instructions. Several larger units have rope-replacement and lockout-adjustment procedures, with spring work referred to a dealer. The separate electric-motor chapter covers steering-cable replacement and motor-tube angle adjustment, supported by a Cable and Pedal Group view. It refers most internal electric-motor repairs to a specialist.
Follow the handbook’s precautions for fuel vapors, ignition voltage, and stored recoil-spring tension.
A Sample of Fuel-Pressure and Charge-Coil Data
For the 3–33 HP fuel-pump test, the pressure table lists 1.5 psi at 2,500–3,000 rpm with the motor running in a test tank or on the boat in the water.
For 1976–1978 9.9 and 15 HP engines, the supplement lists charge-coil resistance of 575 ± 75 ohms for rope-start versions and 475 ± 75 ohms for electric-start versions.
