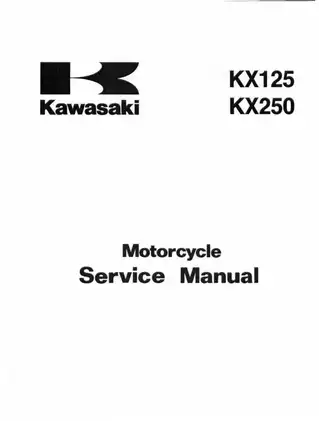

Kawasaki KX125 / KX250 Factory Service Manual, 1994–1998

This Kawasaki factory service manual covers the 1994–1998 KX125 and KX250, including K1 through K5 variants. The base service chapters and integrated model supplements provide maintenance, troubleshooting, inspection, disassembly, and reassembly information. Later-model supplements are used alongside the base chapters for the applicable changes.

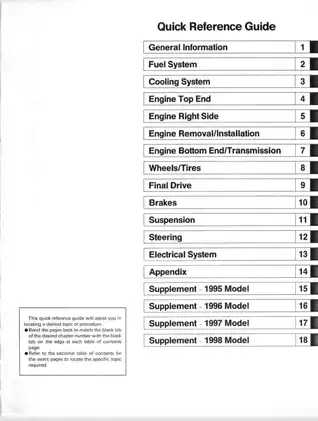

Searchable Scan with Chapter and Supplement Bookmarks

Finding procedures and diagrams: The scanned pages include OCR text and bookmarks for the service chapters and model supplements. Text search is available, although recognition errors can affect exact terms and small labels. Small wiring-diagram labels are readable when enlarged.

One printable PDF in English contains 304 pages: 216 pages of front matter and base chapters, 87 pages of integrated supplements, and the final Model Application page. The total includes two cover/title pages and nine blank pages.

Engine, Chassis, and Electrical Service Coverage

Selected contents: The topics below are a preview; additional coverage includes silencer packing replacement and general lubrication.

• Fuel and cooling systems: Keihin PWK carburetor inspection, fuel-level checks, reed-valve inspection, cooling-system pressure testing, radiator-cap inspection, and water-pump servicing.
• Engine top end: Cylinder compression testing, piston and cylinder inspection, KIPS exhaust-valve removal, assembly alignment, and model-specific changes to valve components.
• Clutch and transmission: Clutch inspection, external shift-mechanism service, primary-drive work, kickstarter servicing, crankcase splitting, and transmission shaft and shift-fork inspection.
• Suspension and steering: Upside-down front-fork disassembly and inspection, rear-shock servicing, Uni-Trak linkage bearing checks, and steering-stem bearing inspection and adjustment.
• Wheels, final drive, and brakes: Wheel and bearing inspection, drive-chain adjustment and wear checks, hydraulic brake bleeding, and caliper and master-cylinder servicing.
• Electrical diagnosis: Flywheel-magneto servicing, ignition timing checks, ignition-coil testing, igniter resistance references, and later-model regulator/rectifier and fuel-cut-valve checks.

Written primarily for trained mechanics in an equipped shop, the manual also supports owners performing basic maintenance and repairs with a working knowledge of mechanics, tools, and workshop procedures.

Engine Rebuilding and Variant-Specific Assembly Details

The Engine Top End and Engine Right Side exploded views show component relationships for cylinder, piston, clutch, and primary-drive work. KIPS procedures distinguish the KX125 and KX250 arrangements, while the later supplements address revised parts and assembly details.

Crankcase separation and crankshaft installation are covered alongside transmission inspection. Crankshaft disassembly and reassembly require a shop with the tools and equipment needed to maintain the specified tolerances.

Component-specific torque notes, wear limits, and assembly illustrations give mechanics references for checking parts and reassembly. The water-pump instructions identify excessive seal wear as a consequence of installing the shaft dry, making the installation notes relevant when replacing seals.

Ignition Tests and Later-Model Electrical Changes

Wiring diagrams, cable/wire/hose routing illustrations, and the igniter resistance chart support electrical inspection. The ignition-coil testing discussion distinguishes coil checks from spark-plug-cap checks, helping narrow the component under investigation.

The K5 supplement adds regulator/rectifier, stator, and fuel-cut-valve information with its wiring diagram. Troubleshooting coverage connects starting and running symptoms with possible faults in fuel delivery, ignition, compression, and related systems.

Fork, Shock, and Uni-Trak Service Boundaries

Front Fork exploded views accompany inspection and assembly information for bushings, seals, and internal components. The base fork procedure warns that insecure split-ring keepers can severely damage the fork. The 1997 supplement identifies its push rod and cylinder as a single assembly that must not be disassembled.

Rear-shock coverage includes oil and nitrogen servicing, with separate Uni-Trak rocker-arm and connecting-rod inspection. Periodic maintenance charts, tightening references, and unit conversions support work across the chassis chapters.

Engine and suspension work requires the correct tools, safety equipment, and a stable workspace; observe the manual’s warnings, including those for the pressurized rear shock.

Compression and Primary-Drive Reference Examples

For the base K1 models, the cylinder-compression usable ranges are 755–1,180 kPa for the KX125 and 780–1,220 kPa for the KX250. These figures accompany a test specified with the engine thoroughly warmed and the throttle fully open. The base KX125 primary gear nut specification is 59 N·m (43 ft-lb). These examples show the manual’s combination of diagnostic ranges and component-specific tightening data; consult the applicable procedure and supplement for the model being serviced.
