2005–2007 Deutz-Fahr Agrotron K 90, K 100, K 110, and K 120 Tractor Workshop Manual

This Deutz-Fahr workshop manual covers the 2005–2007 Agrotron K 90, K 100, K 110, and K 120 tractors, including Power Shuttle operation, electronic diagnostics, and component repair.

This edition contains 700 pages in one English-language PDF.

• Power Shuttle transmission: Operating circuits, clutch engagement control, transmission ECU diagnosis, and calibration of the main clutch and clutch pedal position sensor.

• Engine electronics: EMR2 fault diagnosis, engine control unit replacement and programming, engine-specific DATASET handling, and accelerator pedal and hand-throttle calibration.

• Hydraulics and steering: Transmission and tandem pump removal, steering valve disassembly and reassembly, pressure checks, and lift position sensor adjustment.

• Brakes: Master cylinder replacement, brake bleeding, service and parking brake adjustment, and descriptions of hydraulic and air trailer braking systems.

• PTO systems: Rear and Syncro PTO operating descriptions, front PTO removal and installation, flexible coupling service, and related electrical diagnostics.

• Cooling and cab systems: Cooling-pack component removal, air conditioning recovery and recharging, heater and evaporator service, and cab removal and installation.

• Electrical troubleshooting: Wiring diagrams, CANBUS fault tracing, Infocenter error codes, HLHP control unit diagnostics, connector pinouts, and component-specific electrical tests.

The manual is written for repair technicians in authorized dealerships and service centers. Its diagnostic and calibration procedures assume access to the specified test equipment, software, and workshop tools.

Power Shuttle Coverage and Repair Scope

Power Shuttle coverage includes clutch engagement sequencing, gear shifting mechanics, and transmission control unit configuration. The configuration table distinguishes these applications:

Internal repair of the Deutz 2012 engine, ZF T7100KT gearbox, and 7100 rear axle requires separate manuals referenced by this publication. Those manuals are not included in this PDF.

Diagnostics and Calibration

Fault tables connect Infocenter messages with ART, SPN/FMI, and SERDIA codes. Circuit-specific connector, voltage, and resistance checks help distinguish wiring or sensor faults from control-unit faults before a repair decision.

Tool documentation covers the All Round Tester (ART), SERDIA 2000 Level III, and EDS EST45 software. Engine ECU replacement procedures distinguish units supplied with or without an engine-specific DATASET; the parameter-setting section warns that incorrect settings can damage the engine.

HLHP commissioning covers rear lift limits, steering-angle calibration on ASM-equipped tractors, and configuration for optional front PTO, radar, and front axle suspension.

Hydraulics, Steering, and Brakes

Hydraulic diagrams distinguish standard and fully equipped configurations. Steering valve repair includes disassembly, reassembly, and seal installation using special tool T9, part number 5.9030.480.0.

Brake sections distinguish tractor service brakes from hydraulic and air trailer braking systems, with separate Italian and Export configurations.

Lift position sensor adjustment and calibration are also included. Incorrect adjustment can allow the lift to reach its mechanical stops and overpressurize the hydraulic system.

Electrical Diagrams and Harness Variants

System schematics include Electronic Engine Control, Transmission, Electronic Lift, and CAN BUS. Connector indexes, component locations, ECU pinouts, and wheel speed sensor and solenoid tests connect these diagrams to physical circuits.

Wiring harness variations cover four- and six-cylinder engine installations, front lift versions, and cab equipment.

Mechanical Service and Air Conditioning

The mechanical sections cover engine removal and installation, cab removal, radiator and oil cooler removal, and starter and alternator replacement.

Air conditioning content includes an R134a circuit schematic, refrigerant recovery and recharging, compressor replacement, and service to the receiver-drier, condenser, and evaporator.

Factory Data and Workshop Precautions

Factory data include tightening torques for bolts, fittings, and plugs, hydraulic pressure test specifications, component clearances, adjustment data, and electrical test values.

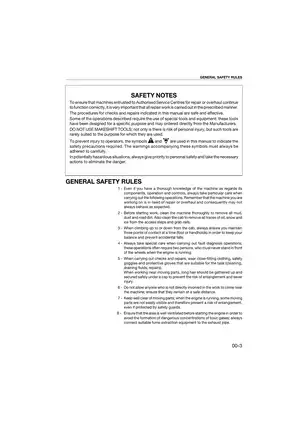

Work involving pressurized hydraulics or heavy tractor assemblies requires the safety precautions and support arrangements described in the manual. Verify specifications in the relevant procedure before applying torque or testing pressures.

PDF Contents and Navigation

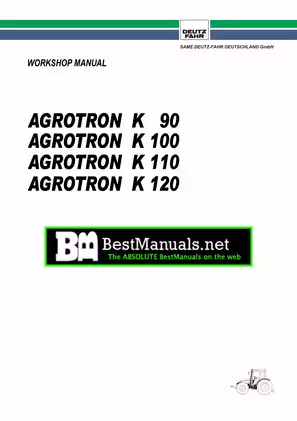

The page total includes one cover page, six contents pages, and 32 blank or intentionally blank pages. All are already included in the stated total.

The PDF has 448 embedded bookmarks across its technical, diagnostic, repair, and electrical sections. Main text sections are searchable; some schematic labels are not reliably searchable, and the cover has no text layer. Small pin numbers and wire codes in dense wiring diagrams require zooming.
