STIHL FS 75/80/85, FC 75 & HL 75 Repair Manual Set, 1996–2004

The repair manual describes workshop procedures, while the parts lists provide exploded illustrations, replacement-part numbers and assembly relationships for their respective versions.

Fitment matters: The repair section specifies a 34 mm bore; the FS 80 (4112) parts list identifies a 32 mm cylinder. Treat the catalogs as separate parts references when matching an FS 80 generation. The R, T and RX entries provide parts-identification coverage only.

Additional references: General fault-finding is referred to “Troubleshooting, standard repairs,” and internal carburetor repair to the separate Carburetor manual. Some clutch, gearbox and rope-rotor work also relies on cross-referenced instructions. Those separate manuals are outside this set.

Searchable PDF with Repair-Section Bookmarks

Text search and navigation: Embedded text supports searching throughout the three publications. PDF bookmarks cover the repair-manual chapters and provide a starting bookmark for each parts list; the catalogs do not have individual assembly bookmarks.

One printable, 149-page PDF contains all three publications. The repair text is in English, with German and French alongside the parts-list entries. The total includes the repair contents page, both parts-list cover/index pages and both multilingual symbol-key pages.

Engine Repair, Cutting Drives and Parts Identification

The following selected coverage highlights summarize the main workshop areas. Other included topics include muffler/spark-arrester service and fuel-pickup replacement.

• Engine sealing and internals: Step-by-step cylinder and piston work, piston-ring replacement, crankcase separation, crankshaft-bearing replacement, oil-seal service and crankcase pressure/vacuum testing.

• Fuel-system checks: Carburetor leakage testing, removal and installation, adjustment procedures, tank-vent pressure/vacuum checks, air-filter service and fuel-hose replacement.

• Ignition service: Ignition-module removal, air-gap setting, fixed-timing information, spark-plug terminal work, short-circuit wiring and flywheel inspection and replacement.

• Starter and controls: ElastoStart spring, rope and grip work; one- and two-short-circuit-wire throttle controls; cable adjustment and AV-system rubber-buffer replacement.

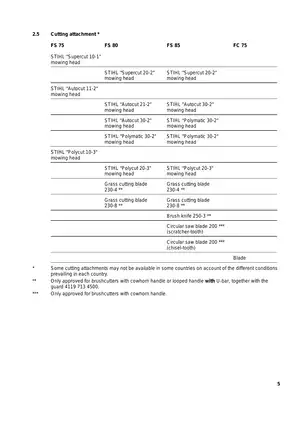

• Shaft and cutting-tool drive: Drive shaft, insulating tube and protective-tube service; FS 75 bearing housing, FS 80/85 and FC 75 gearbox removal/refitting, clutch drum and attachment hardware.

• HL 75 cutting device: Straight/oblique gearbox removal and refitting, blade disassembly and assembly, blade guides, sliders, gearwheel and connecting-rod components.

Suited to mechanics familiar with two-stroke equipment and equipped for pressure/vacuum testing and internal engine work.

Engine Sealing, Carburetion and Ignition

The leakage checks help distinguish unwanted air entry from carburetion problems when idle speed is unstable or throttle response is poor. Oil-seal replacement is described without requiring complete engine disassembly.

Internal engine work reaches crankshaft removal and installation. The crankshaft, connecting rod and needle bearing form one replacement unit; the manual also covers crankcase-bearing replacement.

Carburetor configurations: Separate adjustment sections cover carburetors with one or two adjusting screws. The leakage-test discussion identifies inlet-needle and metering-diaphragm faults, with internal repairs referred to the separate Carburetor manual.

Ignition limits: Timing is fixed and cannot be adjusted. The manual explains why an ignition spark can still be present when timing is outside tolerance. Electrical coverage centers on the module, flywheel, spark-plug lead and stop-circuit connections rather than a complete machine wiring schematic.

Always observe standard shop safety protocols and verify equipment stability before applying these mechanical procedures on the bench; the ignition chapter specifically warns about hazardous high voltage during repair and troubleshooting.

Drive Configurations and Catalog Fitment

The FS 85 uses a rigid drive shaft; the FS 75, FS 80 and FC 75 use a flexible shaft. The shaft section specifies protrusion of 20 mm for the FS 85 and 17 mm for the FS 75/80/FC 75, alongside insulating-tube and plug installation details.

The HL 75 blade section goes beyond gearbox removal to the relationship between the blade guides, band spring, sliders and connecting rod. Internal gearbox disassembly is cross-referenced to the separate standard-repairs publication.

Exploded-view references: Named illustrations include Crankcase, Cylinder; Ignition system, Clutch; Carburetor WT-447; Carburetor C1Q-S28D/C1Q-S41A; Drive tube assembly FS 85 T; and Gear head FS 80 / 80 R / 85 / 85 R / 85 T / 85 RX.

The 4137 catalog records production-change markers such as 16.2001, 24.2002 and 15.2003, together with component-specific serial breaks. These distinctions support matching replacement parts to the installed configuration.

STIHL Tools and Assembly Cautions

The service-tool list identifies carburetor/crankcase tester 1106 850 2905, vacuum pump 0000 850 3501 and ignition setting gauge 4118 890 6401.

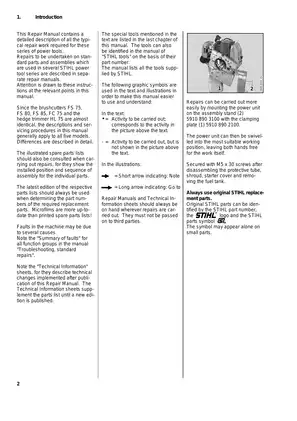

Crankshaft work calls out removal tool ZS 5910 007 2220 and installation tool 5910 890 2202. Oil-seal puller 5910 890 4400 and dedicated press sleeves are specified; assembly stand 5910 890 3100 with clamping plate 5910 890 2100 supports the power unit.

Repair cautions address piston-ring breakage during cylinder fitting and crankshaft-stub damage during oil-seal removal. The ElastoStart section warns that overtensioning can break the rewind spring and incorrect installation can let it spring out.

The tightening-torque tables cover engine, housing, shaft, gearbox, guard and cutting-device fasteners, with model-specific remarks.

A Preview of Leakage Tests and Assembly Settings

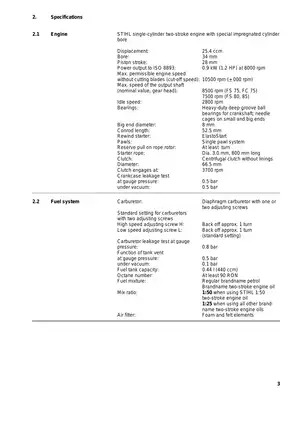

The crankcase pressure-test specification is 0.5 bar gauge pressure, maintained for at least 20 seconds. Carburetor leakage testing uses approximately 0.8 bar, with pressure retention discussed in relation to needle and diaphragm condition.

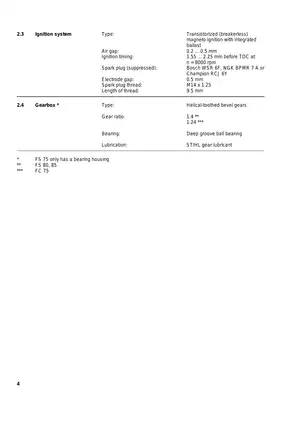

Ignition-module installation specifies a 0.2–0.5 mm gap to the flywheel. The HL 75 blade-drive section specifies approximately 20 g of STIHL multi-purpose grease for the gearbox.
