Volvo EC30 Excavator Parts Catalog Manual

Complete parts catalog for Volvo EC30 Excavator (Type 282). Contains detailed part numbers, descriptions, and diagrams for efficient component sourcing and replacement. Publication VOE 64C4410006.

4.7starstarstarstarstar_half(3)
visibility Preview Available

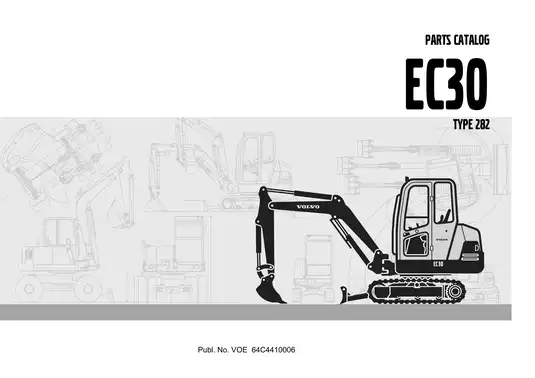

Volvo Volvo EC30 Excavator Parts Catalog Manual manual page preview - page 1 of 667

Sample pages from the Volvo EC30 Excavator Parts Catalog Manual manual

Volvo Volvo EC30 Excavator Parts Catalog Manual manual preview page 1 - thumbnail
Volvo Volvo EC30 Excavator Parts Catalog Manual manual preview page 2 - thumbnail
Volvo Volvo EC30 Excavator Parts Catalog Manual manual preview page 3 - thumbnail
Volvo Volvo EC30 Excavator Parts Catalog Manual manual preview page 4 - thumbnail
Volvo Volvo EC30 Excavator Parts Catalog Manual manual preview page 5 - thumbnail
info_outline Click thumbnails to preview different pages
$14.98 (incl. VAT) Original OEM Factory Manuals & Data Instant Download / No Shipping Fees
1 copies sold
OR BUY NOW
verified_user
Lifetime Access
Re-download anytime
flash_on
Instant Download
Get it immediately
lock
Secure Payment
PayPal
Technical Safety Notice
keyboard_arrow_down

This official OEM document is intended for professional technicians and skilled operators. Performing service on mechanical equipment involves inherent risks. By purchasing, you acknowledge that RepairLoader provides original manufacturer data for informational purposes. Always prioritize safety: use correct tools, wear protective gear, and consult a certified professional if you are uncertain of any procedure.

Volvo Models Covered & Key Technical Specifications

Models: Volvo EC30
Sub-models / Variants: 282, Basic Machine, S3L2-63ES Engine, S3L2-W263ES Engine
Trade Names: EC30 Excavator
Technical Data:

  • Engine Speed (Max): 1500 RPM
  • Engine Oil Capacity: 5.7 L
  • Engine Mount Configuration: 6 studs
  • Operating Temperature Range: 15–30 °C
  • Cylinder Head Fastening Torque: 18 Nm
  • Peak Engine Torque: 175 Nm at 1600 RPM
Technical Specifications
keyboard_arrow_down
Document Number / Seller:
30241 / Patrick Davis
File Size:
10.71 MB
File Type:
PDF
Language:
English, French, German, Spanish
Pages:
667
Printable:
Yes
Category:
Mini Excavator
Last updated / verified
May 29, 2025

Volvo Manual Features & Content Preview

Volvo EC30 Parts Catalog Technical Overview

  • This parts catalog identifies components and assemblies for the Volvo EC30 mini excavator, including engine configurations and standard machine variants.
  • Official Volvo publication, Ref. No. VOE 64C4410006, issue date consistent with the 2006 manufacturing era.
  • Contains 47 detailed exploded-view illustrations with corresponding parts-reference tables and cross-referenced index sections.
  • File link appears in your order confirmation straight away.
  • Indexed PDF search covers every chapter and appendix.
  • This document serves as the primary parts lookup for the 282-type Volvo EC30, essential for verifying serial-specific parts before maintenance or sourcing replacements.

Component Documentation

The parts catalog organizes the Volvo EC30 by major functional assemblies, including the S3L2-63ES and S3L2-W263ES engine variants, power transmission components, electrical systems, and the track-drive configuration. Each section provides exploded diagrams with clear position markers corresponding to itemized tables that detail part numbers, descriptions in multiple languages, and quantity requirements for specific configurations.

Specification and Data Preview

Technical information within this Volvo EC30 catalog includes component compatibility, sub-assembly breakdown, and required mounting specifications. The engine assembly documentation covers cylinder head and block details, including shim thicknesses ranging from 0.2 mm to 1.0 mm for pump control. Torque data is provided for critical hardware, such as the 18 Nm cylinder head fastener spec, and system capacities include the 5.7 L engine oil requirement for standard lubrication maintenance.

Reference only — always consult a certified technician before performing service on this equipment.

An official Volvo Construction Equipment parts catalog covering the EC30 Type 282, detailing technical breakdown for major machine assemblies including S3L2 engine series, hydraulic, electrical, and structural components for precision part identification and sourcing.

Manual FAQ, Purchase & Download Details

What system chapters receive the most comprehensive coverage in this Volvo EC30 parts catalog? keyboard_arrow_down

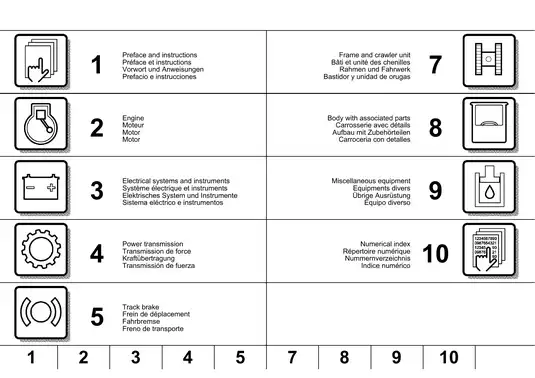

Document organizes content into ten main groups, with significant depth provided in the engine, electrical systems, and power transmission sections. These chapters provide detailed breakdowns of machine components through structured text and illustration pages.

Is there a reference index included for locating specific parts within the manual? keyboard_arrow_down

Manual contains a comprehensive numerical index in Group 10 that lists all parts included in the catalog with references to their specific group, section, and page.

Are wiring diagrams and connector references included in the electrical sections of this parts catalog? keyboard_arrow_down

Group 3 covers electrical systems and instruments, which lists components and related technical information. While this document is a parts catalog rather than a service manual, it contains the necessary part numbers and identification data for electrical system assembly components.

Which chapters feature exploded views and component breakdown illustrations for the excavator? keyboard_arrow_down

Text and illustration pages across Groups 2 through 9 feature exploded views and parts illustrations that show the assembly and component breakdown of the machine.

Can I download this document in PDF format for offline use on my tablet? keyboard_arrow_down

Catalog is available as an instant digital download in a high-quality PDF format. You can easily transfer the file to your tablet or other mobile devices for convenient reference. Once your payment is processed, you will have access to the document to view at your convenience.
