Ford 8000-TW Series Tractor Detailed Workshop Manual (1968-1982) – 152 Pages | Instant PDF

Ford 8000-TW Series Shop Manual - 1968-1982

This factory-authorized shop manual provides critical repair and overhaul protocols for Ford’s heavy-duty six-cylinder diesel fleet. It delivers essential maintenance specifications, including the hyper-specific requirement of 135-165 ft-lbs torque for early keyed steering arm clamp bolts to prevent spindle fatigue. Adherence to these factory-established tolerances ensures maximum structural integrity and field uptime for high-horsepower tillage and transport operations.

Technical Applicability & Product Configurations

8000 Series (Naturally Aspirated Diesel)

• Ford 8000, 8600, 8700 (401 CID Engine)
• Chassis: Wide Adjustable Front Axle, Row Crop, or Tricycle Configurations
• Transmission: Standard 8-Speed Gear Type or 16-Speed Dual Power

9000 Series (Turbocharged Diesel)

• Ford 9000, 9600, 9700 (401 CID Engine)
• Identification: Plate inside toolbox cover (8000/9000/8600/9600) or under radiator filler cap (8700/9700)
• Transmission: Strengthened components for increased power output

TW Series (Advanced High-Horsepower)

• Ford TW-10, TW-20, TW-30 (401 CID Engine)
• Configuration: Standard Turbocharged (TW-20/30) and Naturally Aspirated (TW-10)
• Features: Standard Dual Power and Power Assist Brakes (TW-30)

Operational Advantages & Service Integrity

• Calibration Precision: Exacting shimming procedures for front support-to-oil pan gaps (0.015" to 0.027") maintain engine block alignment under high stress.
• Safety Compliance: Specific brake bleeding sequences and master cylinder free-play settings ensure reliable stopping power for large-scale implements.
• Hydraulic Efficiency: Detailed pressure relief valve shimming (0.005" increment = 35 psi) enables precise tuning of the Ross-type steering systems.

Document Metadata

• Manufacturer: Ford
• Language: US English
• Coverage: Engine, Transmission, Hydraulics, Steering, Brakes, and Electrical
• Illustrations: Exploded views, schematics, and timing mark diagrams

Technical Depth & Factory Benchmarks

Engine performance is sustained through rigorous compression standards, with Ford specifying a maximum allowable variation between cylinders of only 20 psi. Critical engine timing is set at 23° BTDC, and valve tappet gaps must be maintained at 0.014-0.016 inches for intake and 0.017-0.019 inches for exhaust while hot. Turbocharged models (9000 series, TW-20, TW-30) utilize strengthened internal components and high-capacity cooling systems to manage increased thermal loads.

Visual Navigation Aids

• Exploded Views: Detailed breakdowns of Saginaw Hydramotor and Ross steering units.
• Wiring Diagrams: Color-coded schematics for both generator and alternator charging systems.
• Timing Maps: Precise alignment marks for rack and pinion steering motor synchronization.
• Hydraulic Schematics: Flow paths for the low-pressure gerotor pump and Dual Power planetary assemblies.

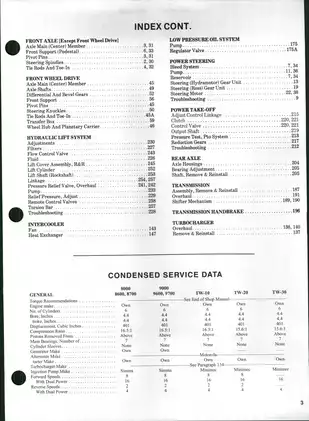

Table of Contents

• Front System and Steering: Wide Adjustable Axle, Spindle Bushings, and Hydrostatic Power Steering.
• Engine Overhaul: Cylinder Head, Pistons, Rod Bearings, and Turbocharger Maintenance.
• Fuel System: Diesel Injection Pump, Injectors, and Bleeding Procedures.
• Electrical System: Alternator, Regulator, and Starting Motor Specifications.
• Clutch and Dual Power: Pedal Adjustment, Overhaul, and Planetary Gear Service.
• Transmission: 8-Speed Gear Type Overhaul and Shifter Mechanism.
• Brakes: Master Cylinder, Power Brake Valve, and Final Drive Disc Renewals.
• Hydraulic Lift System: Pump Overhaul, Relief Pressure Adjustment, and Linkage.

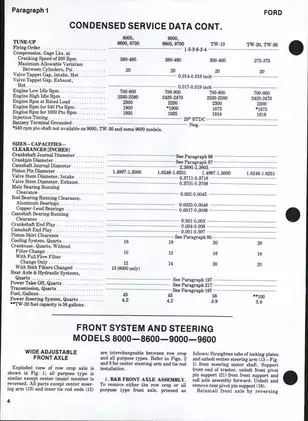

Operational Limits & Specifications

• System Pressures: Power Steering relief at 1450-1650 psi; Hydraulic Lift relief at 2450-2600 psi.
• Critical Torques: Cylinder Head bolts at 110 ft-lbs (1/2") or 160 ft-lbs (9/16"); Spindle nuts up to 440 ft-lbs (TW-30).
• Fluid Capacities: Crankcase (10-14 qts); Rear Axle/Hydraulics (64-92 qts depending on Dual Power).
• Clearances: Main Bearing running clearance (0.002-0.0045"); Crankshaft end play (0.004-0.008").

FAQ

Does this manual cover the newer TW series alongside the older 8000 and 9000 tractor models? Yes, this manual provides comprehensive coverage for the original 8000 and 9000 series as well as the later TW-10, TW-20, and TW-30 models. It specifically addresses technical variations between these generations, such as the location of identification numbers which range from a plate inside the toolbox cover on an 8600 to a plate located behind the sliding right front grill panel on a TW-30.

What is the specific relief valve pressure setting required for the hydraulic lift system? The manual specifies that the main hydraulic lift system relief valve is designed to open at a pressure of 2450 to 2600 psi. For technicians performing precise tuning, the documentation notes that adding or removing a 0.005-inch shim will change the pressure setting by approximately 35 psi, allowing for exact calibration to factory standards.

Does the manual include detailed diagnostic procedures for the Dual Power transmission system? It certainly does. The text provides a dedicated section for the Dual Power planetary gear assembly, which is standard on the TW-30 and optional for other models. It details the overhaul process for the planetary units and specifies the use of a low-pressure gerotor pump to supply the oil required for the under-drive ratios and lubrication circuits.

How should a technician properly bleed the power brake system on a TW-30 model? Bleeding the power-assisted brakes on a TW-30 requires a specific sequence using the brake valve located under the cab floor or platform. The procedure involves maintaining a specific fluid level in the reservoir and cycling the pedals to ensure all air is purged from the master cylinder and the rear disc assemblies, which is critical for maintaining the stopping power necessary for high-horsepower tillage operations.

Can I instantly print specific technical schematics for field repairs? Yes, the digital format allows for the immediate printing of high-resolution diagrams and schematics, such as the color-coded wiring maps for the alternator charging system or exploded views of the Saginaw Hydramotor. This ensures that a clean, legible copy of critical timing marks or torque sequences—like the 160 ft-lbs requirement for 9/16-inch cylinder head bolts—is always available at the machine side without damaging the original document.
