Kawasaki FC150V OHV Engine Workshop Manual (P/N 99924-2020)

This Kawasaki workshop manual (P/N 99924-2020) covers the FC150V OHV, vertical-shaft, 4-stroke air-cooled gasoline engine, including recoil-start, electric-start, and flywheel band-brake configurations.

• Fuel and controls: Carburetor removal, cleaning, and installation; governor lever setting, throttle cable installation, and choke and idle adjustments.

• Starting and ignition: Recoil starter service, electric starter checks, charging-coil stator testing, and transistorized flywheel magneto diagnosis with wiring and circuit diagrams.

• Cylinder head and valves: Compression testing, head removal and installation, valve-clearance adjustment, Automatic Compression Release (ACR) checks, and valve seat reconditioning.

• Internal engine repair: Piston ring installation, connecting rod and crankshaft inspection, crank pin regrinding, cylinder bore resizing, and crankcase bearing and seal replacement.

• Cooling and lubrication: Engine cover disassembly, “K” KLEEN air-cleaner service, governor gear inspection, oil slinger checks, and breather reed-valve inspection.

• Flywheel band brake: Brake-shoe replacement, brake-cable adjustment, and diagnosis of the band-brake-linked engine switch and stopping faults.

Written for trained mechanics working in a properly equipped shop, the manual assumes access to the specified tools and precision measuring equipment.

Fuel Delivery, Airflow, and Engine Controls

The carburetor section pairs an exploded component view with body-marking examples for parts identification and float-chamber service. The float itself requires no checking or adjustment, and striking its pin can break the holder.

Periodic maintenance charts specify service schedules for fuel filters, engine oil, and air-cleaner elements. The “K” KLEEN airflow description explains why restrictions in the recoil starter grille, fan housing, and intake path affect carburetor operation.

Electrical Diagnosis and Starting Systems

The electric-starter wiring diagram identifies lead colors and the discharge-chute interlock. The ignition schematic shows the relationship between the control unit, coils, and engine switch, with separate coverage of intermediate-connector installation and throttle-lever-linked and band-brake-linked switch arrangements.

Hard-starting flowcharts separate spark, compression, and fuel-system faults, helping a mechanic narrow the likely fault area before replacing components. Electrical checks recommend Kawasaki multimeter P/N 395100-9803A because other meter types can give different readings.

Starter-motor coverage includes bench testing, ring-gear inspection, and reassembly details. Further internal disassembly beyond the illustrated component breakdown is not recommended.

Working on outdoor power equipment involves inherent risks; use the specified tools and follow the manual’s precautions for fuel handling, rotating components, and recoil-spring tension.

Engine Wear, Machining, and Brake Service

The engine sections give service limits for piston pins, valve guides, rocker arms, and crankcase bearings. Cylinder bore resizing includes separate boring and final-honing dimensions for the listed oversize pistons and rings.

Crank pin regrinding requires a matching undersize connecting rod. Valve seat reconditioning is covered, but grinding or reconditioning a worn valve face is specifically excluded; that condition calls for valve replacement.

The lubricating-system section explains crankcase airflow through the breather reed valves and oil-return passages. The band-brake mechanism illustration relates brake-shoe movement to ignition grounding.

Uneven tightening can warp the crankcase cover; its installation section provides the tightening sequence and assembly precautions.

Examples of Valve, Head-Bolt, and Ignition Settings

These figures are a small sample of the adjustment and assembly data in this workshop manual. The final valve-clearance setting is 0.12 mm (0.005 in.) for both intake and exhaust, with the engine cold.

The torque table lists 23 N·m (205 lbf-in) for the cylinder-head bolts, supported by the head-installation sequence. Ignition-coil installation specifies a 0.3 mm (0.012 in.) air gap between the coil legs and flywheel rim.

PDF Navigation and Page Breakdown

Text search and diagram detail: Service text has an OCR search layer, with recognition errors in some headings and labels; the front cover is not searchable. Embedded bookmarks open the main chapters. Small labels in the electric-starter wiring diagram and ignition schematic require zooming.

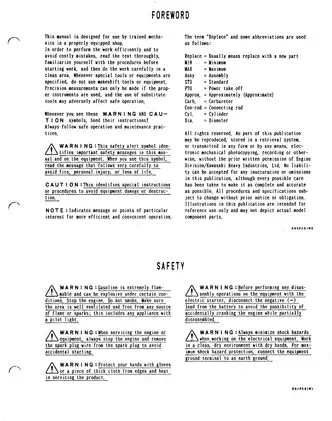

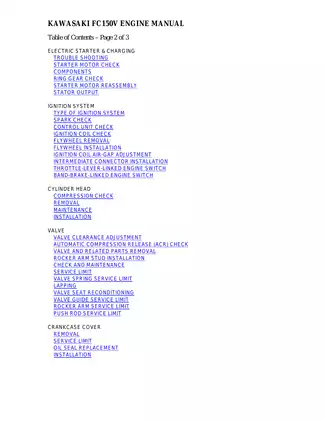

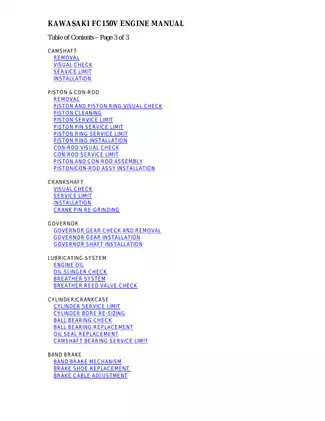

Supplied as one printable, English-language PDF with 76 pages total: 68 numbered manual pages, three added contents pages, a front cover, a foreword/safety page, two original contents pages, and a back cover. All introductory and additional pages are included in that total.
