1984–1999 Mercury Force 3–150 HP Outboard Service & Repair Manual

This Seloc service and repair manual details routine maintenance, powerhead reconditioning, and ignition troubleshooting for 1984–1999 Mercury Force outboards from 3 to 150 HP.

• Maintenance and tune-up: Lubrication schedules, spark-plug inspection, throttle and ignition synchronization, winter storage, and spring commissioning checklists.

• Fuel system: Carburetor removal and overhaul, float adjustment, fuel-pump testing and rebuilding, primer checks, and fuel-recirculation diagrams.

• Ignition and electrical: Breaker-point, Motorola, Prestolite, Thunderbolt, and CDM diagnosis, with stator, charging-circuit, starter-motor, and wiring checks.

• Powerhead repair: Removal and installation, compression assessment, reed inspection, internal component measurement, exploded views, and bolt-tightening sequences.

• Cooling and warnings: Water-pump and impeller replacement, thermostat testing and replacement, cooling-system diagnosis, and overheat-warning circuit checks.

• Lower-unit overhaul: Gearcase disassembly, bearing and seal inspection, pinion-depth shimming, propeller-shaft endplay, and gear-backlash checks.

• Trim, controls, and recoil starters: Hydraulic fault isolation and bleeding, trim-motor service, remote-control repairs, tiller adjustments, and hand-rewind starter overhaul.

The manual is written for owners tackling maintenance and repairs, while recommending professional machine-shop support for most powerhead machining.

Carburetor Service and Ignition Diagnosis

Fuel delivery: The troubleshooting sections distinguish supply restrictions, air leaks, pump faults, and carburetor problems. Separate procedures address faceplate controls, tiller-operated carburetors, and remote-control arrangements. Fuel-pressure relief, combustion-related piston damage, and fuel/water-separator service are also covered.

Carburetor exploded views identify internal parts, while recirculation hose-routing drawings distinguish the later 40/50 HP, 75/90 HP, and 120 HP layouts. The manual explains how recirculation faults can contribute to lower-cylinder spark-plug fouling.

Timing and electrical tests: Synchronization procedures distinguish single- and multiple-carburetor engines, including Motorola distributor systems and engines without a distributor. Tune-up tables provide static and dynamic timing specifications, spark-plug information, and idle settings.

The ignition chapters separate stop-circuit faults from trigger, charge-coil, switch-box, and ignition-module problems. This helps identify the relevant test path before replacing an expensive ignition component. Resistance and peak-voltage tests accompany model-specific wiring diagrams, including separate charging and starting diagrams for the 75 HP engine.

Fuel-system pressure and high-voltage ignition work require the precautions described in the manual.

Powerhead Reconditioning and Cooling Repairs

Internal engine work: Coverage extends from powerhead removal to inspection of pistons, rings, connecting rods, crankshafts, bearings, and cylinder bores. Rebuilding tables distinguish standard dimensions from service limits. Crankshaft-and-piston exploded views and cylinder-head bolt-torque diagrams provide assembly references for different engine configurations.

The machining discussion explains which work generally belongs with a machine shop and which inspection and assembly tasks an equipped owner may undertake.

Cooling diagnosis: A cooling-water-flow drawing for an inline four-cylinder engine complements the pump, thermostat, and overheat-warning sections. Thermostat coverage includes removal, testing, and replacement. Water-pump cautions explain why reversing a used impeller can cause premature vane failure.

Gearcase Overhaul, Hydraulic Trim, and Controls

Lower units: Separate overhaul sections address small-engine units, split gearcases, and successive larger-engine designs. Driveshaft shim charts and component cutaways support the shimming procedures; reference tables include gear ratios and lubricant capacities.

Tool requirements are tied to the work, including shimming set T8997A for the earlier large-engine gearcase procedure and bearing-preload tool C-91-14311A1 for later units.

The manual also explains how accidentally removing the shift-pivot screw on certain earlier lower units can release an internal linkage component and make gearcase disassembly necessary.

Trim and tilt: Center-mounted piston and single-ram integral systems have separate diagnostic and service sections. Coverage includes pump removal, hydraulic bleeding, motor checks, relay tests, and cylinder service. For the center-mounted system, the pump-and-valve-body assembly is limited to cleaning and assembly replacement when internal parts are defective.

Controls and starting: Remote-control cable adjustment, neutral-start switches, and tiller mechanisms are covered alongside overhead and Bendix hand-rewind starters. Commander 2000 wiring diagrams and Commander 3000 component drawings provide additional control-system references.

A Preview of Compression and Temperature-Sender Test Data

For multicylinder powerheads tested at operating temperature, the compression-assessment section treats a cylinder-to-cylinder difference of 15 psi or more as questionable.

The cylinder-head temperature-sender test specifies switch closure at 180–200°F and reopening as the sender cools to 160–180°F. These are warning-switch test thresholds, rather than a general engine operating-temperature specification.

Searchable Text, Bookmarks, and Printable Pages

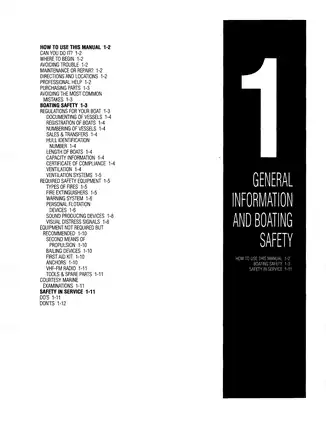

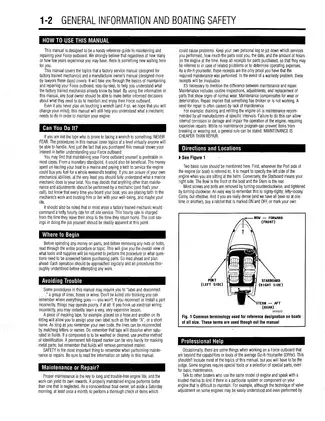

Finding procedures and reading diagrams: An embedded OCR layer supports text searches across most of the manual, and PDF bookmarks organize the chapters and subsections. The powerhead torque table on PDF p. 215 has no searchable text. Small wiring-diagram labels require magnification.

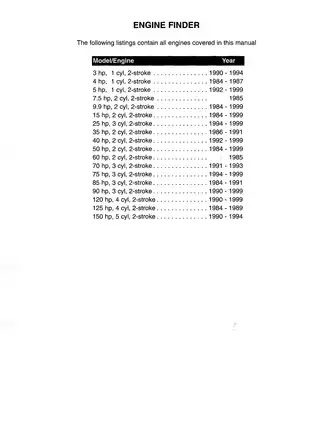

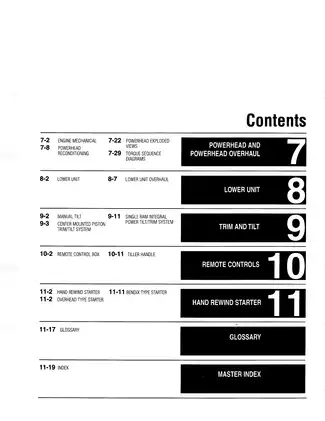

The download contains one printable English-language PDF with 322 pages, including the two contents pages and the Engine Finder page.
