Mercury/Force 3–150 HP Outboard Repair Manual, 1984–1999 (P/N 978-0-89330-055-5)

322 Pages • Printable PDF • 80.72 MB • Download

4.5starstarstarstarstar_half(4)
$13.58 Instant Download / No Shipping Fees
or

Credit/debit card, Apple Pay or Google Pay

30-day refunds for defective files or manuals not as described. Refund policy.

print
Save & print
Keep a copy on your device
lock
Secure Payment
Stripe

Mercury Models Covered & Key Technical Specifications

Models & Model Codes: 3 HP, 4 HP, 5 HP, 7.5 HP, 9.9 HP, 15 HP, 25 HP, 35 HP (357F8) (1988), 40 HP, 50 HP (50F4) (1984), 60 HP, 70 HP, 75 HP, 85 HP, 90 HP, 120 HP (1201F91) (1991), 125 HP, 150 HP

Sub-models / Variants: 1-cylinder, 2-cylinder, 3-cylinder, 4-cylinder, 5-cylinder, 2-stroke, Tiller Handle, Remote Control, Manual Start (M), Electric Start (E), Power Trim (PT), 20-inch Shaft (L), 25-inch Shaft (X)

Model Years: 1984–1999 (1984, 1985, 1986, 1987, 1988, 1989, 1990, 1991, 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999)

Serial Numbers: Powerhead exploded views and torque-sequence diagrams: 25 HP — 0E127700 and above; 40/50 HP — 0E138600 and above; 75 HP — 0E345000 and above; 90/120 HP — 0E093700 and above. 120 HP carburetor illustration — 0E288000 and above: idle air jet and sealing screw omitted.


  • Displacement range: 4.6 to 128.6 cu. in. (75.4 to 2107.8 cc)

  • Operating RPM range: 4000–6500 RPM

  • Ignition systems: Magneto, Thunderbolt, Prestolite, Capacitor Discharge Module (CDM)

  • Cooling system: Impeller pump and thermostat control where fitted

  • Firing order: 1-2, 1-2-3, 1-3-2, 1-3-2-4, 1-5-2-3-4

Mercury Manual Features & Selected Content Preview

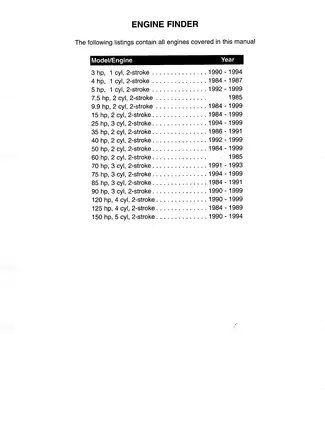

Built around its own Engine Finder, this Seloc Force Outboards repair manual covers Force-branded two-stroke outboards from 3 to 150 hp within the 1984–1999 production window. Coverage is model-specific, not a promise that every horsepower was sold in every year, and this is not a general Mercury outboard manual.

PDF Search, Bookmarks, and Wiring Detail

Search and diagram navigation: PDF text search is not available. Embedded bookmarks cover chapters and many subsections, although the Engine Finder bookmark opens the contents; the finder itself is on PDF p. 3. Small labels on the denser wiring plates require zooming.

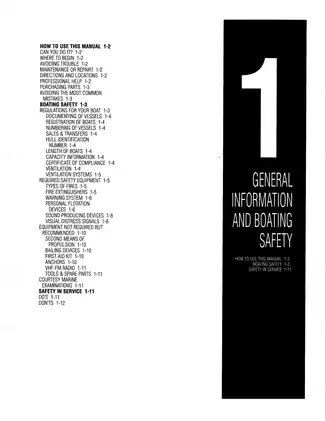

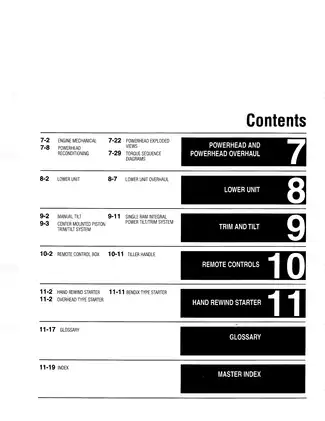

One printable English PDF contains 322 pages, including two contents pages, one Engine Finder page, 312 chapter pages, a two-page glossary, and a five-page index.


Force Powerhead, Gearcase, and Ignition Work

These selected coverage highlights outline the main repair areas. Other included topics range from battery testing to anode inspection.

  • 1- and 2-cylinder coverage: 3 hp (1990-1994), 4 hp (1984-1987), 5 hp (1992-1999); 7.5 hp (1985), 9.9 and 15 hp (1984-1999), 35 hp (1986-1991), 40 hp (1992-1999), 50 hp (1984-1999), and 60 hp (1985).

  • 3- to 5-cylinder coverage: 25 hp (1994-1999), 70 hp (1991-1993), 75 hp (1994-1999), 85 hp (1984-1991), and 90 hp (1990-1999); 120 hp (1990-1999), 125 hp (1984-1989), and five-cylinder 150 hp (1990-1994).

  • Powerhead repair: Step-by-step removal and installation, reed-valve service, compression testing, cylinder-block inspection and refinishing, piston and bearing inspection, and torque-sequence diagrams.

  • Fuel and tune-up work: Carburetor removal and overhaul, float and idle adjustments, fuel-primer and pump testing, fuel-pump overhaul, recirculation, and configuration-specific synchronization and timing.

  • Ignition and electrical diagnosis: Breaker-point magneto, Motorola distributor, electronic systems through 25 hp, Prestolite, Thunderbolt, and CDM diagnosis, plus charging and starter-circuit tests.

  • Cooling and lower-unit service: Water-pump and thermostat repair, warning-system checks, propeller service, gearcase leak testing, and separate lower-unit overhaul and shimming procedures.

  • Trim, controls, and starting systems: Manual tilt, center-mounted-piston and single-ram integral trim/tilt systems, hydraulic fault isolation and bleeding, remote controls, tiller handles, and overhead/Bendix rewind starters.

Written for Force owners tackling routine service and many repairs themselves, the manual explains procedures step by step while identifying machining and special-tool work better left to a professional shop.

Model Identification and Scheduled Service

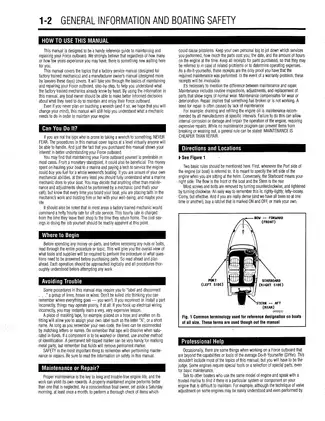

The identification section explains how 1984-1992 model numbers encode horsepower and year, why a leading special-model letter matters, and why 1993-1999 engines must be dated through their serial number. It decodes M, E, PT, L, and X designations for starting method, power trim, and shaft length.

The manual states that all covered Force outboards use premixed oil and were not factory-equipped with oil injection.

Maintenance schedules and checklists cover lower-unit lubricant changes, fuel filters and water separators, lubrication points, propeller inspection, battery service, winter storage, and spring commissioning. Tune-up sections add primary and secondary compression tests, spark-plug reading and gapping, ignition timing, and carburetor-linkage adjustments.

Powerhead and Gearcase Overhaul

Powerhead coverage extends to teardown planning, pistons, rings, connecting rods, crankshaft, bearings, flywheel timing marks, and factory timing-gauge use. Serial-specific exploded views distinguish the 1996-1999 25 hp and 1997-1999 40/50 hp builds, with separate later 75/90 hp and 120 hp plates.

Lower-unit chapters separately address units through 7.5 hp, 9.9 hp and larger split gearcases, 1984-1991 70-150 hp, 1991-1995 70-150 hp, and 1995-1999 70-120 hp. These divisions help owners select the applicable overhaul and shimming instructions before dismantling a gearcase.

L-Drive references are limited to identified 85/90 and 120/125 hp powerhead torque-sequence plates rather than a separate L-Drive service chapter.

The lower-unit notes warn that driving the driveshaft down on units without a pinion-retaining nut can damage the driveshaft bearing and cause premature gearcase failure.

Electrical Plates and Service Tools

Named electrical plates include 1984-1987 3/4 hp wiring, 1987-1998 5 hp breaker-point ignition, 1984-1998 9.9/15 hp magneto ignition, 1991-1995 70 hp Type II ignition, serial-specific 75/90 hp CDM wiring, and the Commander 2000 side-mount remote-control trim/start circuit.

Harness, connector, relay, and voltage-drop tests support fault tracing. Powerhead, carburetor, fuel-pump, lower-unit, tiller, and rewind-starter exploded views support component identification during repair.

Specified tools include crankshaft protector cap 91-24161, bearing-carrier puller T8948-1, seal drivers T8985 and T8947, and oil-seal driver C-91-31108. Reference data cover component torques, capacities, carburetor settings, ignition resistance and DVA values, wear limits, clearances, and gearcase shim charts.

During Motorola distributor work, the manual warns that turning the flywheel backward can damage the water-pump vanes.

Trim-System Diagnosis and Service Precautions

The center-mounted-piston trim/tilt section uses functional isolation tests to distinguish pump and cylinder faults; it explicitly provides no pressure-test specifications for that system. The single-ram section includes separate bleeding instructions for installed and bench-mounted units.

Before service, isolate ignition and battery power, control fuel vapors, support the tilted outboard with the specified safety device, and relieve trim-system pressure; rotating components and pressurized hydraulic fluid can cause serious injury.

A Preview of Sender and Gearcase Test Specifications

The cylinder-head temperature-sender test specifies switch closure at 180–200°F during heating and reopening at 160–180°F during cooling. These are overheat-warning switch test ranges, separate from the thermostat opening-temperature check.

For investigating water-contaminated gear oil, the lower-unit section lists 16–18 psi air pressure and 3–5 inches of vacuum. The two checks evaluate seal integrity in opposite directions.
