1986–1989 Suzuki DT90, DT100, DT115, DT140, DT150, DT150SS, DT175 & DT200 Outboard Motor Service Manual

Covers 1986–1989 Suzuki DT90, DT100, DT115, DT140, DT150, DT150SS, DT175, and DT200 outboards in three condensed service sections.

Text search, bookmarks, and wiring detail: OCR text search is available, but recognition errors affect some technical terms and diagram labels. Three bookmarks open the model sections. Small wiring labels require enlargement, and some remain difficult to read when zoomed in.

• Power head repair: Removal, disassembly, reassembly, piston and cylinder inspection, connecting rod wear checks, and component-specific tightening specifications.

• Fuel system: Mikuni carburetor synchronization, float and pilot screw adjustments, diaphragm fuel pump inspection, and intake reed valve service.

• Oil injection: Pump bleeding, delivery testing, control-rod adjustment, and oil flow sensor checks for the applicable models.

• Ignition and starting: CDI and coil tests, throttle valve sensor adjustment, wiring diagrams, peak-voltage data, and electric starter inspection.

• Cooling system: Water pump impeller service, thermostat inspection, and DT90/DT100 water flow sensor testing.

• Lower unit: Gearcase removal and overhaul, gear and dog clutch inspection, shim selection, shift linkage adjustment, and shaft end-play checks.

• Power trim and tilt: Pump pressure testing, DT90/DT100 tilt-cylinder leakage checks, system bleeding, and trim-motor service.

This manual suits mechanics familiar with multi-cylinder outboard repair who have electrical test instruments, measuring equipment, and the specified service tools.

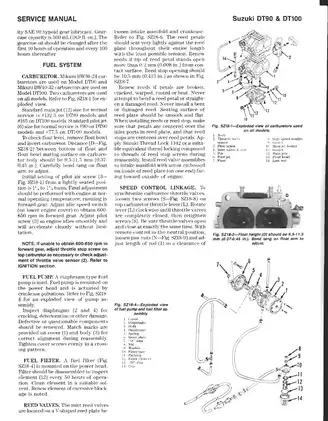

Fuel System and Oil Injection

The carburetor sections distinguish the two-carburetor DT90/DT100 arrangement, four-carburetor DT115/DT140 setup, and three-carburetor configuration of the six-cylinder models. Model-specific jetting and float-level data accompany the synchronization procedures.

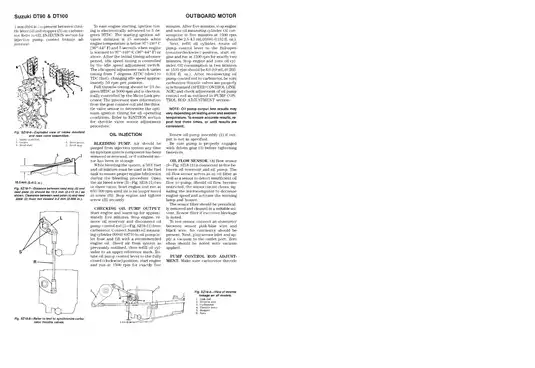

Fuel pump coverage addresses diaphragm condition and assembly alignment. Oil injection sections separate pump delivery tests from linkage adjustment and explain how the oil flow sensor interacts with the warning system.

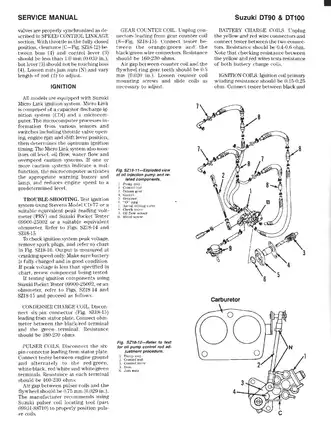

Ignition Diagnostics and Wiring

Electrical sections distinguish Pointless Electronic Ignition (PEI), integrated circuit ignition, and Suzuki Micro Link systems, including throttle valve switches versus sensors. Test data covers condenser charge coils, pulser coils, gear counter coils, battery charging coils, and ignition coils.

On DT115/DT140 models, a faulty or misadjusted throttle valve sensor can make the idle speed switch appear inoperative. The separate sensor and switch checks help identify that interaction before parts are replaced. The ignition troubleshooting section warns that unsuitable test methods can damage ignition components.

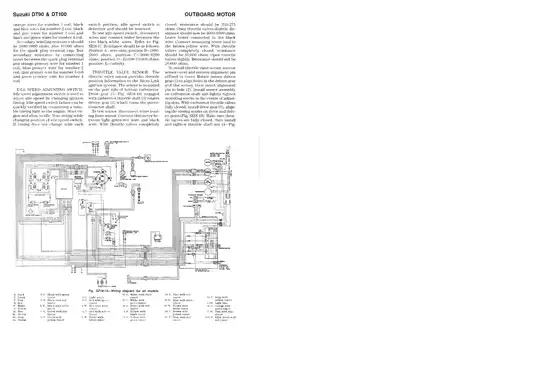

Visual references include the DT90/DT100 wiring diagram (SZ18-14), ignition peak-voltage chart (SZ18-16), and DT115/DT140 CDI module test chart (SZ17-12).

Engine Specification and Tolerance Data

The documentation provides piston ring end gaps, piston-to-cylinder clearances, crankshaft runout limits, and connecting rod wear checks. Torque tables and tightening-sequence illustrations accompany power head assembly instructions; the DT90/DT100 section specifies cylinder-to-crankcase alignment tool 09912-68720.

The DT115/DT140 section distinguishes removable connecting rod caps from press-together crankshaft assemblies. Press-together crankshaft disassembly requires experienced service personnel and proper equipment; a detailed crankshaft pressing procedure is outside these chapters' scope.

Electric starters: Exploded views and brush wear limits support starter repair. DT90/DT100 coverage adds commutator specifications, while the DT115/DT140 and six-cylinder sections include bench-testing notes.

Gearcase Setup and Power Trim

The DT90/DT100 shift assembly cross-section (SZ18-32) distinguishes long and extra-long shaft linkage settings. Gearcase setup includes pinion-depth shim selection with Suzuki gauge 09951-08720, forward/reverse gear backlash, and propeller-shaft end play.

Power trim coverage includes pressure-test connection drawings and an exploded view of the DT90/DT100 pump, valve body, and manifold (SZ18-38). The DT115/DT140 section distinguishes pump assemblies with different reservoir fill positions and fluid requirements.

The DT90/DT100 and six-cylinder trim diagrams identify left-hand manual-release-valve threads, helping avoid valve-thread damage from forcing the valve the wrong way.

Always observe standard marine shop safety protocols and wear appropriate personal protective equipment when handling fuel or high-voltage electrical components.

PDF Sections and Page Count

One printable English-language PDF contains 34 pages total: DT90/DT100, 12 pages; DT115/DT140, 12 pages; DT150/DT150SS/DT175/DT200, 10 pages. Each section's opening specification page is included in its count. There are no additional cover or supplement pages.
