1963–1980s Massey-Ferguson MF135, MF150, MF165 Tractor Shop Manual (I&T MF-27)

This I&T Shop Service manual, MF-27, published by Intertec, covers repair and service of 1963–1980s Massey Ferguson MF135, MF150, and MF165 tractors with Continental and Perkins engines.

Text search and diagram detail: Text search is limited because the existing OCR does not reliably recognize the technical pages. There are no embedded PDF bookmarks; navigation uses the printed, paragraph-based index. Small wiring-diagram labels require zooming.

• Engine repair: Cylinder-head service, piston and sleeve replacement, crankshaft and bearing inspection, valve timing, oil-pump service, and Lanchester engine-balancer overhaul.

• Fuel systems: Marvel-Schebler and Zenith carburetor overhaul, governor adjustment, diesel troubleshooting and bleeding, C.A.V. injector-nozzle testing, and injection-pump timing.

• Clutches and transmission: Single, dual, and split-torque clutch service, standard dual-range transmission overhaul, and Multi-Power clutch, control-valve, and pressure-testing procedures.

• Steering, axles, and brakes: Front-axle service, steering-gear overhaul, power-steering diagnosis, mechanical differential locks, planetary final drives, and shoe- and disc-brake repair.

• PTO and hydraulics: Conventional and independent PTO service, hydraulic-lift linkage synchronization, main and auxiliary pump overhaul, and pressure/flow testing.

• Electrical diagnosis: Four wiring diagrams, Delco-Remy ignition and starter specifications, and DELCOTRON alternator tests for the rotor, stator, and diodes.

Written for experienced mechanics, the manual uses brief workshop procedures and model-specific specifications rather than introductory repair instruction.

Engine, Fuel, and Cooling Systems

Separate sections cover Continental gasoline engines, Perkins gasoline engines, and Perkins diesels. Internal repair coverage extends through valve guides, camshafts, cylinder sleeves, crankshaft bearings, rear oil seals, and lubrication components. The Perkins gasoline section includes an exploded view and timing procedures for the Lanchester balancer and its oil pump.

The Perkins timing sections warn that turning the crankshaft and camshaft independently during timing-gear work can damage the pistons or valve train.

Carburetor coverage includes mixture and float adjustments as well as disassembly. The Diesel System Trouble-Shooting Chart relates starting, power-loss, and running symptoms to possible fuel-system faults. C.A.V. nozzle tests cover opening pressure, seat leakage, back leakage, and spray pattern.

Injection-pump scope: Removal, installation, timing, and idle adjustment are covered. Internal injection-pump and governor overhaul is referred to an authorized C.A.V. service station with specialist test equipment.

Cooling-system coverage includes radiator removal, thermostat arrangements, and model-specific water-pump exploded views with overhaul notes.

Clutches, Multi-Power, and PTO

The transmission sections distinguish early narrow and later wide planetary units by shift-fork shape and dimensions. This identification helps match replacement parts to the installed assembly before ordering.

A Multi-Power cross-section explains the hydraulic clutch and jaw-type overrunning clutch. Pressure-test coverage distinguishes tractors with independent PTO, auxiliary hydraulics, or both.

Single, dual, and split-torque clutches have separate service and adjustment procedures. The dual-clutch section warns that driving the release-lever retaining pins through the cover can damage the Belleville spring.

Independent PTO coverage extends to the multiple-disc clutch, hydraulic brake, regulating valve, and modulating valve. Conventional PTO sections cover output-shaft service and ground-speed gearing.

Chassis Variants, Steering, and Final Drives

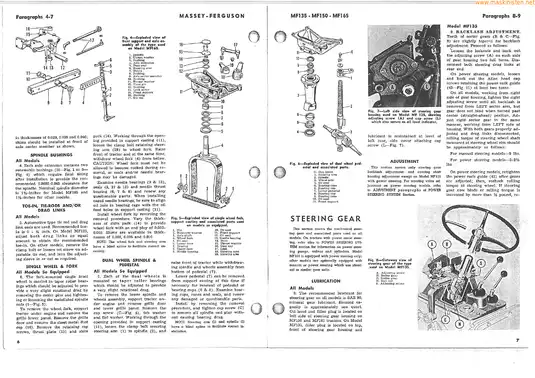

Front-axle procedures distinguish the standard-clearance MF135 from standard and high-clearance row-crop configurations of the MF150 and MF165. Power-steering coverage separates the MF135 gear-mounted assist from the MF150/MF165 cylinder arrangement, with Cessna and Wooster pump service.

Planetary final drives and disc brakes apply to all MF165 tractors and MF150 Row-Crop Diesels; other covered versions use straight-drive rear axles and shoe brakes. Two-pinion, straddle-mount three-pinion, and hybrid three-pinion planetary assemblies have separate identification, overhaul, and bearing-adjustment procedures.

Hydraulic Lift and Auxiliary Circuits

Hydraulic repair coverage includes the main piston pump, lift cylinder, rockshaft, draft-response dashpot, and internal draft and position-control linkage. Pressure Control versions receive separate adjustment and test coverage.

Auxiliary-pump sections distinguish Wooster, Plessey, Cessna, and Warner Motive designs, including dual-delivery and dual-section arrangements. Exploded views show pump components, remote-control valves, and the combining valve.

Special-tool references include hydraulic-lift setting gauges MFN-124 and MFN-970 and IPTO clutch assembly kit MFN 768.

Wiring Diagrams and Service Specifications

The four wiring diagrams distinguish early gasoline and diesel tractors from later MF135 Perkins gasoline and alternator-equipped diesel layouts. Electrical coverage includes distributor timing, generator/regulator specifications, starter tests, and alternator component checks.

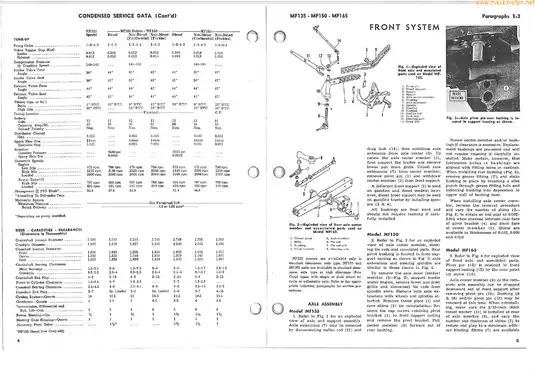

Detailed reference tables pull together dimensions, clearances, fluid capacities, timing data, wear limits, and component-specific torque settings.

Engine splitting and flywheel removal require secure support. Injector testing involves fuel capable of penetrating skin.

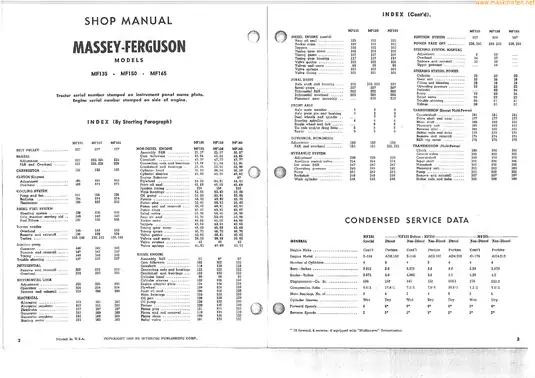

PDF Page Layout and Included Material

This printable English-language manual is supplied as a 50-page PDF: 47 two-page spreads plus three single pages comprising the front cover, introductory publishing page, and rear catalog cover. The index, service-data tables, and closing notes page are already included in that total.
