1995–2004 Toro Reelmaster 5300-D Mower Service Manual Set (PN 94819SL, Rev. C)

This service manual set combines Toro's Reelmaster 5300-D publication, P/N 94819SL (Rev. C), with the included Mitsubishi SL-series engine manual, January 1994 edition. It covers the 1995–2004 Reelmaster 5300-D with the S3L2 diesel and includes 2WD and Four-Matic 4WD systems. The engine reference also covers S3L, S4L, and S4L2 engines.

• Diesel engine repair: Engine removal and installation, internal disassembly, component inspection, reassembly, fuel-system bleeding, and injection-timing adjustment.

• Hydrostatic transmission: Sauer-Sundstrand M25 overhaul, shaft and trunnion seals, charge-pump service, relief-valve identification, and traction-neutral adjustment.

• Mowing hydraulics: Reel-drive pressure and flow tests, pump and motor efficiency checks, cartridge-valve service, lift-cylinder repair, and hydraulic flushing.

• Electrical diagnosis: Diagnostic ACE testing, ECU inputs and outputs, interlock verification, stored-fault retrieval, TurfDefender troubleshooting, and wiring schematics.

• Axles, steering, and brakes: Dana GT-20 differential overhaul, Four-Matic rear-axle service, steering-valve and cylinder tests, wheel bearings, and brake-shoe replacement.

• Cutting units: Reel removal and bearing replacement, bedknife-to-reel adjustment, backlapping, roller setup, height-of-cut adjustment, and cut-quality troubleshooting.

Written for service technicians, this manual suits turf-equipment shops equipped for hydraulic testing and diesel engine work.

S3L2 Engine, Fuel, and Cooling Repairs

The engine material goes beyond removal and installation. It covers cylinder-head bolt sequences, valve-stem and guide inspection, valve-seat angles, timing gears, crankshaft bearings, pistons, and assembly clearances. Cooling and lubrication sections include thermostat testing, water-pump inspection, and oil-pressure checks. Reference tables include U.S. Customary and metric fastener torques.

Fuel-system coverage includes injector testing, injection-pump and governor service, fuel priming, and timing adjustment. Injection-quantity measurement after replacement of plungers, barrels, or delivery valves requires a Pump Tester Cam Box.

Toro directs operating, routine maintenance, and operator adjustment instructions to the separate traction-unit and cutting-unit operator's manuals.

Hydraulic Testing and M25 Transmission Overhaul

The Hydraulic Schematic and Traction Forward flow diagram explain the relationship between the closed-loop traction drive, charge circuit, and auxiliary systems. Separate tests address front mow/lift pressure, rear mow pressure, reel-drive flow, and pump or motor efficiency.

The manual calls for electrical diagnosis before hydraulic testing. That helps distinguish an electrical control fault from an apparent pump, motor, or lift-circuit problem before components are removed.

Transmission repair includes internal disassembly and reassembly, with the reverse relief valve's machined groove used for identification. Cartridge-valve notes explain how bent stem tubes or excessive tightening can cause spool binding. Before loosening hydraulic fittings, follow the manual's pressure-relief precautions; escaping fluid can penetrate the skin.

Wiring by Serial Number and TurfDefender Diagnosis

The Wiring Schematic provides connector pin assignments and interlock circuits for the model-specific serial breaks listed above. Stored-fault retrieval requires the ECU software introduced from S/N 70001; earlier machines may have updated software.

Diagnostic ACE tool 85-4750 uses the RM5100-D/5300-D overlay 85-4760 and TurfDefender overlay 94-5386. Diagnostic ACE Display Functions shows the input/output indicators used in testing.

TurfDefender coverage separates valve and communication faults from false alarms associated with low oil level, system air leaks, or unusually hard left turns.

Differential, Four-Matic Axle, and Steering Service

Dana GT-20 repair includes bearing service, pinion setup, ring-gear backlash, and gear-contact pattern interpretation. The Four-Matic chapter explains over-running clutch operation and provides driveshaft and rear-axle repair procedures.

Power Steering Schematics accompanies the TRW HGF Hydraguide valve tests. Steering-cylinder leakage checks, axle and spindle bushings, brake-cable adjustment, and drum-brake service are also covered.

Reel, Bedknife, and Cut Quality Adjustments

The cutting-unit chapter connects cut-quality symptoms with reel condition, bearing adjustment, roller alignment, and bedknife contact. It includes lift-arm down-pressure adjustment and reel-lapping procedures. Excessive leverage during bedknife adjustment can distort the adjustment-screw mounting plate or break the bedbar, a specific caution covered in this section.

Examples of Engine and Reel Adjustment Data

These are a few of the adjustment specifications included in the engine and cutting-unit sections.

For the installed S3L2, no-load settings are 1700 rpm at idle and 3200 rpm at maximum speed, each with a +50/-0 rpm tolerance. The Mitsubishi reference specifies 0.25 mm clearance for both intake and exhaust valves with the engine cold.

Reel-bearing drag is specified at 4–7 in-lb with the bedknife clear of the reel.

Text Search, Bookmarks, and PDF Contents

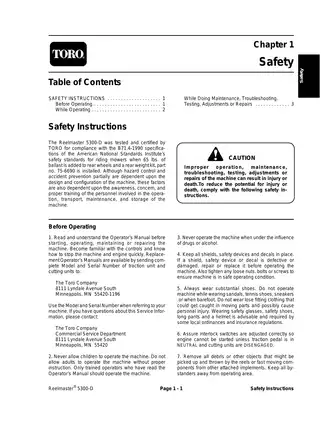

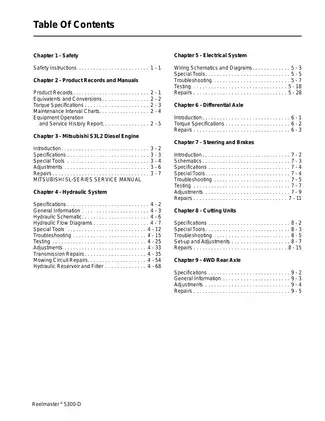

Finding text and reading schematics: Text search works in the Toro sections, but the Mitsubishi engine pages and some schematic labels are not searchable. Embedded bookmarks link to chapters and major subsections in both publications. Small wiring labels require zooming.

Supplied as one printable, English-language PDF with 406 pages total, divided as follows:

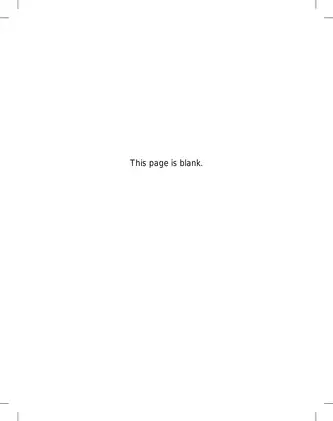

Both title pages, the Toro back cover, and 18 blank or footer-only pages are already included in these totals.
