Suzuki APV / Arena / Van / Pickup Service Manual 2004 (P/N 99500B61J00N01E)

This Suzuki APV factory service manual (P/N 99500B61J00N01E) covers vehicle maintenance, diagnosis, and major component repair. Its mechanical engine chapter applies to G15 and G16 engines, while the engine-management, emission-control, scan-tool, and DTC material is expressly labeled for the G16 engine. That distinction matters if the vehicle has a G15.

Searchable PDF and Chapter Navigation

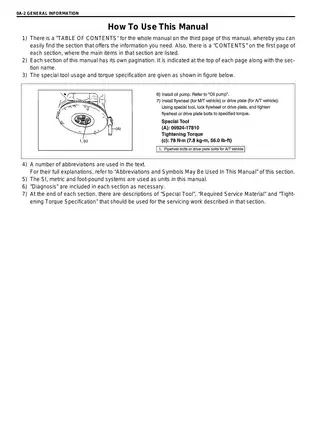

Text search and circuit detail: Searchable PDF text and extensive section bookmarks support navigation through the repair chapters. Legacy bookmarks for the foreword and overall contents open at the beginning of Section 0A. Small wiring labels and connector numbers are best read with magnification.

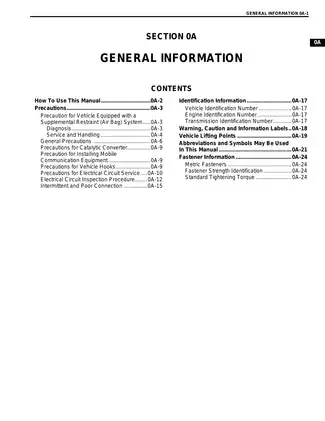

The RAR download contains one printable, English-language, 1,158-page PDF, including four otherwise blank pages. The file starts at Section 0A; a separate cover, foreword, and overall table of contents are not included.

Engine, Drivetrain, and Vehicle System Repairs

These selected repair topics outline the manual’s coverage rather than reproduce its full contents. Further examples include headlight aiming and rear-window defogger wire repair.

• Engine mechanical: Compression, vacuum, oil-pressure, and valve-clearance checks; timing-belt service; cylinder-head and valvetrain repair; and piston, crankshaft, bearing, oil-pump, and cylinder-block overhaul.

• G16 engine diagnosis: EFI and emission fault tracing with DTC tables, fail-safe logic, scan-tool data, ECM terminal checks, reference waveforms, fuel-pressure tests, and injector-circuit diagnosis.

• Transmission and clutch: Manual gearbox shaft and synchronizer repair, clutch and release-mechanism service, and automatic transmission diagnosis, planetary assemblies, clutch packs, valve-body service, and solenoid testing.

• Steering and running gear: Manual rack-and-pinion repair, power-steering pressure tests and bleeding, front struts, rear leaf springs, hubs, wheel bearings, propeller shafts, and rear differential setup.

• Brake hydraulics: Master-cylinder and caliper repair, front disc and rear drum service, pressure testing, bleeding, parking-brake adjustment, and BPV/LSPV inspection procedures.

• Heating and A/C: Heater and blower diagnosis, front and optional rear A/C service, refrigerant recovery and charging, compressor removal, and magnet-clutch inspection and replacement.

• Body electrical and restraints: Lighting and instrument diagnosis, power windows and locks, immobilizer checks, body dimensions, windshield and panel work, corrosion protection, and SRS post-accident inspection.

The depth and required equipment make this manual best suited to professional technicians and experienced mechanics who are comfortable with precision measuring tools, pressure testing, electrical diagnosis, and major component teardown.

Engine Service, Cooling, and Fuel Systems

Normal- and severe-use maintenance schedules accompany step-by-step procedures for timing-belt replacement, cylinder-head disassembly, engine removal, and internal overhaul. Exploded layouts, inspection limits, bearing-selection data, and final checks support work beyond routine servicing.

The timing-belt section warns that excessive independent rotation of the camshaft and crankshaft can cause piston-to-valve contact.

Cooling coverage includes thermostat testing, radiator and water-pump replacement, flushing, refilling, and air-venting procedures. Fuel-system work extends to tank removal, fuel-pump service, fuel-line connections, and pressure-regulator and injector checks.

Fault Isolation and Workshop Equipment

The G16 diagnostic material connects symptom charts, live data, electrical measurements, and component tests. Together, these references support fault isolation before major assemblies are dismantled or components replaced.

Charging and cranking chapters include starter performance tests, internal starter inspection, and generator disassembly. The Engine and Emission Control System Diagram and Ignition System Wiring Circuit Diagram show the relationship between control components and their circuits.

OEM tool callouts include compression-gauge component 09915-64510-001, camshaft-pulley holder 09917-68221, flywheel holder 09924-17811, differential dial gauge 09900-20607, and timing light 09930-76420. Component-specific torque tables, capacities, electrical test data, adjustment specifications, and wear limits accompany the procedures.

Transmission Testing and Differential Setup

Automatic transmission diagnosis includes line-pressure, stall, road, and time-lag tests, plus TCM circuit checks. Internal repair extends to the oil pump, overdrive assemblies, forward and direct clutches, planetary gears, and output shaft.

Differential coverage includes side-bearing and pinion-shim selection, bearing preload, backlash measurement, and tooth-contact checks. The assembly cautions explain why excessive pinion-bearing preload requires a new collapsible spacer rather than simply loosening the nut.

Steering, Body Systems, and Wiring Limits

Manual steering-gear teardown and power-steering-pump overhaul are described separately. The power-steering gear box is serviced as an assembly; the manual expressly prohibits its internal disassembly. The P/S Fluid Flow Diagram supports hydraulic diagnosis.

The A/C System Wiring Circuit Diagram, Immobilizer Control System Wiring Circuit Diagram, and air-bag System Wiring Diagram provide system-specific electrical references. Complete harness, connector, fuse, relay, ground, and vehicle-circuit coverage requires the separate Section 8A Wiring Diagram Manual, which is not included.

Immobilizer coverage identifies the scan-tool modes used for key registration and ECM/module replacement. Detailed tool operation and registration instructions require the separate SUZUKI scan tool Operator’s Manual.

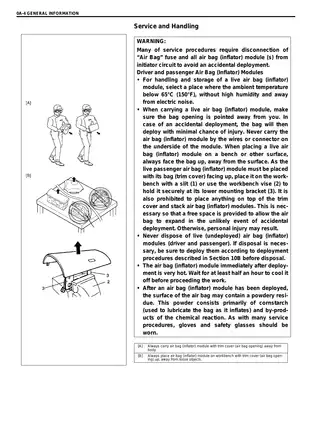

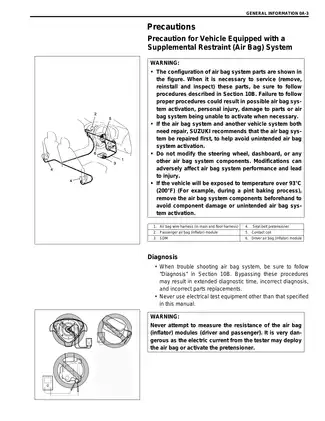

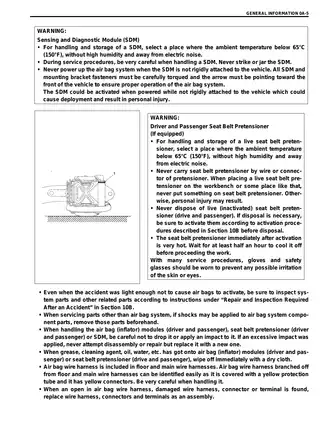

Follow the specified lifting points and battery-isolation procedures before repair work. For SRS-equipped vehicles, the manual specifies an isolation waiting period and restricts service on or around air-bag components and wiring to an authorized Suzuki dealer.

A Preview of Valve-Lash and Oil-Pressure Specifications

For G15/G16 valve-lash inspection, the cold specifications are 0.13–0.17 mm intake and 0.23–0.27 mm exhaust with coolant at 15–25°C (59–77°F). Separate hot-engine clearances are also provided.

The engine oil-pressure check specifies at least 330 kPa at 4,000 rpm after the engine reaches normal operating temperature.
