2006 Suzuki DF150/175 Outboard Motor Factory Service Manual (P/N 99500-96J00-01E)

Suzuki's DF150/175 factory service manual covers the 2006 (K6) outboards in T and Z configurations. This is the September 2005 pre-production issue, with separate service chapters for standard- and counter-rotation lower units.

• Powerhead repair: Power-unit removal and installation, cylinder-head overhaul, crankshaft and piston inspection, and timing-chain and balancer-chain service.

• Engine control: Self-diagnostic codes, sensor and ECM circuit checks, idle-air control, multi-stage induction testing, and DF175 variable valve timing.

• Fuel system: Fuel-pressure and residual-pressure tests, injector inspection, and fuel vapor separator disassembly with high-pressure fuel-pump replacement.

• Electrical service: Electric starter motor overhaul, battery charging tests, isolator-function diagnosis, ECM terminal layouts, and model-specific wiring diagrams.

• Lower units: Standard- and counter-rotation gearcase overhaul, water-pump impeller replacement, gear shimming, backlash checks, and propeller-shaft thrust adjustment.

• Mid unit and trim: Driveshaft housing, oil pan and mounting-bracket service, plus power trim and tilt disassembly, motor inspection, and air bleeding.

Written for technicians who already have the basic knowledge and skills to service Suzuki outboards, this manual assumes access to suitable tools and workshop equipment.

Powerhead Maintenance and Timing

General information covers engine identification, gasoline recommendations, break-in protocols, and propeller selection charts. Periodic maintenance procedures address fuel-line inspections, filter replacement, oil-change reminder resets, and valve tappet adjustment using the shim selection charts.

Internal repair coverage extends to valve guides and seats, camshaft inspection, piston-ring measurements, crankshaft bearing selection, and counter-balancer servicing. Torque tables, wear limits, and assembly illustrations accompany the procedures.

VVT and non-VVT engines: Separate timing-chain and balancer-chain procedures distinguish the DF175's VVT system from the non-VVT DF150. The DF175 material explains oil control valve operation; its VVT actuator is a non-repairable assembly. Overtightening the intake camshaft sprocket bolt can damage that actuator.

The maintenance chapter also warns that turning the powerhead in the wrong direction can damage the water-pump impeller.

Engine-Control Diagnosis and Electrical Testing

Detailed sections explain fuel-injection control, ignition timing, and the vacuum-operated multi-stage induction system. Vacuum-tank, check-valve, and VSV tests accompany the induction-system description.

Fault isolation: Self-diagnostic flash patterns, circuit-voltage tables, resistance checks, and peak-voltage tests support the no-start and unstable-idle troubleshooting charts. These charts help distinguish sensor or wiring faults from fuel-delivery problems before components are replaced.

ECM circuit testing uses the specified 26-pin and 34-pin test cord, 09930-89340. The ECM itself cannot be bench-tested separately from the engine wiring harness.

Fuel-injection and ignition-timing charts explain signal relationships. The electrical sections add fuse circuit diagrams, starter motor inspection limits, and charging-system checks for the standard single-battery and optional dual-battery arrangements. Wire-routing and fuel/water hose-routing views support reassembly.

Fuel-System Service and Procedure Limits

Fuel vapor separator service includes float-height adjustment, needle-valve inspection, suction-filter checks, and fuel-pressure regulator testing. Injector procedures cover electrical checks, removal, seal replacement, and leakage inspection. The low-pressure fuel pump is replaced as a complete assembly.

O₂ feedback: The manual explains the system and its temporary oxygen sensor, but refers the actual fuel-mixture-check procedure to the separate Suzuki Diagnostic System Operation Manual. That operation requires SDS software, hardware, and a battery-powered computer.

Gearcase, Mid-Unit, and Trim Repair

The lower-unit chapters distinguish the gear and bearing arrangements of right-hand and left-hand rotation models. Their shimming procedures include tooth-contact assessment, backlash adjustment, propeller-shaft thrust checks, and gearcase leakage testing.

Mid-unit work covers the driveshaft housing, oil pan, mounts, steering and swivel brackets, and water-pressure valve. Power trim and tilt coverage includes cylinder and piston inspection, shock valves, PTT motor overhaul, relay testing, and air bleeding both before and after installation.

Follow the manual's safety precautions for pressurized fuel and supporting the raised outboard during trim-and-tilt work.

A Preview of Pressure Checks and Flywheel Torque

These examples represent a small selection of the manual's inspection and assembly data.

For both models, engine oil pressure is listed at 400–600 kPa at 3,000 r/min and normal operating temperature. Cylinder compression is 1,100–1,700 kPa with the engine warm and throttle fully open during cranking. Both pressure ranges are guidelines, not absolute service limits.

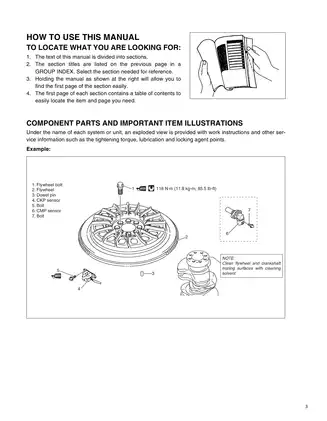

Flywheel installation specifies 118 N·m for the retaining bolts, alongside the required locking compound and dowel-alignment precautions.

PDF Search, Bookmarks, and Page Breakdown

Search and diagram detail: The main service text and wiring-diagram labels are searchable; cover lettering and the publication-imprint page are not reliably searchable. Embedded bookmarks provide navigation to five document parts. Small wire-color codes and connector labels on the full wiring diagrams require zooming.

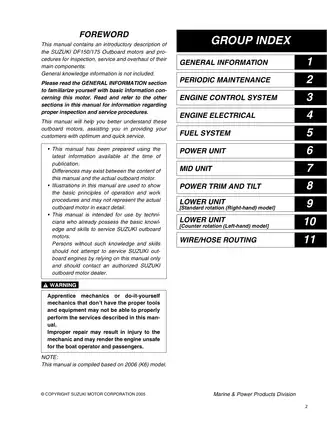

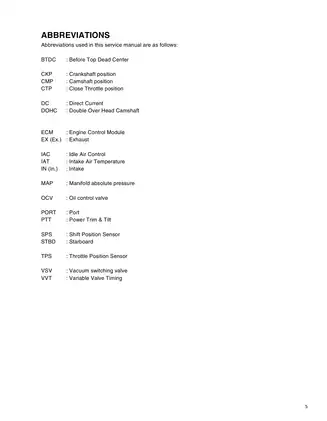

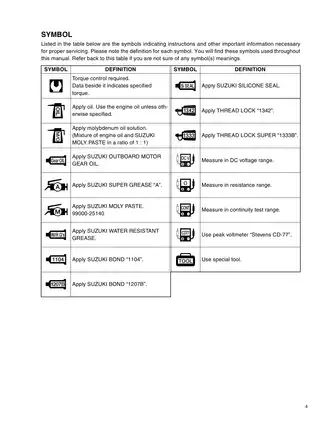

One printable English PDF download contains 434 pages: 427 pages across 11 service chapters, four introductory pages, two cover pages, and one publication-imprint page. All are included in the total.
