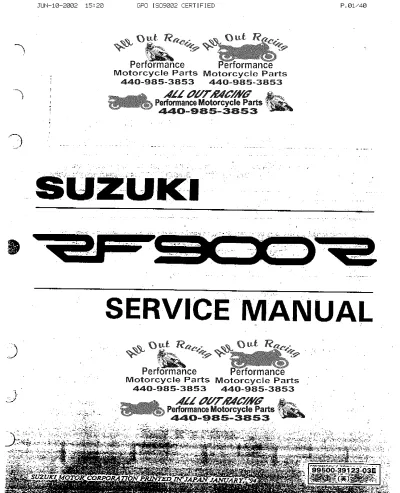

1994–1997 Suzuki RF900R, RF900RR, RF900RS, RF900RT, RF900RV Service Manual (P/N 99500-39123-03E)

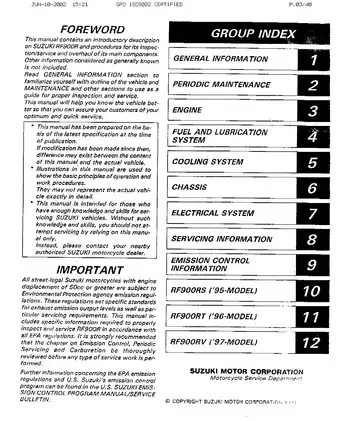

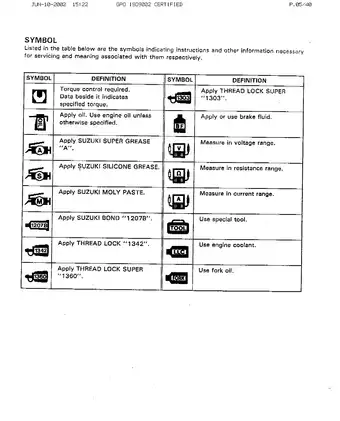

This Suzuki RF900R service manual covers the 1994–1997 RF900RR, RF900RS, RF900RT and RF900RV models, combining the base workshop text with model supplements. Publication P/N 99500-39123-03E carries a fourth-edition colophon dated February 1997; the first edition was January 1994. An appended Canadian (E-28) parts-catalog extract adds exploded views, part numbers and application notes.

• Scheduled servicing: Maintenance intervals, tappet-shim selection, compression and oil-pressure checks, drive-chain inspection, and brake and hydraulic-clutch bleeding procedures.
• Engine inspection: Cylinder-head, piston, crankshaft and connecting-rod measurements, bearing-selection charts, cam-chain tensioner checks, and component-specific torque specifications.
• Fuel and cooling: MIKUNI carburetor servicing and synchronization, fuel-pump tests, lubrication-flow diagrams, thermostat inspection, and water-pump seal work.

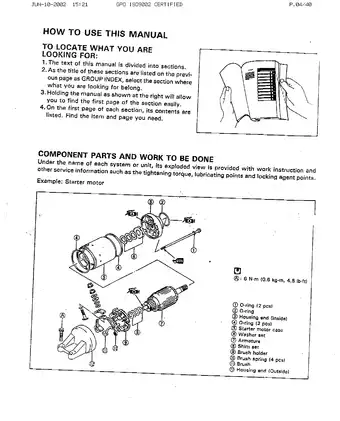

• Electrical diagnosis: Charging, starter-motor and ignition tests, signal-generator checks, interlock troubleshooting, wiring diagrams, and instrument-connector illustrations.
• Chassis repair: Front-fork and steering service, wheel and brake inspections, rear-linkage work, chassis geometry, and cable and hose routing.
• Model supplements: RF900RS clutch changes and RF900RT/RF900RV revisions, including starter-clutch details, generator-damper inspection, and model-specific service data.

Intended for technicians who already have the knowledge and skills to service Suzuki vehicles, this manual assumes workshop competence and does not teach basic mechanical repair.

Engine Measurements, Clutch Revisions and Assembly Limits

Piston-to-cylinder clearance, piston-ring, valve-stem and camshaft-journal inspections are supported by wear limits and crankshaft/connecting-rod bearing-selection tables. Market-specific valve timing and separate cylinder-head fastener specifications distinguish applications that should not be treated alike. Transmission cross-sections show shaft and gear relationships, while exploded views identify shift-fork and starter-clutch components.

The RF900RS supplement distinguishes its coil-spring clutch from the base diaphragm-spring assembly, helping match inspection information and replacement parts to the correct design. Camshaft-holder installation notes explain how uneven tightening can damage the head or holder thrust faces. The oil pump is treated as a replacement assembly rather than an internally serviceable unit.

Printed engine pages 3-24–3-27 and 3-53–3-54 are absent from this file, leaving gaps in valve work and engine reassembly.

Carburetor, Cooling and Electrical Fault Finding

Carburetor exploded views, float-system inspections and synchronization instructions sit alongside vacuum and fuel-hose routing. A specific carburetor caution explains that compressed air can damage the diaphragm if it remains installed during cleaning. Cooling-system coverage includes pressure testing, fan-switch and temperature-gauge checks, thermostat inspection, and water-pump sectional views.

Charging and ignition troubleshooting charts connect symptoms with component tests. The starter/side-stand interlock schematic helps distinguish a switch or relay fault from a starter-motor problem. California evaporative-emission diagrams and PAIR-system routing address equipment differences between market versions.

Chassis Service and E-28 Parts Identification

Fork, steering-stem, brake-caliper and rear-linkage illustrations support chassis service. Routing drawings show brake lines, clutch hoses and wiring placement. The rear shock absorber is inspected and replaced as a unit; internal rebuilding is not covered.

The parts extract separates model-specific assemblies and records engine- and frame-number changes relevant to ordering. It omits some figures named in its own index. Its exploded views identify parts; assembly instructions come from the service text. Follow the manual’s safety precautions and specified tools for workshop work.

Selected Valve, Cooling and Oil-Pressure Data

The following values are a small selection from the maintenance and service data. Intake tappet clearance is 0.10–0.20 mm with the engine cold; the shim-selection charts relate measured clearance to the replacement shim.

The base cooling-system capacity is 2,450 mL total, including the reservoir. This is a fill-capacity reference, not a wear limit. Oil-pressure testing specifies more than 300 kPa and less than 600 kPa at 3,000 rpm with oil at 60°C, making the test conditions essential when comparing readings.

PDF Navigation, Diagram Detail and Included Pages

Text search and diagram detail: PDF text search and embedded bookmarks are unavailable. Printed section headings provide navigation. Small wiring labels need enlargement, and some faint or merged labels remain difficult to read; an additional near-blank diagram impression is unusable.

One printable, primarily English-language 458-page PDF contains 377 pages of service-manual material and 81 pages of the E-28 parts-catalog extract, which also has a French preface. These totals already include the main cover, three introductory pages, model supplements, publication page, five blank pages, 29 repeated service pages and one faint diagram impression.
