Yamaha V Star 1300 & Stryker 2011–2013 Service Manual (P/N LIT-11616-24-48)

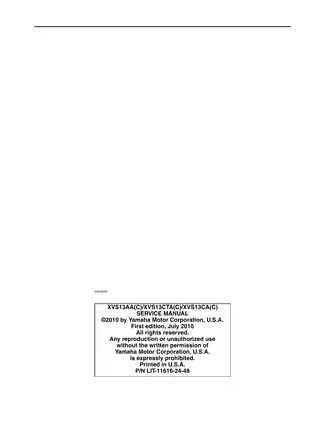

Yamaha factory service manual P/N LIT-11616-24-48, also numbered 3D8-28197-13, first edition July 2010. It covers the 2011–2013 XVS13AA(C), XVS13CTA(C), and XVS13CA(C) USA and California configurations: V Star 1300, V Star 1300 Tourer, and Stryker.

PDF Search, Bookmarks and Wiring Detail

Text access and diagram labels: Searchable text extends through the service chapters and rear wiring diagrams. Embedded bookmarks cover the main chapters and many subsections, although the appended wiring sheets are not all individually bookmarked. Small wire-color codes and connector labels on the full-sheet diagrams require zooming.

The download is one printable, 536-page PDF, including 8 pages of front matter, a 521-page main section with chapter dividers and diagram keys, 2 rear blank pages, 1 back cover, and 4 appended wiring-diagram sheets.

Engine Teardown, Chassis Service and FI Diagnosis

This is a selection of the covered work, rather than a complete contents list. Other topics include instrument-display functions and battery charging procedures.

• Engine repair: Engine removal and installation, camshaft and timing-chain service, cylinder-head repair, valve and guide inspection, piston checks, and crankcase separation.

• Clutch and transmission: Clutch disassembly, primary-drive inspection, shift-shaft service, transmission shaft and gear checks, and shift-fork and shift-drum installation.

• Wheels and brakes: Front and rear wheel service, static balancing, brake-disc inspection, caliper and master-cylinder disassembly and assembly, and hydraulic bleeding.

• Suspension and belt drive: Fork teardown and reassembly, steering-head adjustment, rear shock and linkage inspection, swingarm removal, and model-specific belt adjustment.

• Fuel system: Fuel and sub-fuel tank service, pump checks, injector inspection, throttle-body checks, fuel-pressure testing, and throttle-position-sensor adjustment.

• Cooling system: Radiator and cap checks, thermostat testing, coolant replacement, and water-pump disassembly, seal installation, and assembly.

• Electrical diagnosis: System circuit diagrams, ECU self-diagnosis, diagnostic mode, fault-code troubleshooting, and component tests for sensors, switches, relays, ignition, and charging equipment.

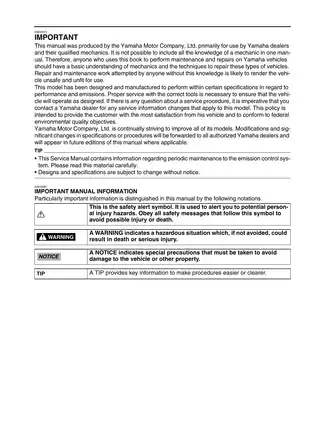

Yamaha wrote this manual primarily for dealers and qualified mechanics; it assumes basic mechanical knowledge and familiarity with vehicle repair techniques.

Engine Repair and Workshop References

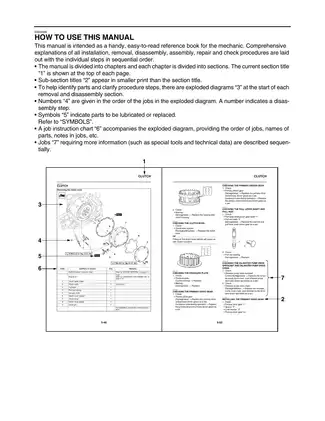

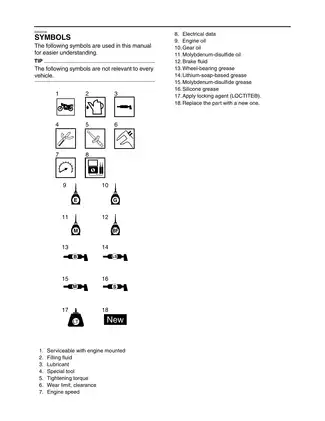

Sequential procedures, exploded views, and job charts connect component removal with inspection and reassembly. That structure supports repairs beyond routine maintenance, with replacement notes, lubrication points, tightening specifications, and wear limits alongside the relevant work.

Internal engine coverage includes rocker arms, valve seats and springs, piston rings, the generator and starter clutch, balancer gears, oil pump, crankshaft, and connecting rods. Bearing-selection information links crankshaft and connecting-rod markings to replacement big-end bearing sizes.

Camshaft identification: The front camshaft assembly carries a punch mark; the rear assembly does not. Yamaha’s installation cautions address the risk of damage or incorrect valve timing if the crankshaft is turned during camshaft installation.

Special-tool references include valve spring compressor YM-04019. The lubrication references include the engine oil lubrication chart and diagrams showing the oil passages.

Chassis Differences and Belt Setup

Separate chassis procedures distinguish the AA/CTA dual-front-disc arrangement from the CA single-front-disc layout. XVS13CTA(C) coverage also includes windshield, sidebag, and backrest removal and mounting information.

Belt adjustment: The AA/CTA and CA procedures distinguish the applicable checking conditions and adjustment hardware. The specified rear drive belt tension gauge YM-03170 supports the measurement method, while separate cable-routing maps identify the correct layout for each model family.

Fork service identifies adjustable seal driver YM-01442. Rear suspension coverage includes shock removal, linkage bearings, connecting arms, and the relay arm; the nitrogen-charged shock is treated as an assembly for inspection and replacement, not internal rebuilding.

Fuel Injection and Throttle-Body Checks

The fuel chapter covers the rollover valve, fuel cock, pump body, intake manifold, and California canister plumbing. Fuel-pressure testing identifies adapter YM-03176, while synchronization procedures reference the Vacuummate YU-44456.

Throttle-body scope: Removal, passage cleaning, inspection, synchronization, and sensor adjustment are covered. Yamaha specifically states that the throttle body should not be disassembled.

Cooling-System Inspection and Repair

Cooling-system diagrams show hose and coolant routing. The repair sections add thermostat operation checks, radiator-cap pressure testing, and water-pump seal and impeller work, with inspection criteria for the associated housings and hoses.

Follow the manual’s precautions for pressurized fuel and hot coolant, brake-system work, and secure vehicle support.

Electrical Fault Isolation and Wiring

Ignition, electric starting, charging, lighting, signaling, cooling, fuel injection, and fuel-pump circuits have dedicated diagnostic coverage. The starting circuit cut-off explanation connects the neutral, clutch, and sidestand inputs with starter operation.

FI troubleshooting: Fault-code tables relate displayed symptoms to diagnostic checks, wiring faults, component tests, and reinstatement methods. This supports tracing a fault through connectors and wiring as well as checking the sensor or actuator named by the code.

Electrical checks extend to ignition coils, stator, rectifier/regulator, lean-angle sensor, fuel sender, radiator fan, and related switches and relays. The appended full-sheet wiring diagrams cover both model families and are specifically labeled 2011.

Periodic Service and Handling Cautions

The service chapter includes valve adjustment, ignition-timing checks, compression testing, oil and coolant changes, and clutch and throttle-cable adjustment.

The air-filter notes explain why compressed-air cleaning can damage the disposable oil-coated paper element, and why running without it can accelerate engine wear and affect throttle-body synchronization. Bearing-handling cautions also identify surface damage caused by spinning bearings with compressed air.

A Preview of Valve and Oil-Pump Inspection Data

The valve-adjustment section specifies cold-engine clearances, at room temperature, of 0.09–0.13 mm for intake valves and 0.14–0.18 mm for exhaust valves.

For oil-pump inspection, inner-to-outer rotor-tip clearance is specified as less than 0.12 mm, with a service limit of 0.20 mm. The same section provides housing and side-clearance checks and relief-valve inspection criteria.
