Hyster H40J/H50J/H60JS Forklift Service Manual Set, 1981–1986 (P/N 899798)

These publications combine repair procedures, operating descriptions, maintenance instructions, and specifications for Hyster H2.00J (H40J), H2.50J (H50J), and H3.00JS (H60JS) lift trucks. Shared engine, ignition, mast, instrument, and electrical sections also cover other Hyster families; match the procedures and diagrams to the equipment installed on the truck.

PDF Search, Bookmarks, and Diagram Detail

Search and diagram access: Most repair text is searchable, but many tables and diagrams, the Vista repair PDF, and the gauge text are not. Most files have named bookmarks; the capacities PDF and schematic packet have none, and Vista repair bookmarks are unnamed. Some circuit lines and small labels in the packet’s gas/LPG and diesel schematics remain faint or difficult to read when enlarged.

The ZIP download contains 32 printable English PDFs totaling 550 pages: engine, fuel, cooling, and electrical material, 248; powertrain, axle, brakes, and frame, 97; hydraulics, steering, and masts, 171; maintenance and reference material, 34. Included in that total are eight covers, two contents pages, four notes pages, and one blank page.

Engine, Drivetrain, and Lift-System Service

The following selected coverage highlights show the main workshop subjects rather than a complete contents list. Additional topics include fuel and hydraulic tank repair and warning-decal replacement.

• Engine and fuel repair: GM and Perkins internal engine service, diesel injection-pump timing, injector checks, Rochester carburetor repair, and IMPCO CA 50/CA 100 LPG service.

• Transmission and differential: Single-speed powershift overhaul, two-speed oil-clutch transmission repair, differential setup, Monotrol adjustment, stall testing, and circuit-pressure diagnosis.

• Hydraulics and steering: Single- and tandem-gear pump repair, pump flow tests, main control valve service, steering axle and control-unit overhaul, and bleeding.

• Brakes and drive axle: Wheel-cylinder and master-cylinder repair, automatic adjusters, parking-brake linkage, hub-bearing adjustment, and brake bleeding.

• Masts and frame: Conventional and Vista mast service, carriage and fork removal, chain and roller adjustment, lift/tilt cylinder repair, and counterweight removal.

• Electrical diagnosis: Delco starter service, alternator and regulator checks, applicable GM HEI diagnosis, wiring diagrams, wire-code charts, and symptom-based electrical flowcharts.

• Maintenance and cooling: Periodic inspections, lubrication, wheel and tire procedures, radiator cleaning, thermostat checks, troubleshooting tables, capacities, and fastener specifications.

The depth is best suited to experienced technicians and repair shops with lifting equipment, electrical meters, hydraulic pressure/flow test gear, and engine/transmission service tools.

Mast, counterweight, LPG, brake, and pressurized-hydraulic repair involves suspended loads, fuel vapor, stored pressure, and brake-dust hazards. These jobs require the factory blocking, lifting, ventilation, and isolation practices described in the files.

Engine, Fuel, and Cooling Work

The GM section covers the cylinder head and valve train, timing gears and camshaft, lubrication system, pistons, crankshaft, rear seal, and flywheel. Whole engine/transmission removal is supplied separately in the frame section.

Perkins procedures extend to cylinder liners, injection-pump removal and timing, injector checks, fuel bleeding, and cold-start equipment. The fuel sections distinguish the Rochester gasoline carburetor from the IMPCO LPG filter/valve, vaporizer, and carburetor assemblies.

Cooling material covers radiator restrictions, thermostat operation, water-pump checks, exhaust leakage into coolant, and radiator cleaning. GM tools J-23523 and J-34995 and Hyster counterweight lifting eye P/N 317196 are identified in the repair material.

Transmission Variants and Hydraulic Supply

Step-by-step procedures cover transmission disassembly and assembly, clutch packs, planetary components, ring-and-pinion contact, bearing preload, and backlash. The powershift section distinguishes transmission S/N prefixes T34 and T38, whose friction discs, separator plates, and clutch-pack arrangements differ. That distinction helps identify the correct assembly information before replacement parts are selected.

Monotrol and direction-lever circuits, test-port checks, clutch-apply pressure, inching-spool operation, and torque-converter testing support diagnosis of drive complaints. The torque converter is replaced as a unit when its internal one-direction clutch is defective.

The hydraulic material separates oil-clutch and powershift circuits, explains their common lift/steering/transmission oil supply, and describes the F3-series relief-cartridge change. Pump-drive procedures add sprocket alignment and bearing shimming; steering instructions distinguish early and late cylinder mounts and the transmission-specific pressure-check arrangements.

The transmission must not hang on the torque converter or oil-sump tube during separation, or those parts can be damaged.

Mast, Carriage, and Brake Detail

Conventional mast material addresses standard, full-free-lift, three-stage, and four-stage designs. Vista repair instructions cover two- and three-stage mast teardown, side-shift carriage repair, sequence valves, and header-hose roller adjustment.

Chain inspection, roller and strip-bearing shimming, cylinder leak checks, and tilt-stroke synchronization are covered alongside carriage adjustment. Mast shims must remain identified by position; excessive grease can make load rollers slide and wear flat.

Brake instructions include wheel cylinders, automatic adjusters, parking-brake linkage, master-cylinder service, hub-bearing adjustment, and bleeding. Frame procedures also address the removable counterweight arrangement used on Stevedoring Trucks.

Electrical Tests and Circuit References

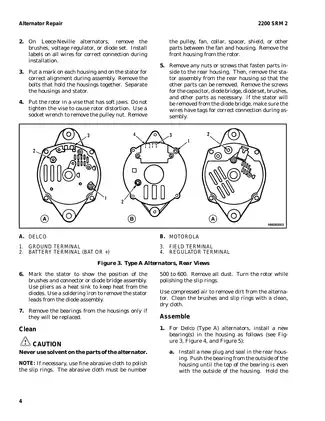

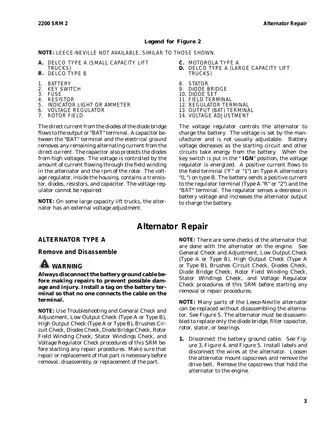

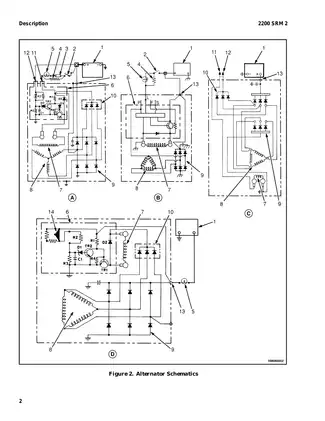

Alternator procedures cover brushes, stator and rotor windings, diode bridges, regulators, and low/high output checks. Separate publications address Delco starter/solenoid repair and applicable GM HEI distributor, sensing-coil, module, ignition-coil, and timing diagnosis. Instrument material adds meter and sender checks and replacement procedures.

Diagram references include Electrical Schematic — Gas/LPG Engine, Electrical Schematic — Diesel Engine, Hydraulic Schematic Diagram, powershift test-port layouts, steering pressure-check drawings, and Vista sequence-valve diagrams.

The general electrical PDF contains 13 symptom-based diagnostic flowcharts and 28 legacy schematic figures. Those figures cover several other Hyster families and must not be treated as interchangeable wiring for every truck in this listing.

Examples of Vista Chain and Roller Limits

The Vista repair publication specifies lift-chain replacement at 3% elongation or greater compared with a new chain. Its inspection material includes a chain-wear scale illustration and a table for checking a measured span of links.

For Vista mast load rollers, the maximum roller-to-weldment clearance is 0.8 mm (0.030 in.) at the point of tightest fit. The adjustment material connects that limit with shim placement and parallel mast alignment.
