Hyster J30XMT, J35XMT, J40XMT – 1996 Forklift Service Manual Set (P/N 897076)
451 Pages • ZIP Download: 19 Printable PDFs • 24.66 MB
Hyster Models Covered & Key Technical Specifications
Models: J30XMT (J1.60XMT), J35XMT (J1.80XMT), J40XMT (J2.00XMT); J30XM, J35XM, J40XM (shared electrical-system information and battery-size references); E1.60XM, E1.80XM, E2.00XM (battery-size references)

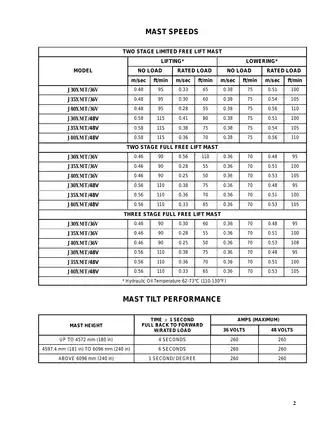

Sub-models / Variants: 36V, 48V, Two Stage Limited Free Lift, Two Stage Full Free Lift, Three Stage Full Free Lift
Transaxle variants: S1 and S2, for the XMT models listed above
Controller variants: XMT models — EV-100LXD dual-traction cards (LXDX, LXDT); EV-100LXP lift-pump card (LXPX)
Model Year: 1996
-
Traction motor weight: 31.3 kg (69 lbs)
-
Hydraulic motor weight: 34 kg (75 lbs)
-
Steering motor weight: 13.6 kg (30 lbs)
-

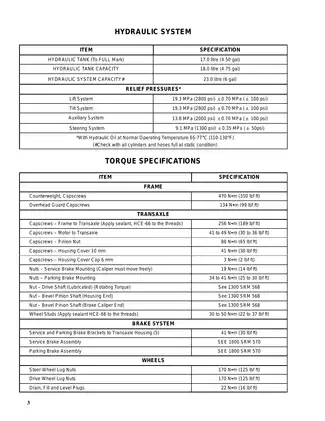

Hydraulic system capacity: 23.0 liters (6 gal)
-
Lift drift speed: 12.7 mm (0.5 in) per minute
-
Tilt drift speed: 0.5 degree per minute
-
Wheel stud torque: 30 to 50 Nm (22 to 37 lbf ft)
-
Steer/Drive wheel lug nut torque: 170 Nm (125 lbf ft)
-
Maximum supported battery weight (J35XMT, optional battery compartment): 2650 lb (1205 kg)
Hyster Manual Features & Selected Content Preview
| Publication | Pages |
|---|---|
| Capacities and Specifications — J30XMT, J35XMT, J40XMT; includes battery-size references labeled J30XM/E1.60XM, J35XM/E1.80XM, and J40XM/E2.00XM | 8 |
| DC Motor Maintenance — all electric lift trucks; P/N 897076, 620 SRM 294 | 27 |
| EV-100LXT/LX/LXP/LXD, EV-200LXT/LX Motor Controller & Diagnostic Hand Set — shared controller publication with dedicated XMT connection and setting tables; P/N 897409, 2200 SRM 460 | 88 |
| Lift Cylinders — shared component publication; P/N 910119, 4000 SRM 135 | 34 |
| Maintenance Schedule — XMT truck maintenance and inspection procedures | 37 |
| Metric and Inch (SAE) Fasteners — all models; P/N 910442, 8000 SRM 231 | 11 |
| Schematics and Diagrams — J30–35–40 XMT | 23 |
| Tilt Cylinders — shared component publication with XMT applications; P/N 910102, 2100 SRM 103 | 17 |
| Brake System — XMT service and parking brakes | 16 |
| Electrical System — shared SitDrive/XM electrical information, controls, and circuit-board checks | 29 |
| Frame — XMT frame components and battery-size specifications | 12 |
| Large Batteries — lead-acid battery selection and maintenance | 14 |
| Main Control Valve — lift, tilt, and auxiliary valve service | 13 |
| Mast Repair — shared mast publication with XMT-specific header-hose arrangements | 55 |
| Mast Description and Operation — mast and carriage designs | 8 |
| Steering Housing and Steering Control Unit — shared XM/XMT section, 11-page version | 11 |
| Steering Housing and Steering Control Unit — shared XM/XMT section, 16-page version | 16 |
| Steering System — pump, cylinder, trunnion, and wheel-hub service | 16 |
| Transaxle — J30XMT/J1.60XMT, J35XMT/J1.80XMT, J40XMT/J2.00XMT; S1 and S2 assemblies | 16 |
The truck-specific sections work alongside shared component publications. For example, the mast description explains the lifting sequence, while the separate repair section covers disassembly, setup, and troubleshooting.
Coverage limits: Model references in shared sections and battery tables do not establish complete truck repair coverage for every listed model. The controller publication covers diagnosis, settings, card replacement, and connector service; internal card repair and complete power-component repair require separate service resources, including the referenced EV-100 and EV-200 repair sections.
PDF Search, Bookmarks, and Diagram Detail
Search and navigation: Body-text search is available in 17 files, although some headings and illustration labels are not searchable. Schematics and Diagrams has limited searchable text; the controller PDF has no embedded text search. The controller file has unlabeled page bookmarks, and Capacities and Specifications has none. Other files have named bookmarks, with some inaccurate destinations in Maintenance Schedule and Electrical System. Small wiring labels require zooming; the checked wire codes, terminals, and pin numbers remain readable when enlarged.
The ZIP contains 19 printable PDFs totaling 451 pages, with individual file counts shown above. That total includes five front covers, one back cover, fourteen blank pages, six notes pages, and one additional nontechnical page.
Electric Drive, EV Controls, and Mast Service
The following selected coverage outlines the main workshop subjects rather than reproducing the full contents. Further topics include disabled-truck towing and hydraulic-tank inspection and preparation for repair.
-
DC motors: Step-by-step disassembly and assembly, brush replacement, commutator inspection, and field and armature testing for traction, hydraulic-pump, and steering-pump motors.
-
S1/S2 transaxles: Drive-unit removal and internal repair, with bearing-preload, gear-backlash, and tooth-contact setup procedures for the two transaxle series.
-
Brakes: Service-caliper and master-cylinder overhaul, parking-brake linkage work, hydraulic bleeding, adjustment, and checks of the electrically released option.
-
Steering: Control-unit overhaul, steering-cylinder resealing, gear-pump repair, trunnion service, and wheel-hub bearing adjustment.
-
Masts and hydraulics: Limited- and full-free-lift mast repair, carriage and roller adjustment, lift-chain service, cylinder overhaul, header hoses, and sectional control-valve repair.
-
EV controller diagnosis: Hand-set connection and operation, stored status codes, function settings, circuit checks, and traction- and pump-card terminal references.
This material is suited to trained lift-truck technicians familiar with electrical testing and equipped to handle heavy truck components.
Motor Inspection and Repair Limits
The Brush Wear Replacement Guide and commutator-condition tables distinguish normal surface appearance from damage requiring service. Exploded views identify motor components, and the procedures extend to brush-spring inspection, commutator surfacing, and stoning.
Motor-timing procedures are excluded from the DC motor section. Brush-holder timing requires specialist equipment and training; the electrical tests help determine whether a motor needs specialist rebuilding.
Drive Units, Brakes, and Steering Variants
Transaxle identification: S1 assemblies were used through mid-1996, with S2 assemblies fitted afterward. Their components and traction motors are not interchangeable, and both drive units must be from the same series. The identification table helps establish which repair procedure applies before components are selected.
The Gear Tooth Contact Pattern illustration supports gear setup, and the S1 backlash procedure calls for tool 5051462-01. The S2 assembly instructions warn that pressing or hammering the ring gear into position can damage the gear or intermediate shaft.
Parking brakes: The electrically released arrangement has separate mechanical and electrical coverage and excludes J1.60XMT, J1.80XMT, and J2.00XMT applications. Its procedures identify brake-release tool 2310010 and spring-compression tool 2308410.
The steering section distinguishes pumps for the two battery-voltage configurations and prohibits mixing their internal components.
EV Settings and Electrical Fault Isolation

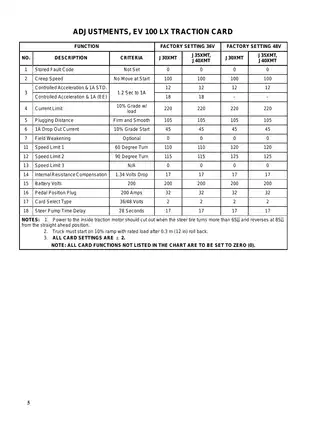

The XMT controller tables distinguish EV-100LXD dual-traction controls from EV-100LXP lift-pump controls. Separate metric-model tables provide Performance Standard and Energy Saver settings.
Status-code charts connect symptoms to affected circuits, likely causes, and electrical checks. Accelerator inputs, seat and direction switches, contactors, SCR circuits, motor-temperature signals, and brush-wear signals are covered. This gives technicians a circuit-based route for investigating loss of traction or lift-pump operation.
Truck controls: Electrical coverage distinguishes MONOTROL operation from a direction lever with accelerator pedal, and Standard from Premium instrument panels. Wiring Schematic with SCR Hydraulics and Arrangement, Electrical Control with Contactor Hydraulics show the different pump-control layouts.
Control-card replacement and connector service include pin-removal tool 897408. Steering-angle and lift-pump board test points support fault isolation; failed boards are replaced as assemblies.
Masts, Cylinders, and Valve Controls
Cylinder sections cover teardown, seal installation, leak checks, and lowering-control valves. Mast-specific information adds tilt-cylinder stroke equalization, side-shift carriage repair, and header-hose routing and tension.
Mast and Carriage Adjustments illustrates roller and clearance setup. The Main Control Valve Schematic explains the open-center circuit, check valves, and tilt counterbalance operation.
Valve service also covers relief-pressure checks and optical-interrupter vane alignment. Incorrect control-valve adjustment can cause pump-motor or fuse failure.
Battery Care and Periodic Maintenance
Battery coverage addresses size and minimum-weight selection, capacity ratings, specific-gravity testing, normal and equalizing charges, and charger troubleshooting. Battery repair requires separate specialist training and equipment.
Maintenance procedures cover forks, lift chains, tires, wheels, hydraulic oil and filters, and EE equipment checks. Frame information includes the counterweight, overhead guard, seat restraints, and hydraulic tank.
Reference tables provide relief pressures, motor and brush-spring specifications, wheel-stud torques, fluid capacities, wear limits, metric/SAE fastener data, and electrical test thresholds.
Observe the manual’s battery-disconnection, capacitor-discharge, and mast-restraint precautions for the work being performed.
Examples of Transaxle Capacity and Backlash Data
The transaxle specification table lists gear-oil capacities of 1.3 liters (0.34 gal) per S1 transaxle and 1.18 liters (0.313 gal) per S2 transaxle. Each drive unit has its own oil supply.
For S1 gear setup, the backlash check specifies 0.28–0.41 mm (0.011–0.016 in) at the measuring point on the specified special tool. This belongs to the S1 procedure and is not a general clearance specification for both series.
